SKODA - WD 160CZ-MIL-SKO-1962-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
SKODA WD 160 Milling Machine

Show in original language

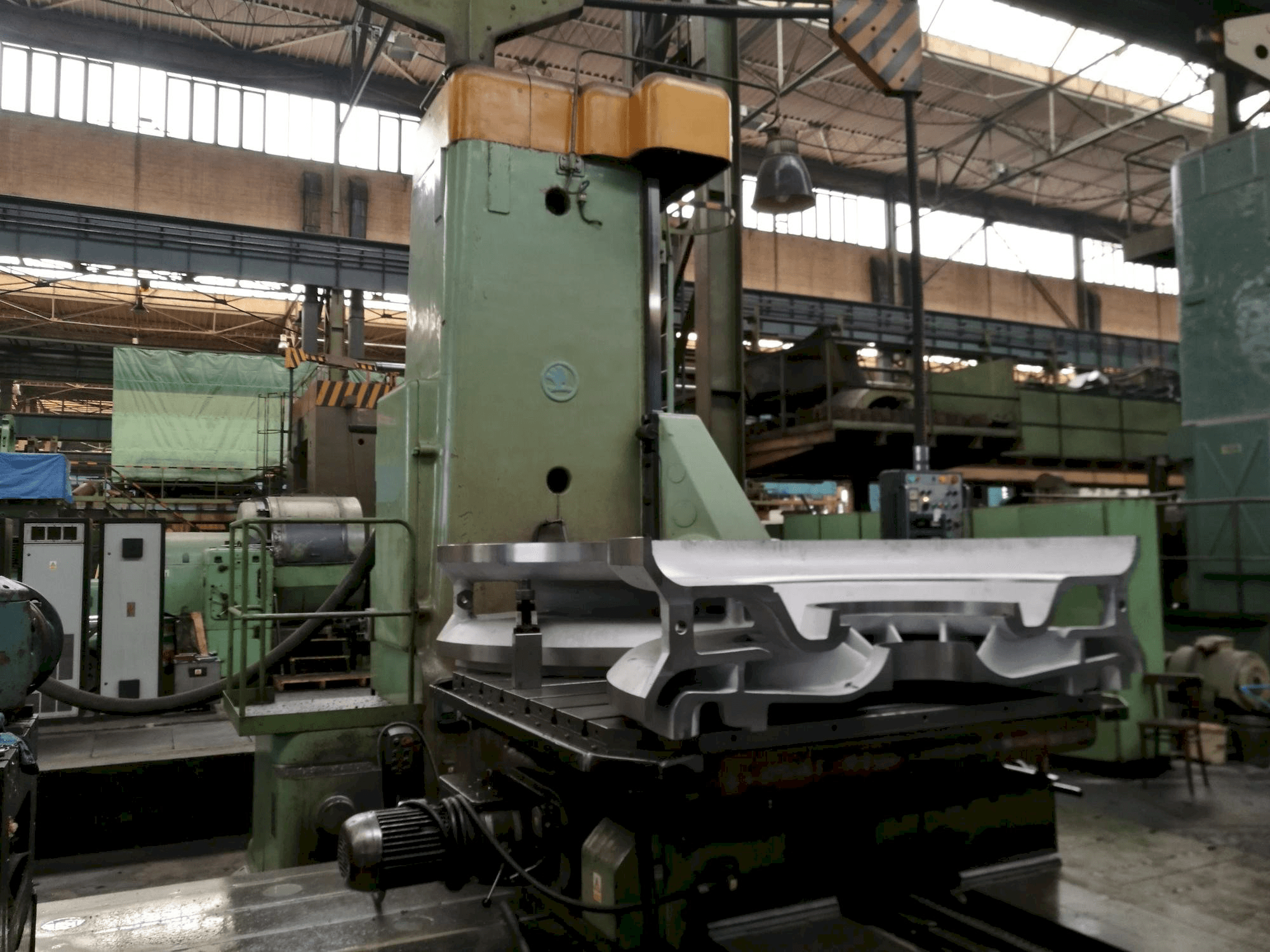

This SKODA WD 160 Milling Machine was built in 1962 in the Czech Republic. During the past, this reliable machine has mainly worked with steel and stainless steel for the production of machinery parts. It presents excellent conditions, as it has been regularly maintained. Must be noted that a Skoda E 20 (2000 x 2000 mm) rotary table is included as additional equipment.

Overview

brand: SKODA
year: 1962
MODEL: WD 160
application type: Other Machine Tools
Location: Czech Republic
machine type: Boring Machine (Metal)
availability: Sold

Technical Information - SKODA WD 160

General Data

Machine weight: 50000 kg

Main drive

Spindle speed range: 800 rpm 1/MIN

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 1600 mm

Workpiece

Workpiece weight: 20000 kg

Table

Outer length: 1400 mm
Outer width: 1400 mm

Additional Equipment

- SKODA E 20 (2000 X 2000 MM) ROTARY TABLE

Additional Information

Machine history

Material type: Steel, stainless steel
End product: Machinery parts
Industries: Press machinery

Machine Benefits

Technical Machine Benefits:
- - Metric 100 spindle taper
- - Ram movement 1250 mm
- - Spindle diameter 160 mm
- - Ram size 450 x 450 mm
- - Torque 15700 nm
- - Main motor power 35 kw
- - Tesla digital read-out
Qualitative Machine Benefits:
- - Good condition, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
