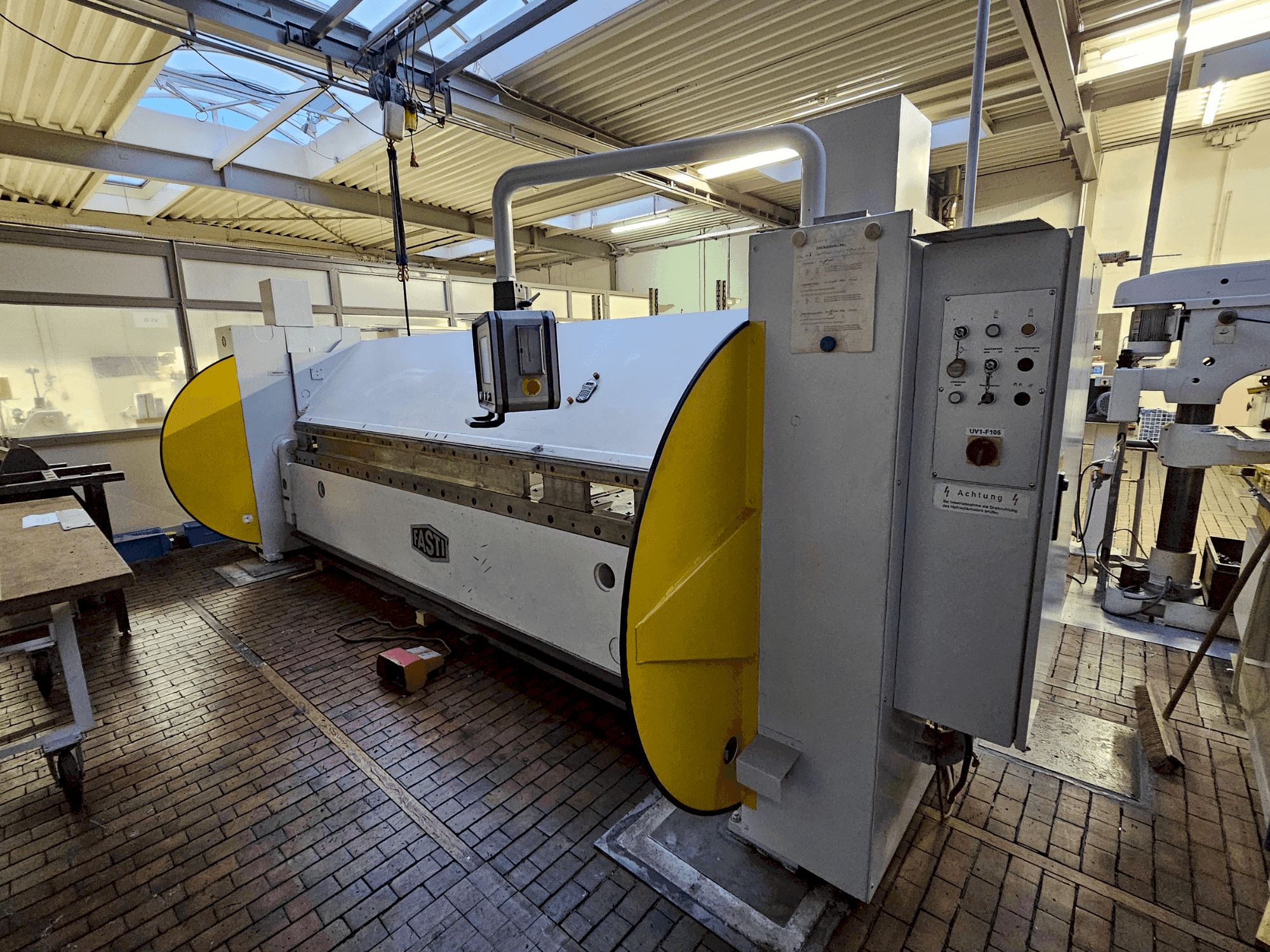

SCHRODER-FASTI - 215-40-4DE-SHE-SCH-1994-00001

Additional Equipment

• - Flat rail: 18 mm wide
• - Centre rail: 45°
• - Reinforcement rail: 36 mm
• - Stroke of the upper beam: 350 mm
• - Adjustability of the motorised bending beam: 80 mm
• - Adjustability of the motorised lower beam: 80 mm
• - Motor power for bending beam adjustment/lower beam adjustment: 0.75 kW

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max sheet thickness: 4 mm at tensile strength 400 n/mm²
  • - Equipped with motorized adjustments for bending and lower beams
  • - High clamping pressure speed of 30%
  • - Robust and adjustable bending capabilities

Extra information

• - Reference dimension: 2024.7 mm largest dimension: 2000 mm smallest dimension: 16 mm smallest dimension 2: 46 mm finger size: 150 mm finger stop position: 155.9 mm dead zone: 0.5 mm AC parameters and additional calibration and speed settings provided for precision and efficiency
