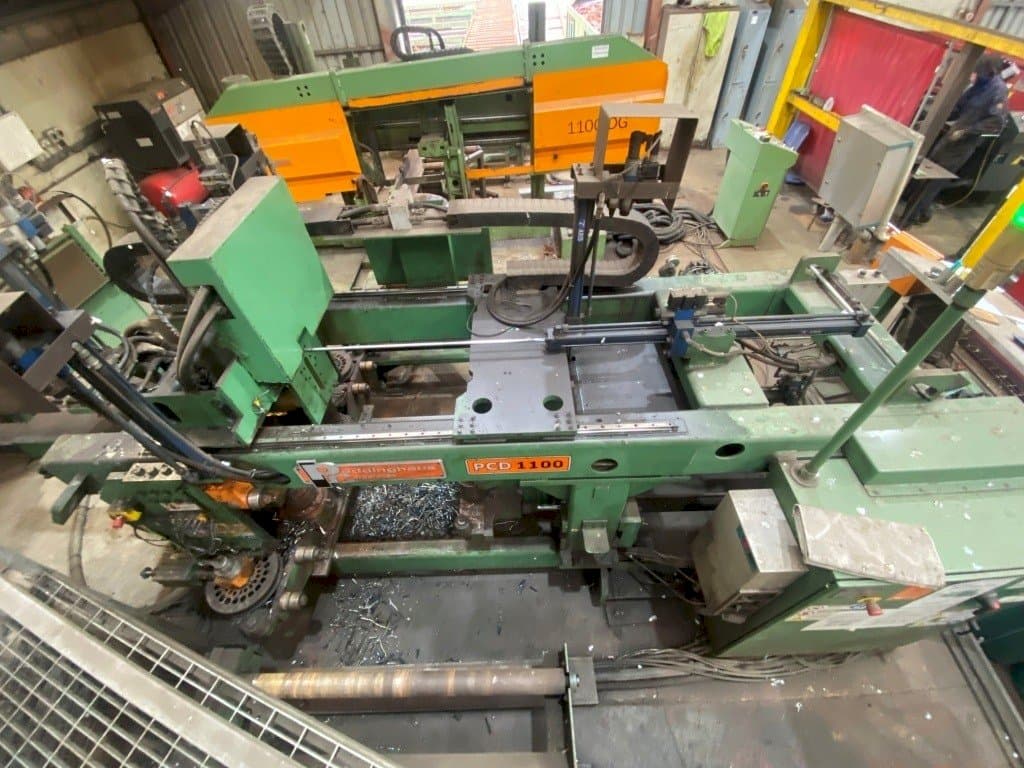

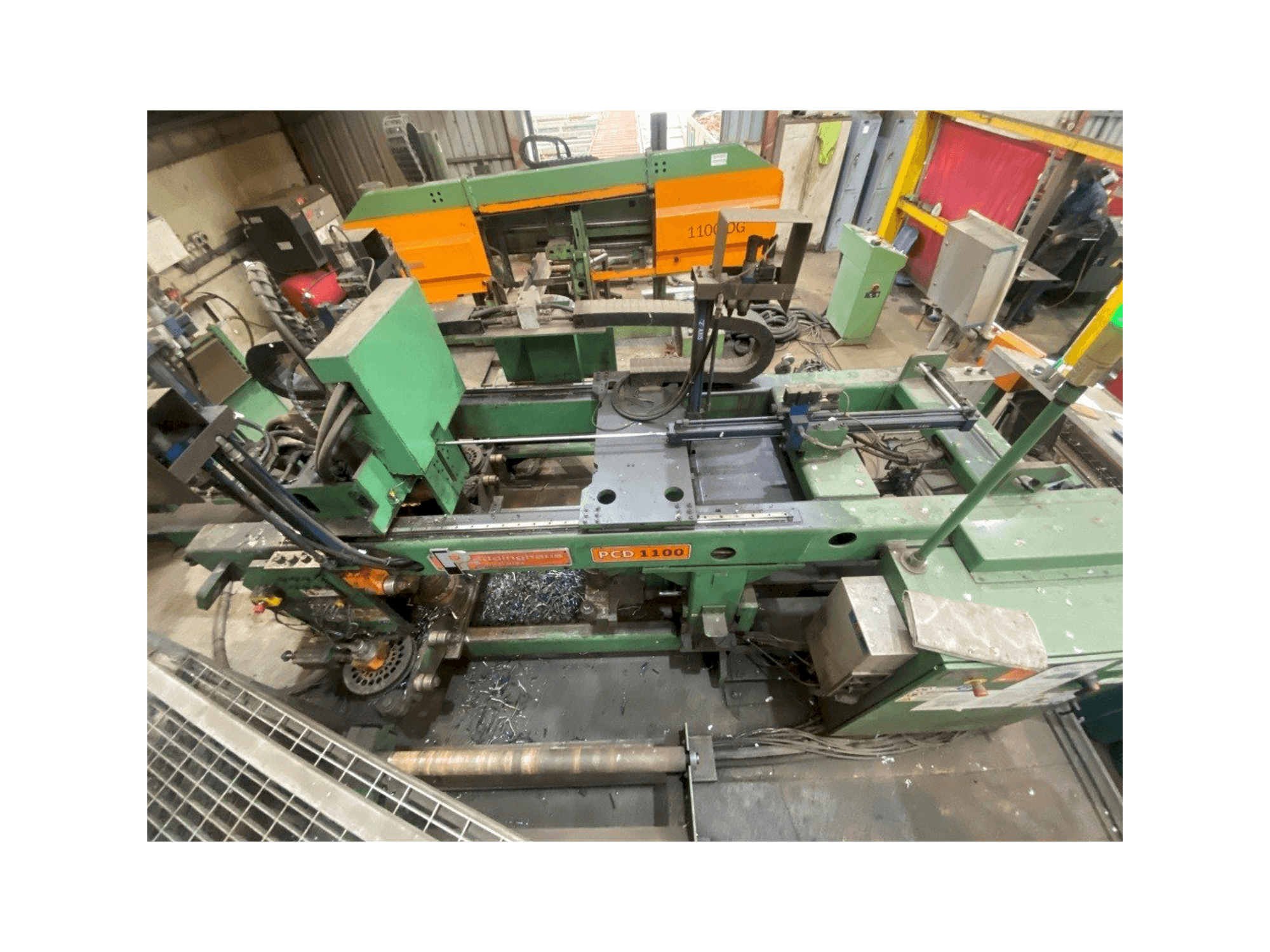

Peddinghaus PCD 1100 Drilling machine

Show in original language

This Peddinghaus PCD 1100 Drilling machine was built in 2007 in the United States and has 18000 hours. It is equipped with a Siemens Sinumerik 840D control unit and has 4 axis. The machine has a spindle speed of 850 rpm.

Overview

brand: Peddinghaus
year: 2007
MODEL: PCD 1100
production hours: 18000
application type: Other Machine Tools
Location: Ireland
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: SIEMENS

Technical Information - Peddinghaus PCD 1100

General Data

Machine weight: 4800 kg

Control Unit

Model: Sinumerik 840D
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Spindle speed range: 850 1/MIN
Spindle motor power: 10 kW (13.5HP)

Workpiece

Workpiece x: 1100 mm
Workpiece z: 460 mm
Workpiece weight: 8165 kg

Tools

Max tool diameter: 26 mm

Media

Main electronic connection: 400 V
Internal cooling: Yes

Additional Information

Machine history

Material type: Structural steel
Material thickness: 6 mm
End product: Structural steel
Industries: Structural steel industry

Machine Benefits

Technical Machine Benefits:
- - 3 spindle drilling - no turning of parts
- - Powerful machine
- - Drill only - saw & conveyors not included
- - Max profile width: 1,100 mm (43"), max profile height: 460 mm (18")
- - Max part weight: 8165 kg
- - Min profile width: 76 mm (3"), min profile height: 76 mm (3")
- - X axis feedrate: 40m/min
- - Min thickness: 3 mm (1/8")
- - Min part length: 1,575 mm(62")
- - Max part weight/m: 433 kg/m
Qualitative Machine Benefits:
- - Low working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
