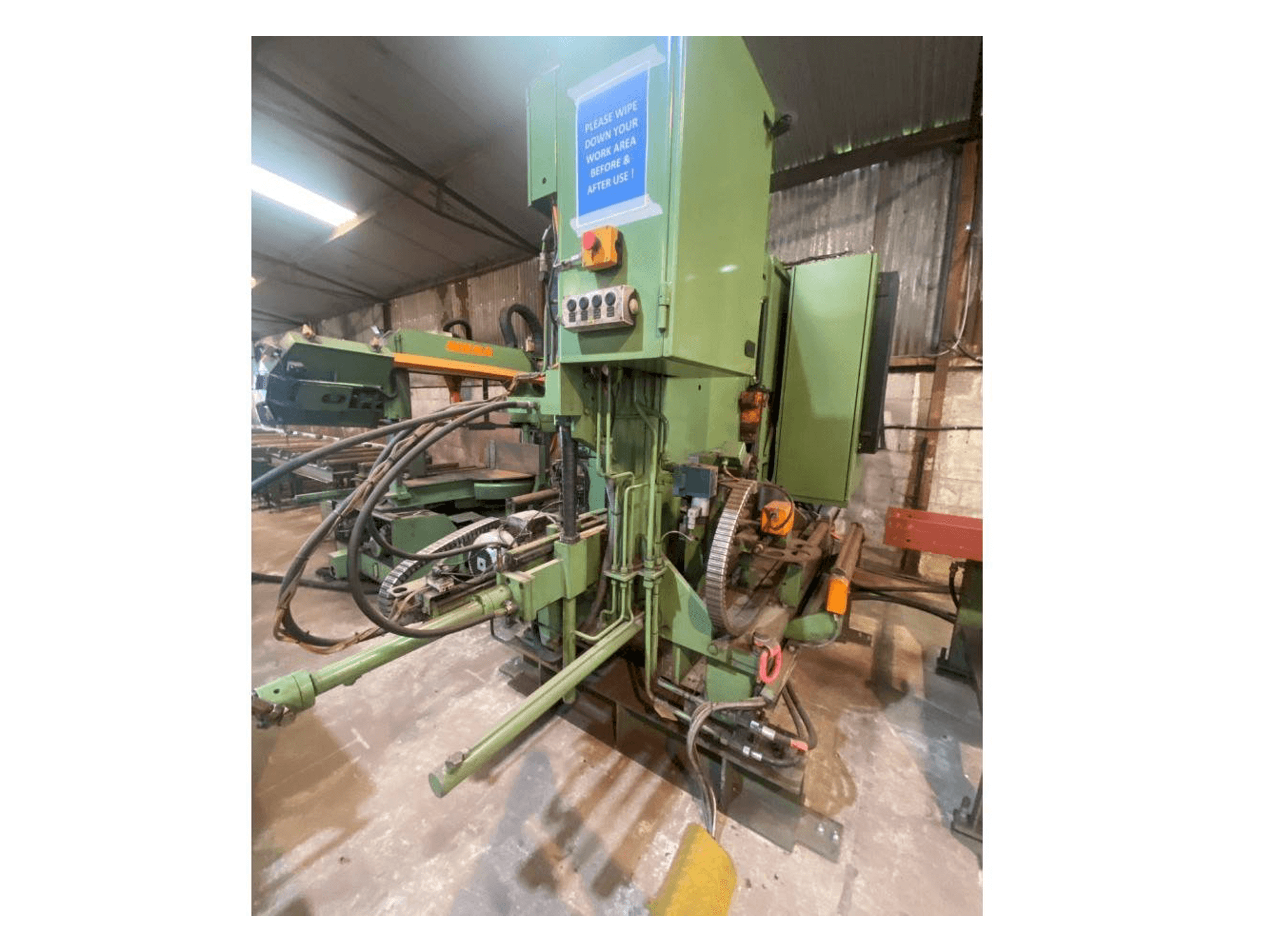

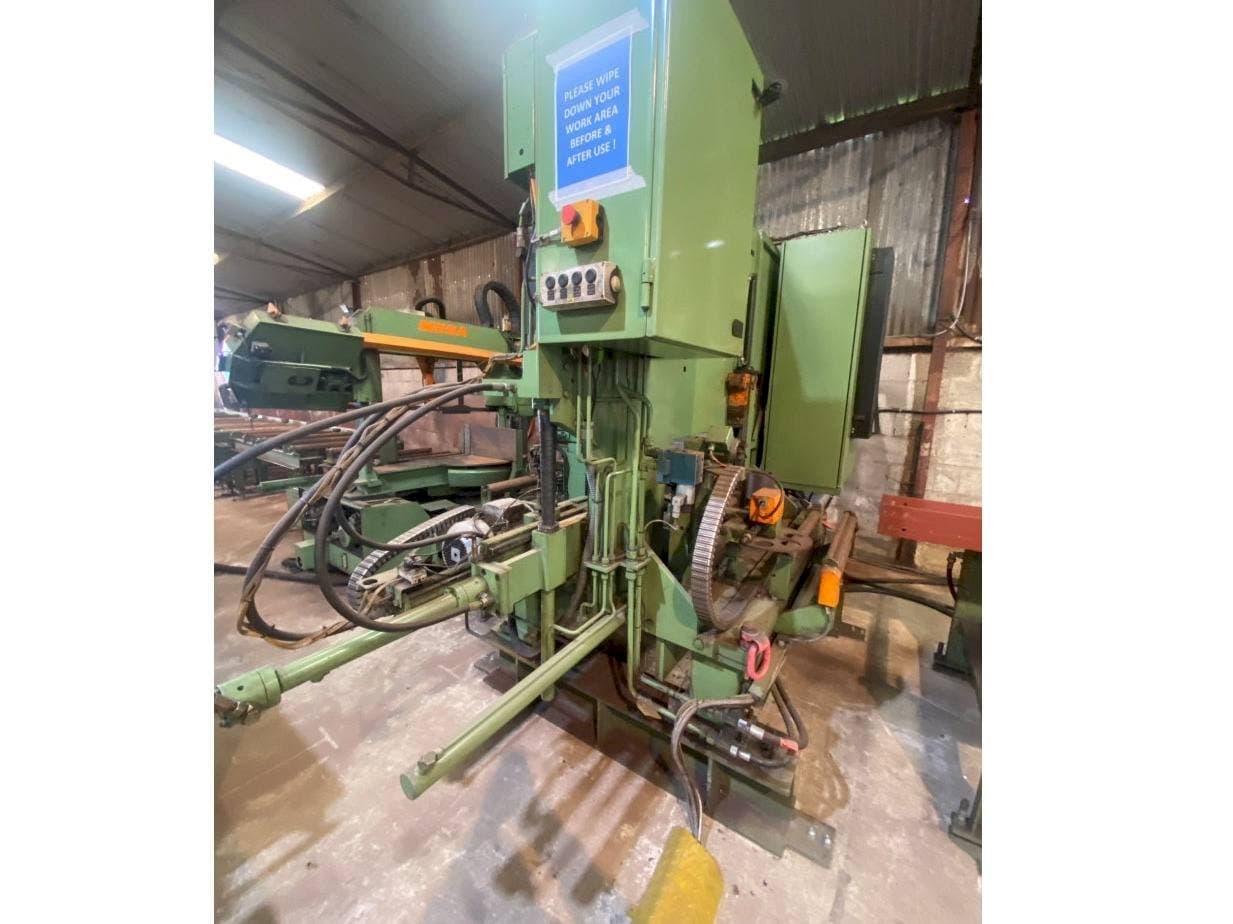

Peddinghaus BDL760/3 with Meba 400DG-700 Drilling machine

Show in original language

This Peddinghaus BDL760/3 with Meba 400DG-700 Drilling machine was manufactured in the year 2001 in Germany. It is equipped with a SIEMENS Sinumerik control unit. The machine has 510 rpm, and includes MEBA 400DG-700 Bandsaw, 12m Infeed Powered Conveyors, 12m Outfeed Powered Conveyors, 10 x 4m Powered Cross Transfers and Small Selection of Drills and Sleeves.

Overview

brand: Peddinghaus
year: 2001
MODEL: BDL760/3 with Meba 400DG-700
application type: Other Machine Tools
Location: Ireland
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: Siemens

Technical Information - Peddinghaus BDL760/3 with Meba 400DG-700

General Data

Measurements width: 3800 mm
Measurements depth: 1700 mm
Measurements height: 2300 mm
Machine weight: 4500 kg

Control Unit

Brand: Siemens
Model: Sinumerik

Main drive

Number of spindles: 3

Movement

Y-AXIS Movement: 760 mm
Z-AXIS Movement: 410 mm

Workpiece

Workpiece y: 750 mm
Workpiece z: 410 mm
Workpiece weight: 6000 kg

Tools

Max tool diameter: 32 mm
Type of tool holder: MT3

Media

Main electronic connection: 400 V

Additional Equipment

- MEBA 400DG-700 Bandsaw
- 12m Infeed Powered Conveyors
- 12m Outfeed Powered Conveyors
- 10 x 4m Powered Cross Transfers
- Small Selection of Drills and Sleeves

Additional Information

Machine history

End product: Building industry
Industries: Structural steel

Machine Benefits

Technical Machine Benefits:
- - Full structural steel saw/drill line
- - 12m infeed & 12m outfeed conveyors

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
