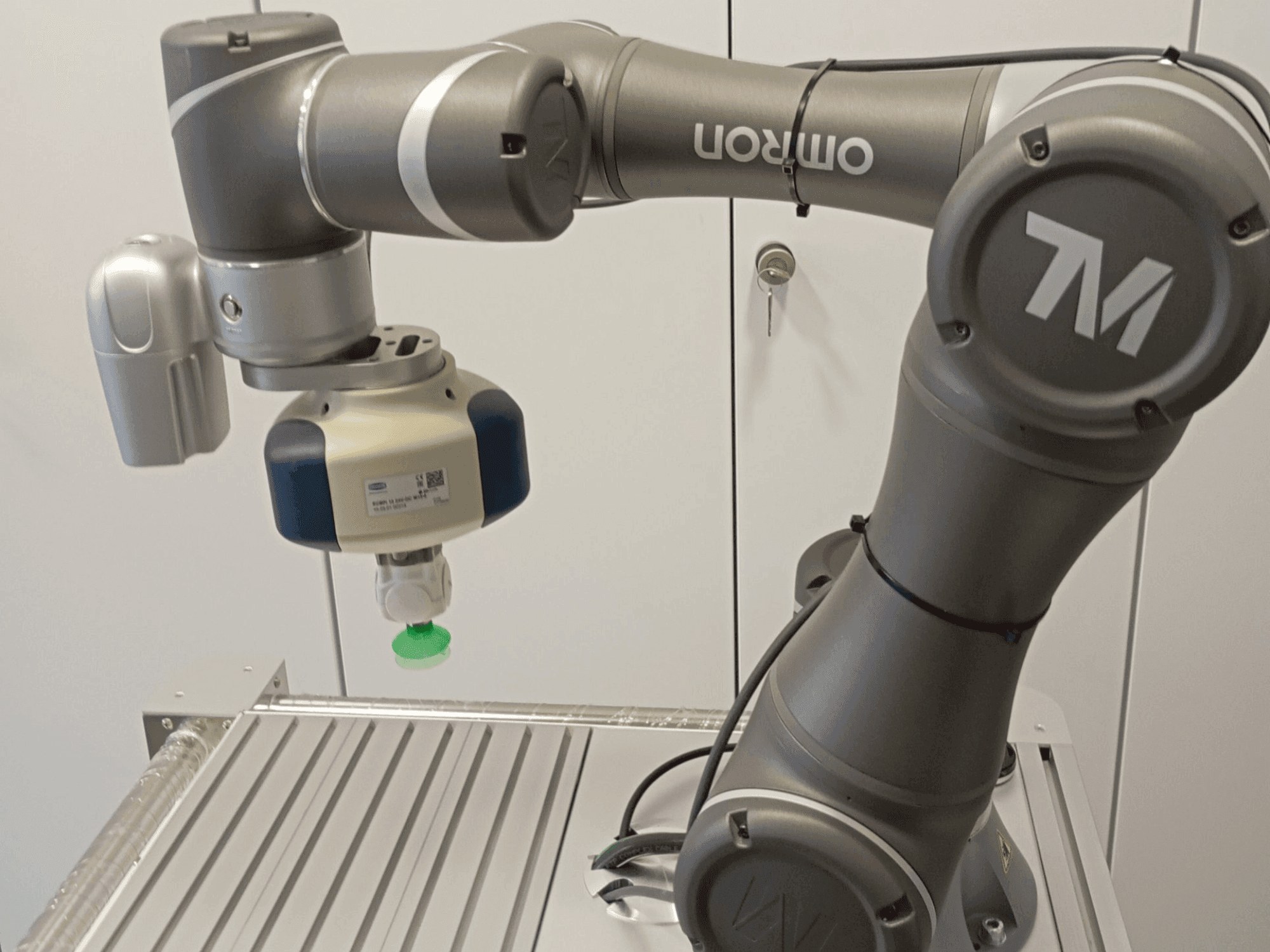

OMRON - TM5-700PY-ROB-OMR-2019-00001

Additional Equipment

• - Eye in Hand (Built-in)
• - Camera: 1.2M/5M pixels, color camera
• - Eye to Hand (Optional): Support for maximum 2 GigE cameras

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Degrees of freedom: 6 rotating joints
  • - Workpiece reach: 700 mm
  • - Workpiece payload: 6 kg
  • - Repeatability: +/- 0. 05 mm
  • - Power supply: input: 100-240 vac, 50-60 hz
  • - Power supply: dc input: 22-60 vdc
  • - Power consumption: typical: 220 watts
  • - Temperature range: operating range: 0°c to 50°c

Extra information

• - Joint Ranges: J1, J6: +/- 270° J2, J4, J5: +/- 180° J3: +/- 155° Speed: J1~J3: 180°/s J4~J6: 225°/s IP Classification: Robot Arm: IP54 Control Box: IP32 I/O Ports: Control Box: Digital Input: 16 Digital Output: 16 Analog Input: 2 Analog Output: 1 Tool Connector: Digital Input: 4 Digital Output: 4 Analog Input: 1 Analog Output: 0 I/O Interface: COM: 3 HDMI: 1 LAN: 3 USB 2.0: 4 USB 3.0: 2 Certifications: Standard: CE Optional: SEMI S2 I/O Power Supply: Control Box: 24V, 1.5A Tool Connector: 24V, 1.5A Typical Speed: 1.1 m/s
