MOLLART MATRIX DHD1510-18S Drilling machine

Show in original language

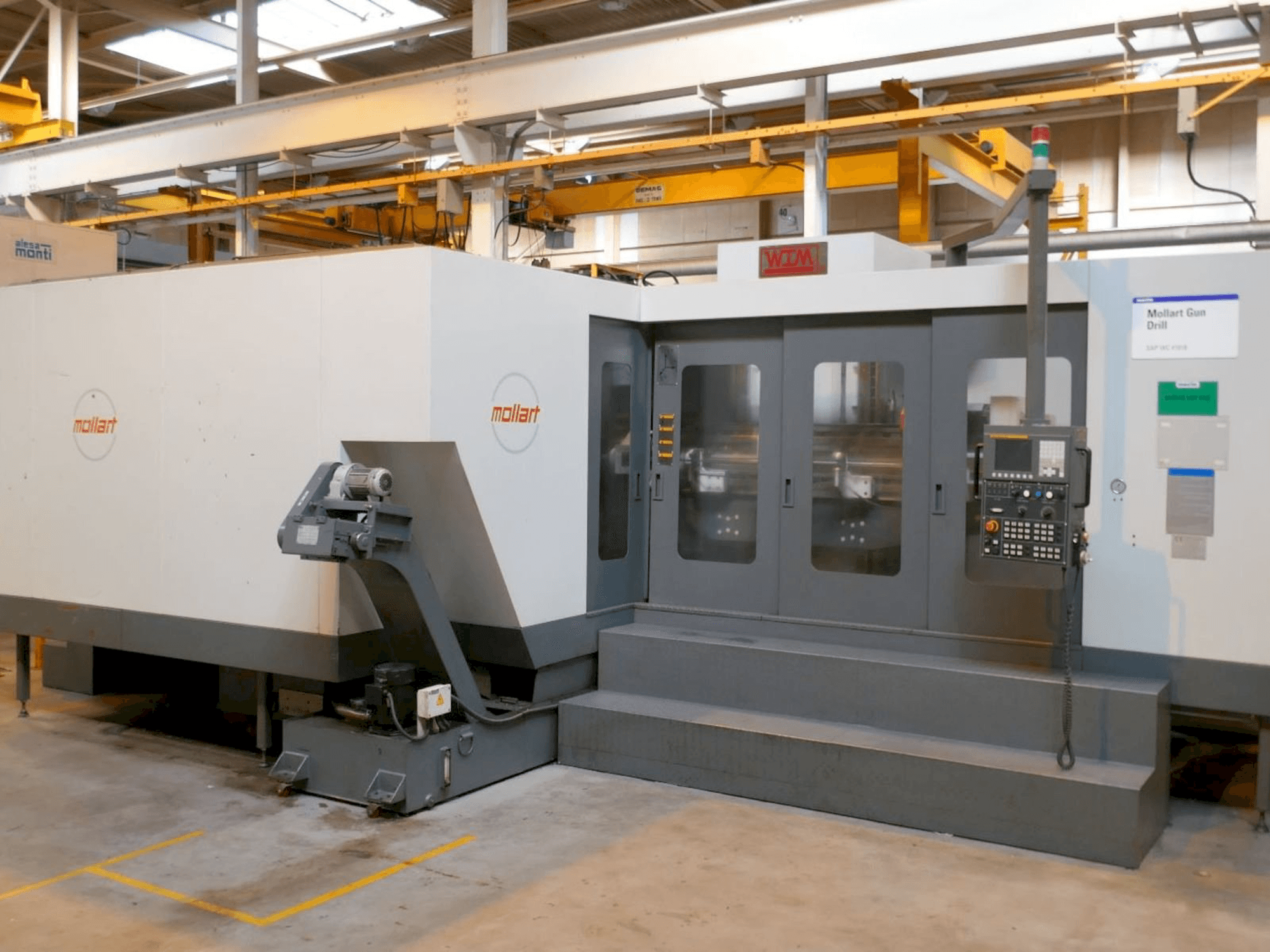

This MOLLART MATRIX DHD1510-18S Drilling machine was built in the year 2011 in the United Kingdom. It is equipped with a FANUC Series 0i-MD control unit. The machine has a spindle speed of 0 - 6000 rpm, a drilling depth of 1850 mm, and includes a selection of single lip gun drill tools 10mm – 16mm.

Overview

brand: MOLLART
year: 2011
MODEL: MATRIX DHD1510-18S
application type: Other Machine Tools
Location: United Kingdom
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: FANUC

Technical Information - MOLLART MATRIX DHD1510-18S

General Data

Measurements width: 7000 mm
Measurements depth: 6000 mm
Measurements height: 3000 mm
Machine weight: 12000 kg

Control Unit

Model: Series 0i-MD
Brand: FANUC

Main drive

Spindle speed range: 0 - 6000 1/MIN
Spindle motor power: 11 kW

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 1000 mm

Table

Outer length: 1200 mm
Outer width: 1700 mm
Table load: 600 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drilling diameter range from solid: 3 mm - 40 mm
- - Drilling depth: 1850 mm
- - Drilling feeds: 0 – 3000 mm/min
- - Coolant pressure: 2 – 11 mpa
- - Full guarding
- - Whip guide set
- - Chip conveyor
- - High pressure coolant system
- - Chiller
- - Selection of single lip gun drill tools 10mm – 16mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
