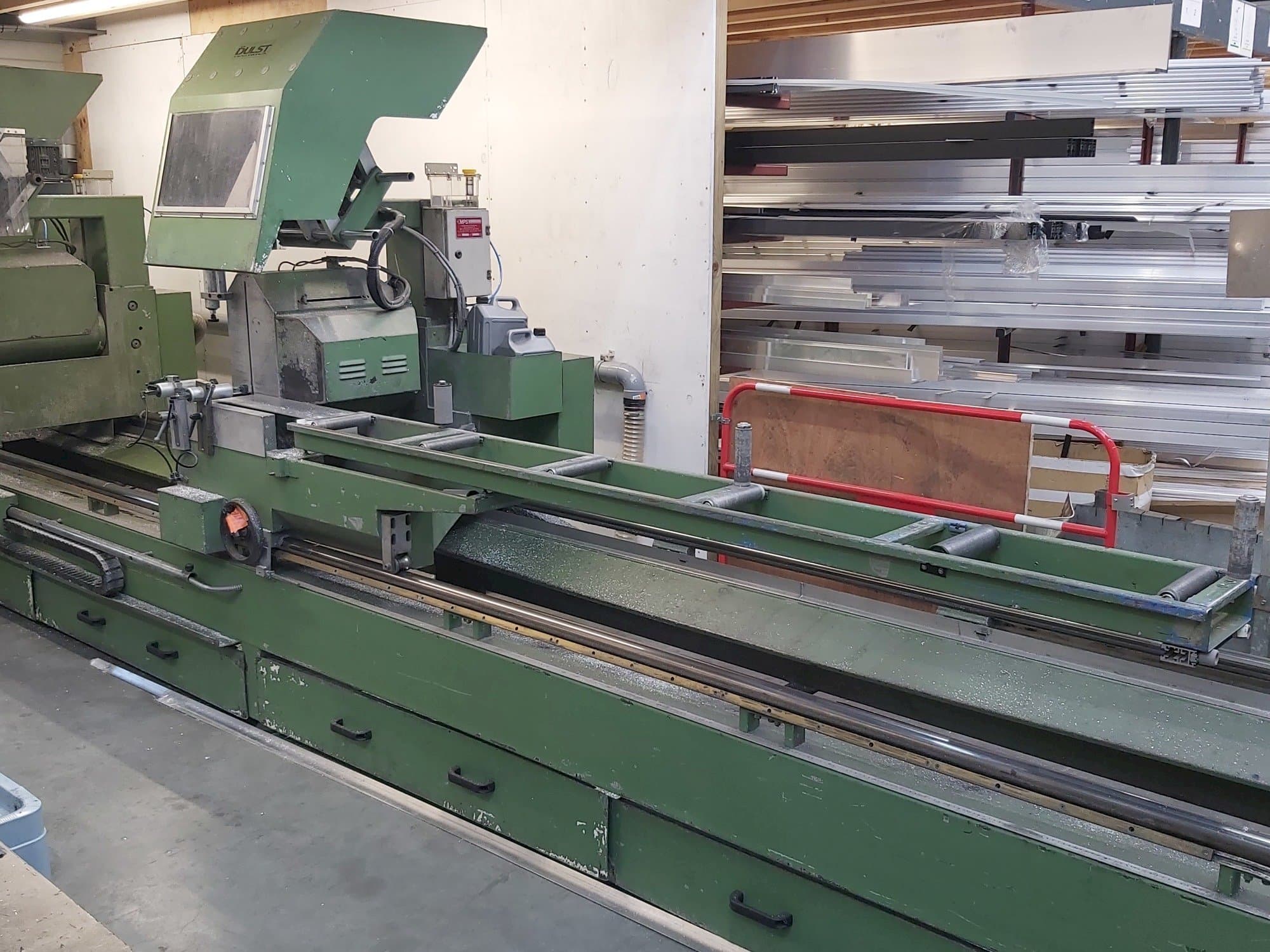

MECAL - SW453 Reverse Garda 3NL-OTH-MEC-2001-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Double miter saw mecal sw453
  • - Type reverse garda 3
  • - Max. Cutting length between the saw heads: 5 m
  • - Double miter saw with movable right head by means of a programmable dc servo motor over a rack and pinion. The tilting of the saw heads is servo-controlled
  • - Servo-controlled tilting (tilting) of the cutting heads of each head from 22. 5° outward to 45° inward
  • - Including 2 saw blades: 500 mm
  • - Motor 2800 rpm
  • - 380-400v
  • - 2. 2kw
  • - Equipped with an industrial pc, type ec 9001
• Qualitative Machine Benefits:
  • - Hydropneumatic linear saw feed
  • - Equipped with adjustable end stop for the stroke length
  • - The saw comes from the back to the front
  • - Standard incl. Mist lubrication (suction, water-based coolant)
  • - Incl. 2 vertical clamps adjustable in height from above. The clamps have a pneumatic stroke in the transverse direction to prevent the saw from cutting into the clamp.
  • - Incl. 2 fixed horizontal clamps inside, adjustable in height/depth
  • - Equipped with pneumatic protective covers around the cutting zone
  • - Incl. 2 hm saw blades: tct Ø 500mm x 30 x 120tds
  • - In accordance with ce guidelines, supplied with assembly keys and instruction book
  • - Minimum cutting length between the saw heads, with straight cutting: 300 mm -the control is suitable for connection to the network.
