LVD STRIPPIT S 1212 Punching Machine

Show in original language

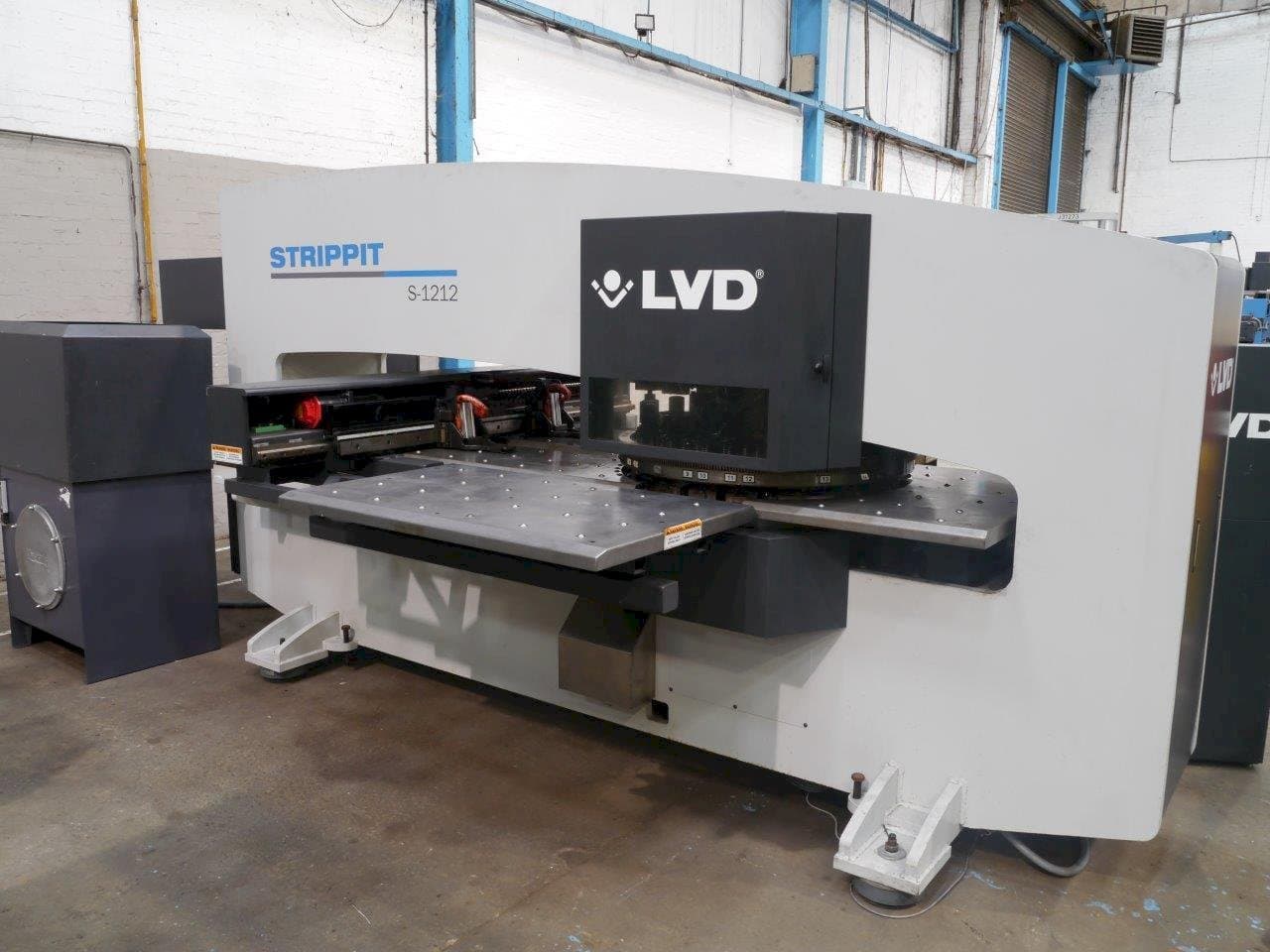

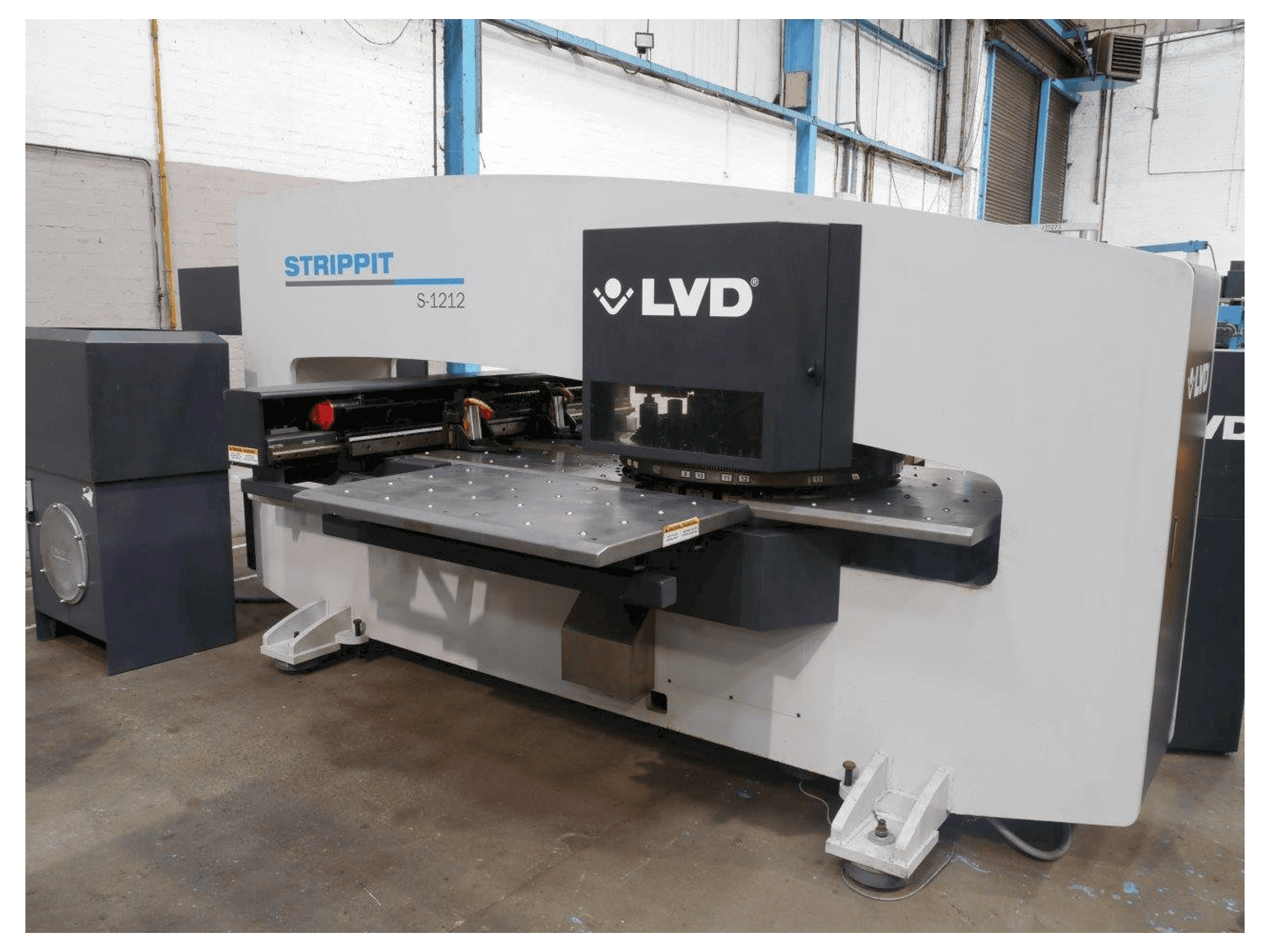

This LVD STRIPPIT S 1212 Punching Machine was manufactured in the year 2011 in the United States. The model is operated through a Fanuc Series 18i ‑ PB control unit. This machine can work with a punching force of 200 kN. It is supplied with quantity of tooling.

Overview

brand: LVD
year: 2011
MODEL: STRIPPIT S 1212
application type: Punching
Location: United Kingdom
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - LVD STRIPPIT S 1212

General Data

Measurements width: 4700 mm
Measurements depth: 2600 mm
Measurements height: 2250 mm
Machine weight: 9120 kg

Control Unit

Model: Series 18i ‑ PB
Brand: FANUC

Main drive

Punching force: 200 kN

Movement

X-AXIS Movement: 1326 mm
Y-AXIS Movement: 1337 mm

Table

Outer length: 2590 mm
Table load: 110 kg

Media

Main electronic connection: 400/3/50hz
Power consumption: 50kw

Additional Equipment

- Supplied with: Quantity of tooling

Additional Information

Machine history

Material thickness: 6. 35 mm

Machine Benefits

Technical Machine Benefits:
- - Punching accuracy: 0,1mm + or ‑
- - Hole size: 88. 9mm at 2mm mild steel thickness, 30mm at 6mm mild steel thickness
- - Largest tool diameter: `d` (88. 9mm)
- - Feed clearance: 25mm
- - Turret configuration: 31 stations
- - Turret layout: 16 `a` (12,7mm) 10 `b` (31,7mm) 2 `c` (50. 8mm) 3 `d` (88,9mm) auto index stations
- - Sheet size: 1250mm x 1250mm
- - Hit rate @2mm working stroke: up to 900 hpm @ 1mm feed rate, up to 360 hpm @ 25mm feed rate
- - Fitted with: light guards
Qualitative Machine Benefits:
- - Literature: manuals available in german

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
