Kuka LBR iiwa 7 Robot

Show in original language

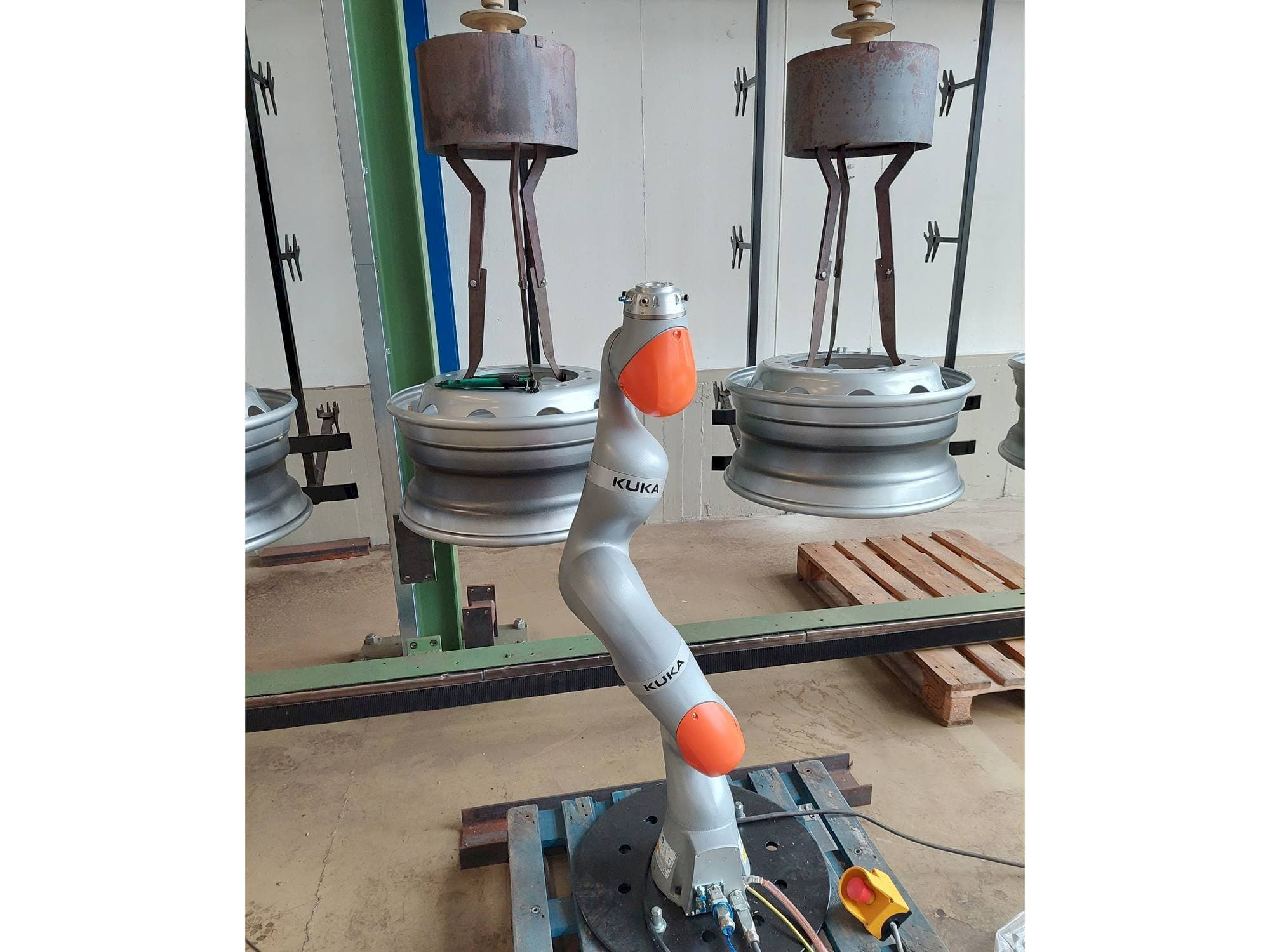

This Kuka LBR iiwa 7 Robot was made in 2022 in Germany. It has a nominal payload of 7 kg, a maximum reach of 800 mm, and 7 axes. The front flange has both pneumatic and electrical connections ("MF Pneumatic"). See original offer with all technical positions as PDF (German) attached.

Overview

brand: KUKA
year: 2022
MODEL: LBR iiwa 7
application type: Robotics
Location: Germany
machine type: Robot Arm
availability: Sold

Technical Information - KUKA LBR iiwa 7

General Data

Machine weight: 23 kg

Main drive

Number of axis: 7

Additional Equipment

- A gripper for the robot is not available.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nominal payload: 7 kg
- - Maximum reach: 800 mm
- - Position repeatability (iso 9283): ± 0. 1 mm
- - Mounting position: floor, ceiling, wall
- - The front flange has both pneumatic and electrical connections ("mf pneumatic")
Qualitative Machine Benefits:
- - The innovative lightweight robot lbr iiwa 7 r800 is extremely "sensitive" and safe due to its integrated torque sensor technology and impresses with its high flexibility.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
