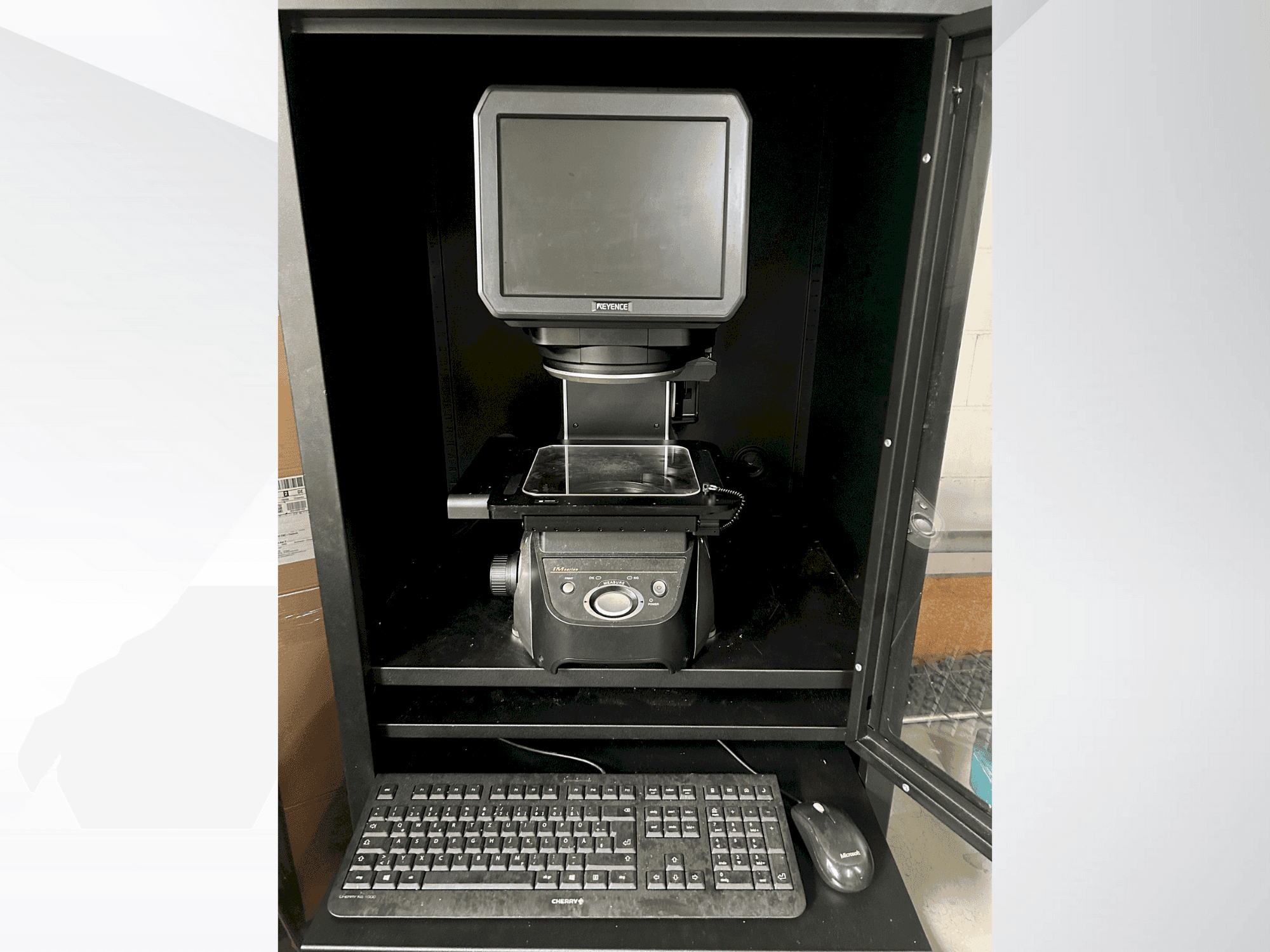

KEYENCE - IM 7020DE-MEA-KEY-2018-00001

Additional Equipment

• - Optical Probe Measurement: Measurable Range: Diameter: Ø90 mm x 90 mm / Max Depth: 30 mm / Probe Tip Diameter: Ø3 mm / Contact Force: 0.015 N / Repeatability: ±2 micra / Accuracy: ±(8 + 0.02L) micra
• - External Connections: Input: Voltage-free input (contact or non-contact) / Output: Photo-MOS output, rated at 24 V DC, 0.5 A
• - Interfaces: LAN: RJ-45 (10BASE-T/100BASE-TX/1000BASE-T) / USB: USB 2.0 Type-A (6 ports: 2 front, 4 rear)
• - Storage: Hard Disk: 500 GB
• - Lighting System: Transmitted Light: Telecentric backlight (green LED) / Ring Light: Multi-angle lighting with 4 segments (white LED) / Flat-angle directional lighting (green LED)
• - XY Object Table: Travel: 100 mm x 100 mm (electric) / Max Load Capacity: 5 kg / Z Object Table: Travel: 75 mm (electric)
• - Power Supply: Voltage: 100-240 V AC, 50/60 Hz / Power Consumption: Max 430 VA

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Control unit: 31 kg, measurement head: 8 kg, marking head: 31 kg
  • - Measurement head: image sensor: monochrome cmos, 1", 6. 6 megapixels / display: 10. 4" (xga: 1024 x 768) / lens system: telecentric lens for image-based measurement
  • - Measurement area: standard measurement mode: 200 mm x 200 mm / precision measurement mode: 125 mm x 125 mm
  • - Resolution: 0. 1 micra
  • - Repeatability: standard measurement mode: without stage movement: ±1 micra / with stage movement: ±2 micra
  • - Precision measurement mode: without stage movement: ±0. 5 micra / with stage movement: ±1. 5 micra
  • - Tandard measurement mode: without stage movement: ±5 micra / with stage movement: ±(7 + 0. 02l) micra/ (l = stage displacement in mm)
  • - Precision measurement mode: without stage movement: ±2 micra / with stage movement: ±(4 + 0. 02l) micra
