Kapp RX59 Grinding machine

Show in original language

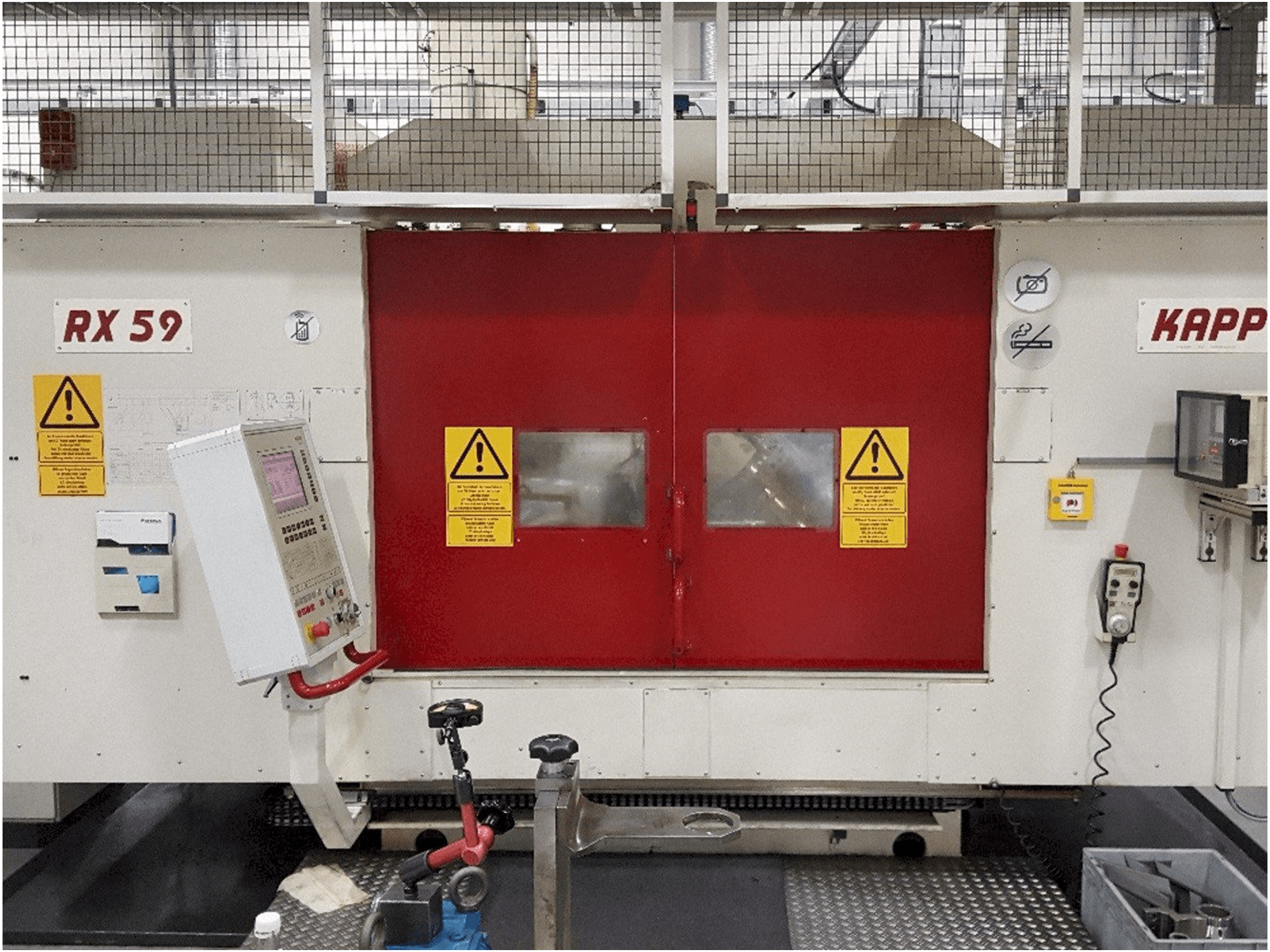

This Kapp RX59 Grinding machine was made in 2008 and has 38268 production hours, of which 17741 are grinding hours. It is equipped with a Kapp D300 control unit and has 5 axis. The machine has a workpiece diameter range up to 320 mm.

Overview

brand: Kapp
year: 2008
MODEL: RX59
production hours: 38268
application type: Grinding
Location: Germany
machine type: Grinding Machine
availability: Sold

Technical Information - Kapp RX59

Control Unit

Model: D300

Main drive

Number of axis: 5

Workpiece

Workpiece drm: 320 mm
Workpiece weight: 300 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece length up to 1650 mm
- - Max. Profile length 850 mm
- - Max. Profile width 180 mm
- - Max. Profile depth 80 mm
- - Max. Pitch height 0. 1 mm - 1000 m as well as infinite
- - Max. Swivel range of the grinding spindle axis - 60/+ 90 degrees
- - Max. Feed path of the grinding slide 1020 mm
- - Max. Total connected load 89 kw / 143 kva (without coolant system)
Qualitative Machine Benefits:
- - The working range can be enlarged after testing, if necessary.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
