- KABAN ZC4035 Aluminium Machining Center

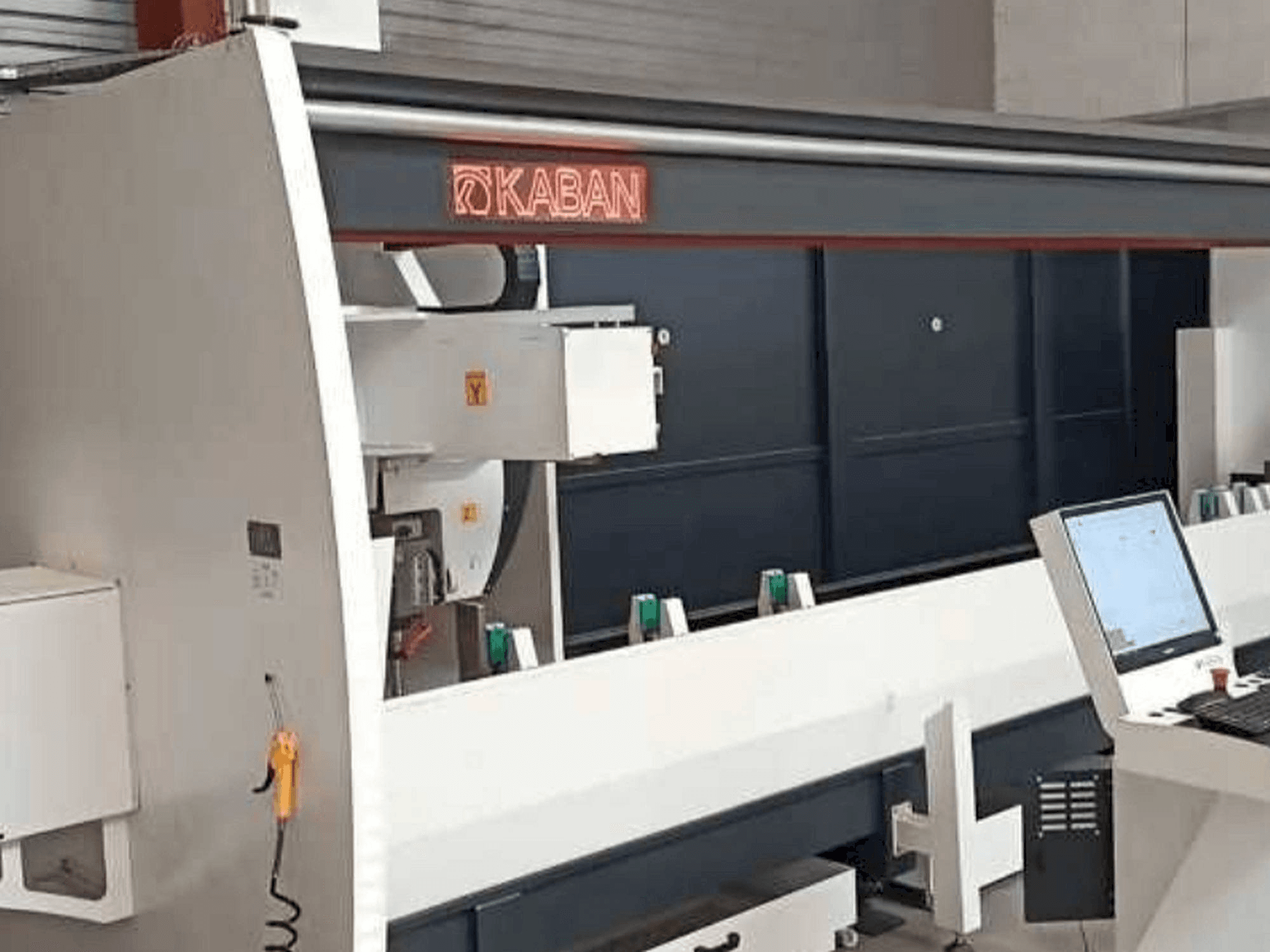

This KABAN ZC4035 Aluminium Machining Center was manufactured in the year 2021 in Turkey. It is equipped with a Mitsubishi FX-5 control unit and has 3.5 axis. The machine has a spindle speed of 24000 rpm.
Overview
- brand: KABAN
- year: 2021
- MODEL: ZC4035
- application type: Other Machine Tools
- Location: Poland
- machine type: Machine Tool
- availability: Sold
- control unit brand: MITSUBISHI
Technical Information - KABAN ZC4035
General Data
- Measurements width: 7896 mm
- Measurements depth: 3574 mm
- Measurements height: 2642 mm
- Machine weight: 6700 kg
Control Unit
- Model: FX-5
- Brand: MITSUBISHI
Main drive
- Spindle speed range: 24000 1/MIN
- Spindle motor power: 8.5 kW
- Tool taper: HSK 63F
- Number of axis: 3.5
Media
- Main electronic connection: 400V / 50-60 Hz
- Power consumption: 19 kW
Additional Information
- Technical Machine Benefits:
- - Maximum machining length: 4175 mm
- - Max machining width: 300 mm
- - Max machining height: 300 mm
- - A-axis angle: 180 deg
- - Max profile length: 4175 mm
- - Max profile dimension: 300 x 300 mm
- - 6 clamps, 8 tool holding capacity
- Qualitative Machine Benefits:
- - Tool cooling system with oil-air mixture spraying
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
