JUNG HF 50 RD Grinding Machine

Show in original language

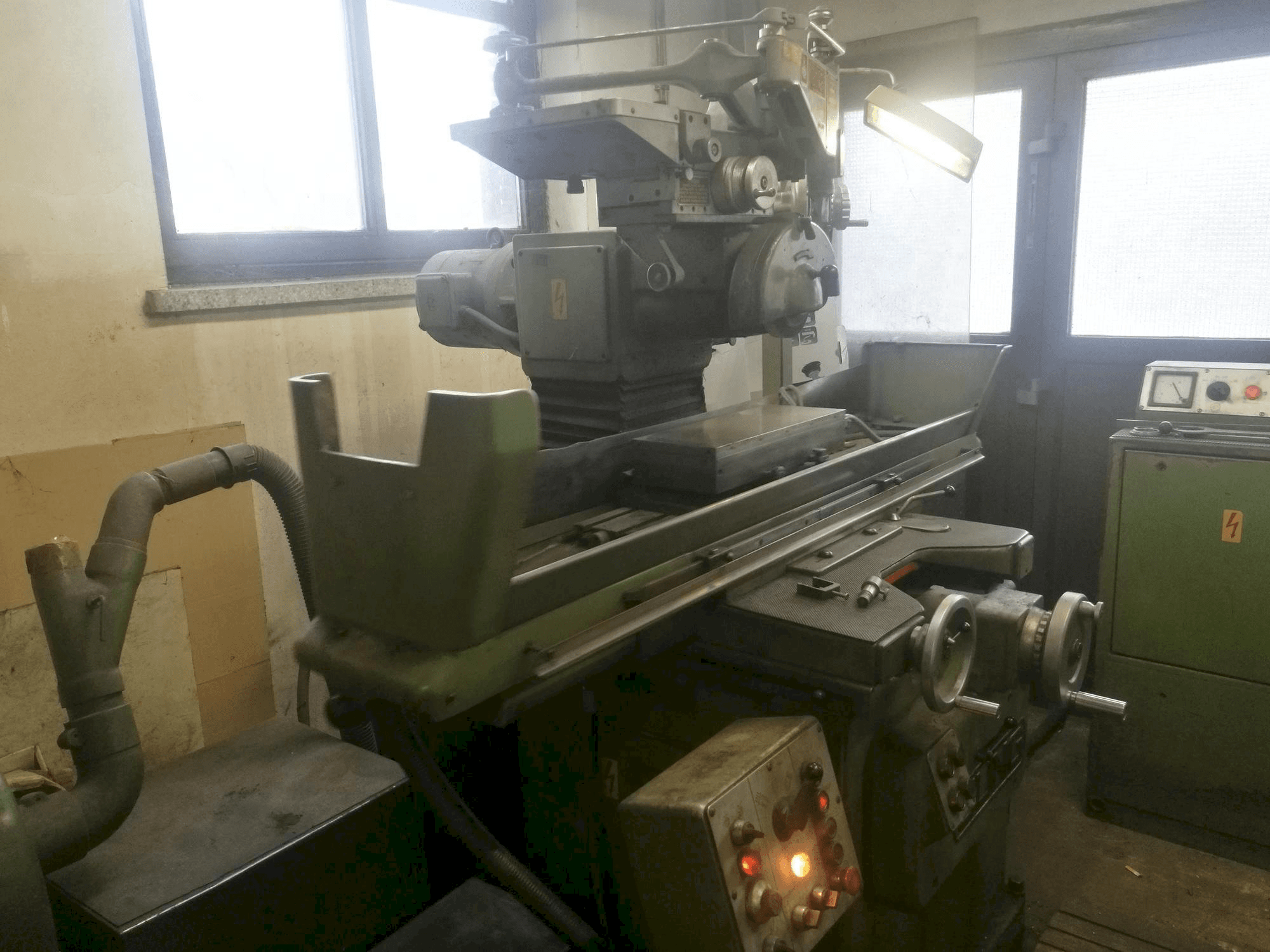

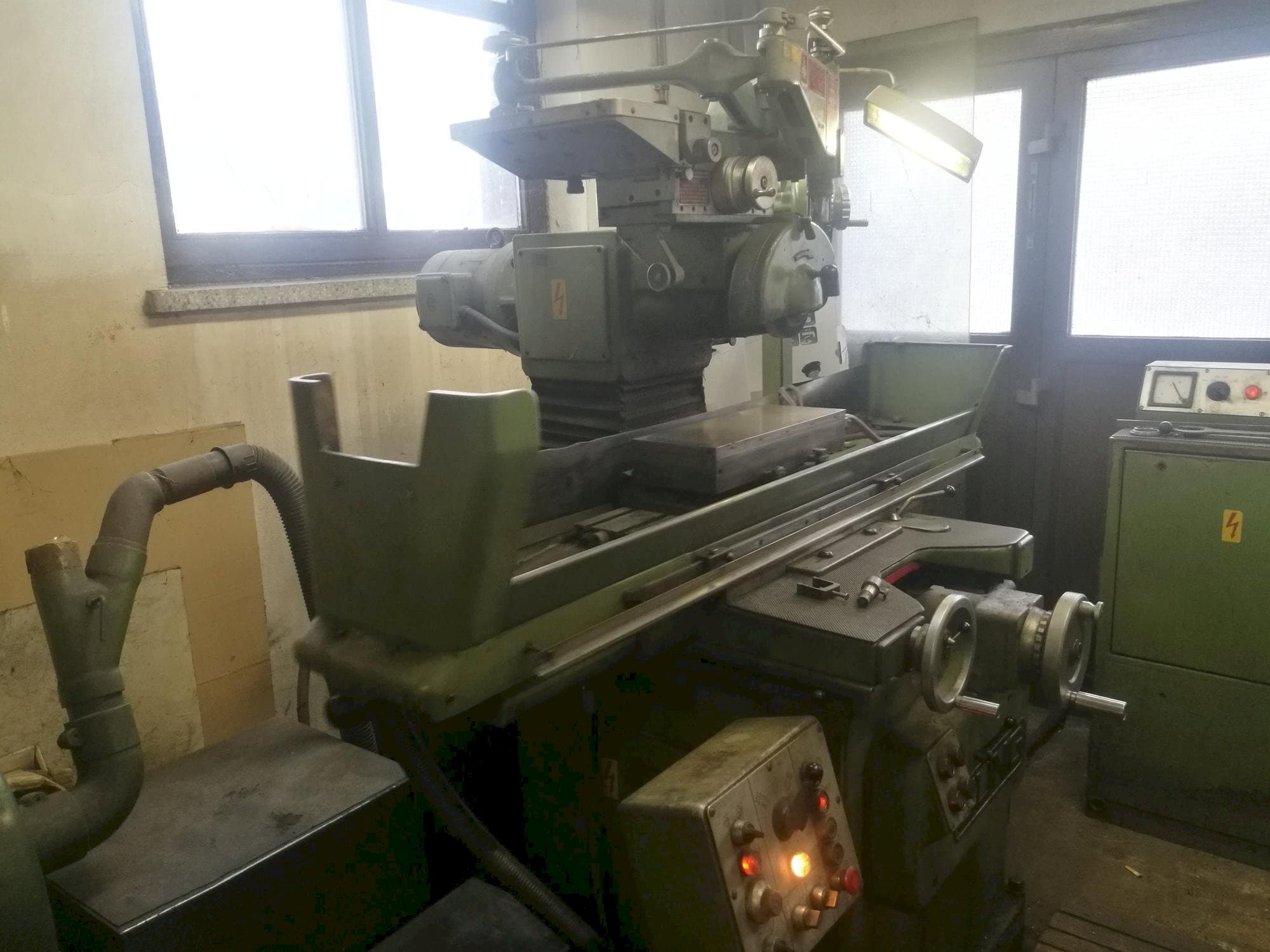

This JUNG HF 50 RD Grinding Machine was made in 1976 in Germany and has been operative for 9000 hours. This model stands out for being a manual machine with automatic feeds. Several additional equipment is included.

Overview

brand: JUNG
year: 1976
MODEL: HF 50 RD
production hours: 9000
application type: Grinding
Location: Croatia
machine type: Surface Grinding Machine
availability: Sold

Technical Information - JUNG HF 50 RD

General Data

Measurements width: 2900 mm
Measurements depth: 1500 mm
Measurements height: 1900 mm
Machine weight: 1800 kg

Main drive

Spindle speed range: 3500 rpm 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 200 mm

Workpiece

Workpiece x: 350 mm

Table

Outer length: 730 mm
Outer width: 200 mm
Number of tslots: 3
Distance between: 85 mm

Media

Main electronic connection: 380 V
Oil water separator: Yes

Additional Equipment

- sinus magnet table 450x175mm
- Digital readout Jung-Heidenhain 1 axis
- grinding wheels set (upon request)
- filter unit

Additional Information

Machine history

Material type: Steel
End product: Tools, small plates

Machine Benefits

Technical Machine Benefits:
- - Manual machine with automatic feeds

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
