IMA - NOVIMAT I G80 540 R3DE-WOO-IMA-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used IMA NOVIMAT I G80 540 R3 - For Sale

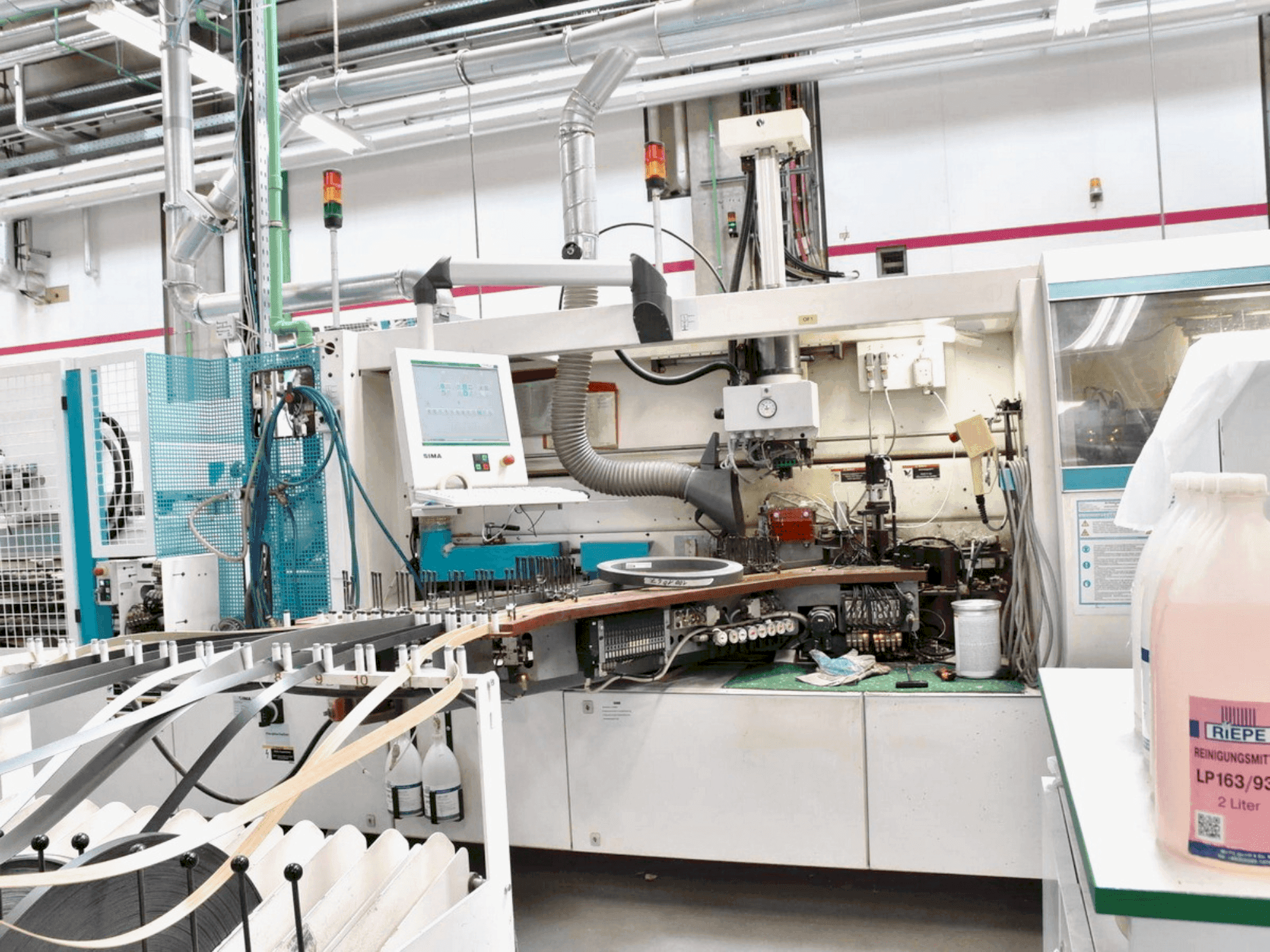

This edge gluing and finishing machine was manufactured in 2012. It features a robust sliding feed chain, automatic lubrication, and a versatile gluing unit VTG for precise edge applications up to 3 mm. Equipped with a 12-fold edge magazine and a multi-profile milling unit, it supports diverse woodworking tasks. Ideal for handling paper, plastic, and veneer edge materials. For more information about this edge gluing and finishing machine, please reach out to us.
Overview
- brand: IMA
- year: 2012
- MODEL: NOVIMAT I G80 540 R3
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
- availability: Immediately
Technical Information - IMA NOVIMAT I G80 540 R3
Workpiece
- Workpiece x: Min 150 mm
- Workpiece y: Min 65 mm
- Workpiece z: 8-60 mm
Additional Equipment
- - Long infeed ruler for easier workpiece feeding.
- - Manually adjustable horizontally.
- - Workpiece support rollers in extension of the chain track.
- - Servo infeed and stop system A1 / 15.
- - Tilt roller table as a feed roller table.
- - Separator application top and bottom.
- - Joint trimming unit 08.379.
- - Blow nozzle for removing loose particles.
- - Radiator 300 mm for preheating the workpiece edge.
- - Gluing unit VTG for gluing straight edges.
Additional Information
- Technical Machine Benefits:
- - Constant workpiece offset from the chain track: 38 mm (incl. Edge with edge thicknesses of 0. 3 - 3 mm)
- - Minimum through width: 65 mm* *at a maximum workpiece thickness of 25 mm
- - Minimum workpiece length in feed direction: 150 mm
- - Base height (top edge of chain track): 960 mm
- - Edge material (paper, plastic (foil only with additional equipment), and veneer: minimum height 14 mm, maximum height 65 mm
- - Roll material: minimum thickness 0. 3 mm, maximum thickness 3. 0 mm (veneer edges limited to a maximum of 1. 0 mm)
- - Contour milling unit 08. 355, kfa x30.
- - Multi-profile scraping unit 08. 516.
- - Scraper 08. 521.
- - Polishing unit 08. 617-4.
- Qualitative Machine Benefits:
- - Automatic glue roller cleaning.
- - Pneumatically operated dosing slide for cleaning the glue roller.
- - Automatic pu melting system quickmelt 283. 203.
- - 12-fold edge magazine for roll material.
- - Vertical roll holder for 12 rolls.
- - Knife for precise separation of the edge material.
- - Trimming unit 08. 42 / 30 / b.
- - Milling unit 08. 0555.
- - Multi-profile milling unit 08. 0587.
- - Horizontal spray nozzle for the kfa.
- - Machine still under power.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
