Hitachi 254Y Wire cutting machine

Show in original language

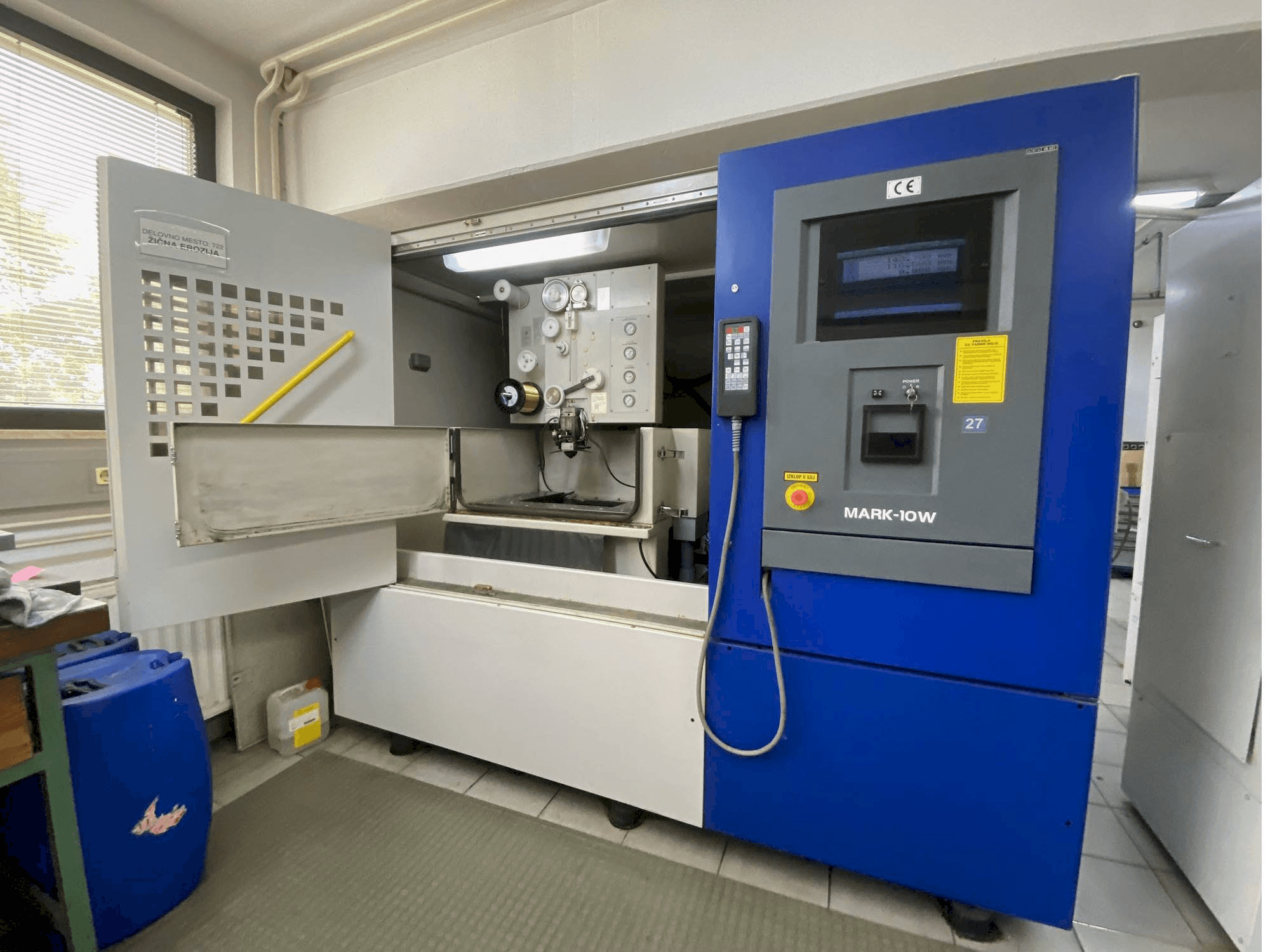

This HITACHI SEIKI 254Y Wire cutting machine was manufactured in the year 2003 in Japan. It is equipped with a Mark-10W control unit. The machine has wire tension of 20 to 300 mm/s, is in good condition and well maintained.

Overview

brand: HITACHI SEIKI
year: 2003
MODEL: 254Y
application type: Other Sheet Metal Machinery
Location: Slovenia
machine type: Sheet Metal Machine
availability: Sold

Technical Information - HITACHI SEIKI 254Y

General Data

Machine weight: 4000 kg

Control Unit

Model: 10W

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Work piece dimensions( 600 w x 400 d x 210 h mm)
- - Max work piece loading mass: 400 kg
- - Working tank. Inner size: 870x 655 mm
- - X,y,z axis travel distance: 400 x 250 x 210 mm
- - U, v axis travel distance: 200 x 200(‡100) mm
- - X. Y axis rapid feed rate: 1500 mm/min
- - Max. Wire bobbin mountable (standard): jis 10 kg
- - Wire diameter: 0. 25 dia
- - Mire feed rate: 20 to 300 mm/s
- - Wire tension: 20 to 300 mm/s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
