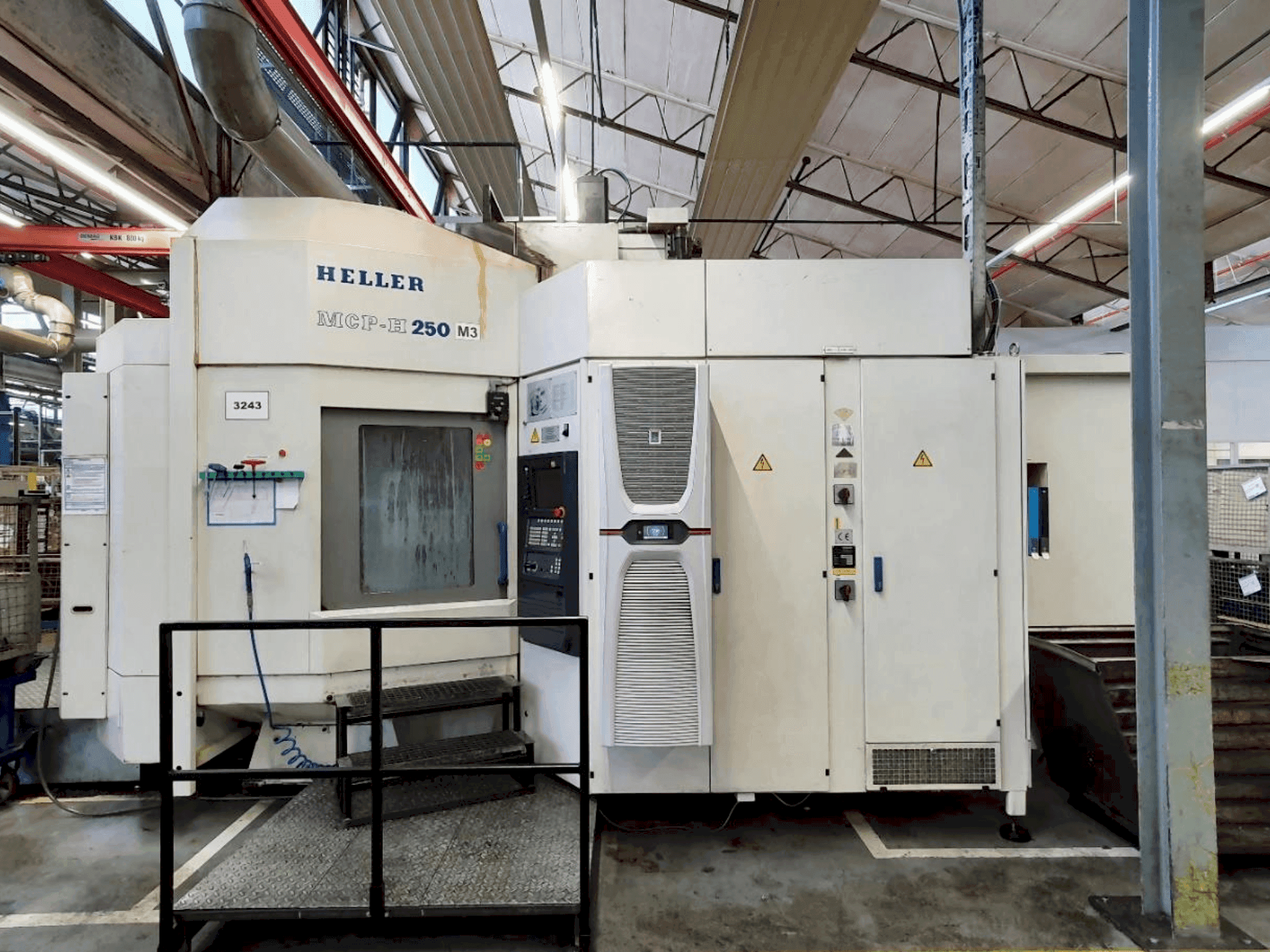

This HELLER MCP-H 250 Horizontal Machining Centre was manufactured in 1999 in Germany. It is equipped with a HELLER Unipro 90 control unit and a tool taper SK50. The pallet size is 630 x 500 mm and the spindle speed range 45-6000 rpm. It has a NC rotary table, a pallet changing device and a tool magazin (chain) with 52 places. As additional equipment it comes with measuring device for BLUM TC 50, linear scales Heidenhain, BKW cooling unit for spindle cooling, Knoll coolant system with vacuum rotary filter and sludge discharge, Knoll chip conveyor, BKW cooling unit for cooling lubricant system, work area flushing and 2 pallets. The machine is in good condition for its age. Annual maintenance has been carried out over the entire service life. In 2018, the machine was retrofitted with the latest interface/receiver for the Blum TC 50. It is still under production and can be inspected at any time.
Overview
- brand: HELLER
- year: 1999
- MODEL: MCP-H 250
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Immediately
- control unit brand: HELLER
Technical Information - HELLER MCP-H 250
General Data
- Machine weight: 16200 daN KG
Control Unit
- Brand: HELLER
- Model: Unipro 90
Main drive
- Spindle speed range: 45-6000 rpm 1/MIN
- Tool taper: SK50
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 710 mm
Table
- Outer length: 630 mm
- Outer width: 500 mm
- Table load: 800 daN
Tools
- Number of stations: 52
Additional Equipment
- - Measuring device for BLUM TC 50
- - Linear scales Heidenhain
- - BKW cooling unit for spindle cooling
- - Knoll coolant system with vacuum rotary filter and sludge discharge
- - Knoll chip conveyor
- - BKW cooling unit for cooling lubricant system
- - Work area flushing
- - 2 pallets
Additional Information
- Technical Machine Benefits:
- - Max. Interfering contour workpiece size: 900x1000 mm
- - Nc rotary table
- - Pallet changing device
- Qualitative Machine Benefits:
- - The machine is in good condition for its age
- - Annual maintenance was carried out over the entire service life
- - In 2018, the machine was retrofitted with the latest interface/receiver for the blum tc 50 measuring probe
- - The machine is still under power and can be inspected at any time
- - Power requirement: 62 KVA
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
