GER C 500 Grinding Machine

Show in original language

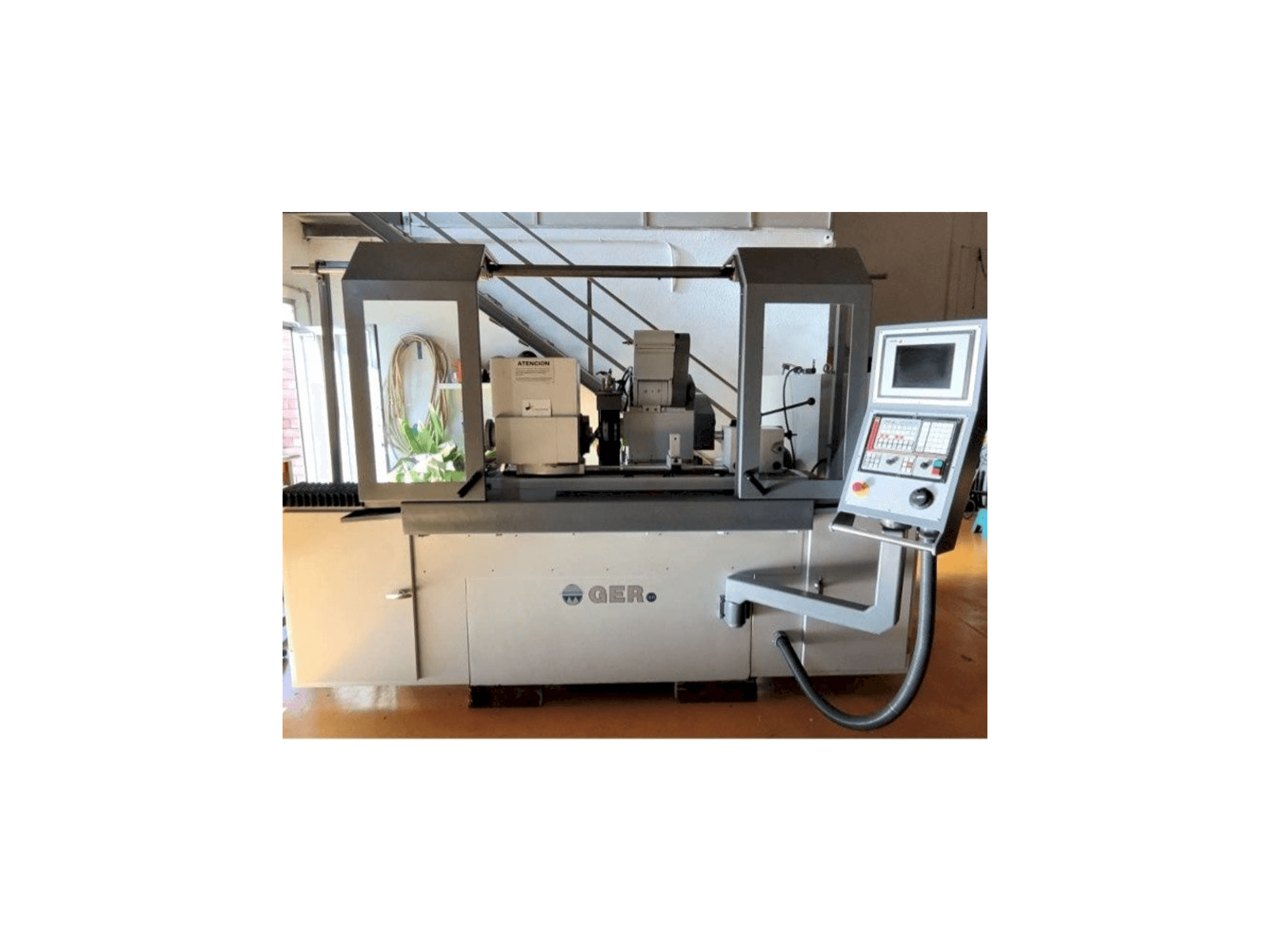

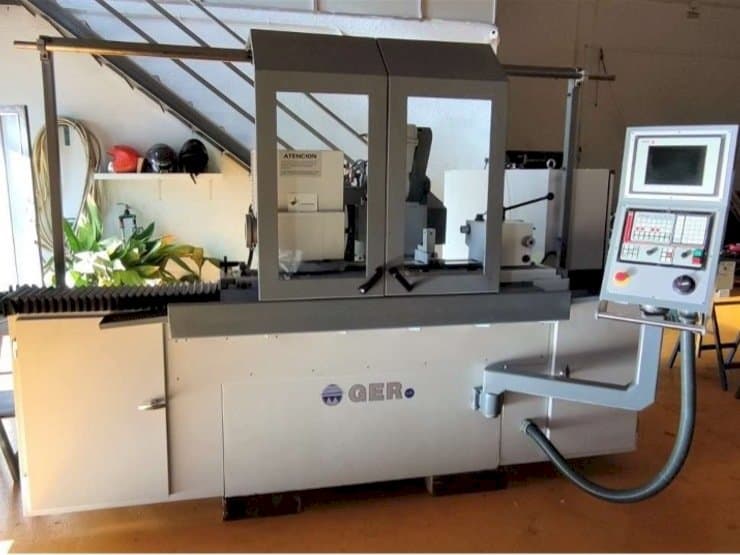

This GER C 500 Grinding Machine was built in the year 2000, and Fully mechanically rebuilt 2022. It is controlled by a Fagor control unit. This machine has a distance between points 500 mm, and a maximum diameter to rectify 275 mm.

Overview

brand: GER
year: 2000
MODEL: C-500 CNC
application type: Grinding
Location: Spain
machine type: Surface Grinding Machine
availability: Sold
control unit brand: FAGOR

Technical Information - GER C-500 CNC

Control Unit

Brand: FAGOR

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Diameter to be ground: 275 mm
- - Height of points: 140 mm
- - Distance between points: 500 mm
- - Speed variator on work holding head work holding head cone: mt 5
- - Turning of workpiece holder head: 30º
- - Grinding wheel motor power: 5. 5 hp
- - Grinding wheel dimensions: φ350x30(50)xφ127 mm
- - Variable speed drive for external grinding wheel
- - Automatic dressing of the grinding wheel with dressing compensation
- - Hydraulic hinged inside device, speed variator for internal grinding wheel, tailstock, cone
Qualitative Machine Benefits:
- - Completely mechanically rebuilt 2022
- - Reconditioning of ball screws at the manufacturer's premises
- - Replacement of antifriction material of the slides
- - Restoration of flatness, parallelism and perpendicularity of the sliding guides by hand scraping
- - Tailstock adjustment
- - Replacement of high precision bearings
- - Overhaul of lubrication circuit
- - 2-component epoxy painting
- - Overhaul of electronic equipment by fagor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
