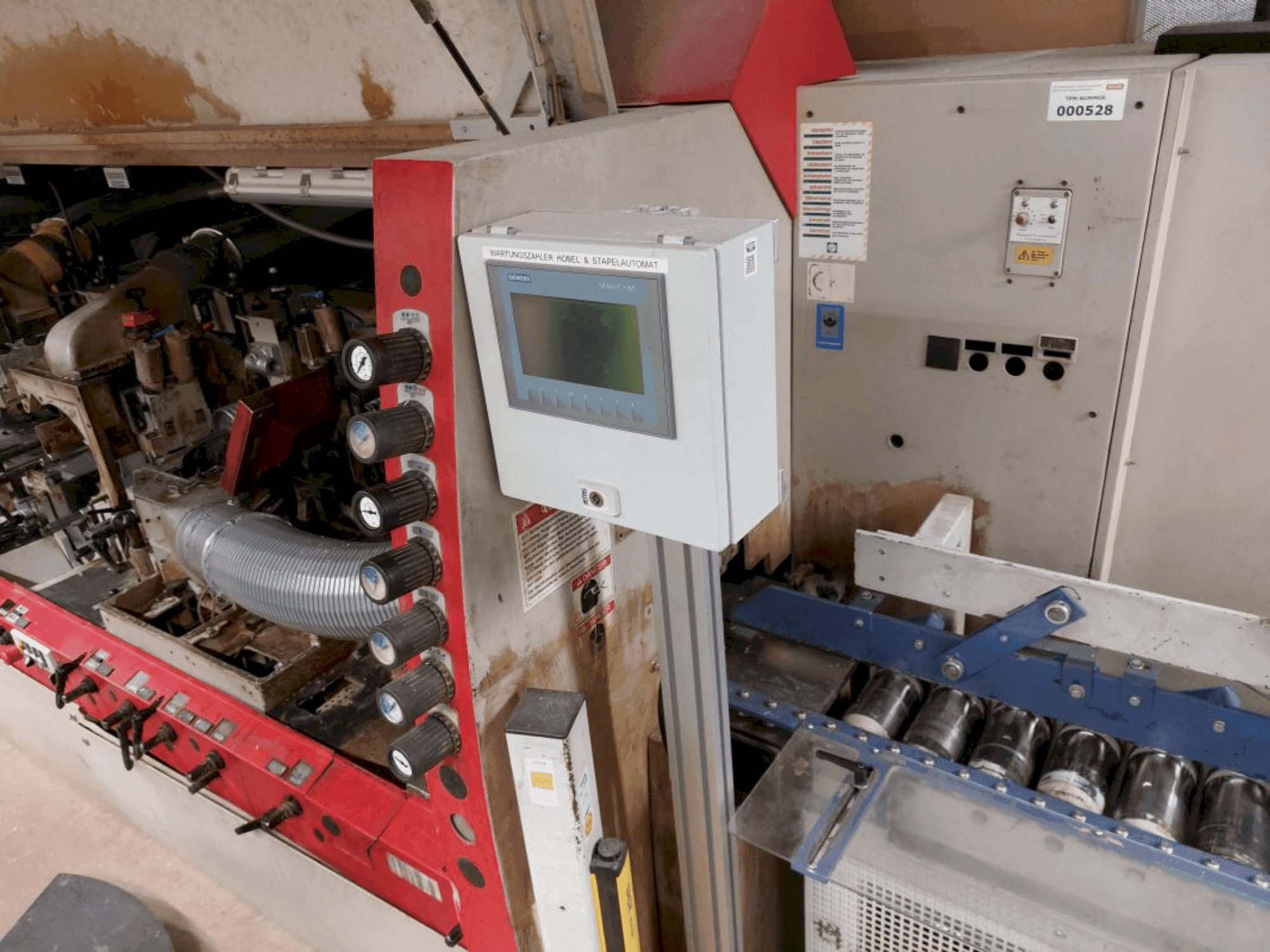

This Gabianni T-Module 80/1600 was manufactured in 1997. A robust planing machine, it's ideal for precise shaping and sizing of materials in various industrial applications. Contact us for more information.
Overview
- brand: GABIANNI
- year: 1997
- MODEL: T-Module 80/1600
- application type: Planing
- Location: Germany
- machine type: Planing Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - GABIANNI T-Module 80/1600
Control Unit
- Brand: SIEMENS
- Model: S7 300
Main drive
- Number of axis: 2
Additional Information
- - Control System: Vipa compatible with Simens S7 300 Technical Data of the DET Angle Transfer between DET and Planer: Length: 290 - 1600 mm (max 1800 mm) Width: 18 - 150 mm Thickness: 5.5 - 50 mm Density: 600 kg/m³ Max Output: 150 workpieces/min Conveyors: Belt conveyor after the double-end profiler Toothed belt conveyor with brushes as counterholder Cam conveyor for separation Toothed belt conveyor as buffer section Longitudinal push-off Roller conveyor in front of the planer Safety Technology Safety Gate Switch: 3 Safety Light Barriers: 1 Technical Data of the Planer Working Width and Working Height: Working Width: 20 - 230 mm (with tool diameter 125 mm) Working Height: 9 - 140 mm (for tool diameter 125 mm) Infeed Table: Length: 2000 mm Dressing Table Adjustment Range: 10 mm Adjustment Range of Jointing Ruler: 10 mm Levelling Table: Length: 1200 mm Adjustment Range Table: 10 mm Adjustment Range Ruler: 10 mm Spindles Motor Power: Dressing Spindle: 5.5 - 15 kW Joining Spindle: 5.5 - 11 kW Left Spindle: 5.5 - 11 kW Second Right Spindle: 5.5 - 11 kW Upper Spindle: 5.5 - 22 kW Lower Spindle: 5.5 - 22 kW Universal Spindle: 5.5 - 11 kW Feed Rate: Cardan Feed Infinitely Variable: approx. 6-36 m/min Motor Power: 4 - 8.6 kW
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
