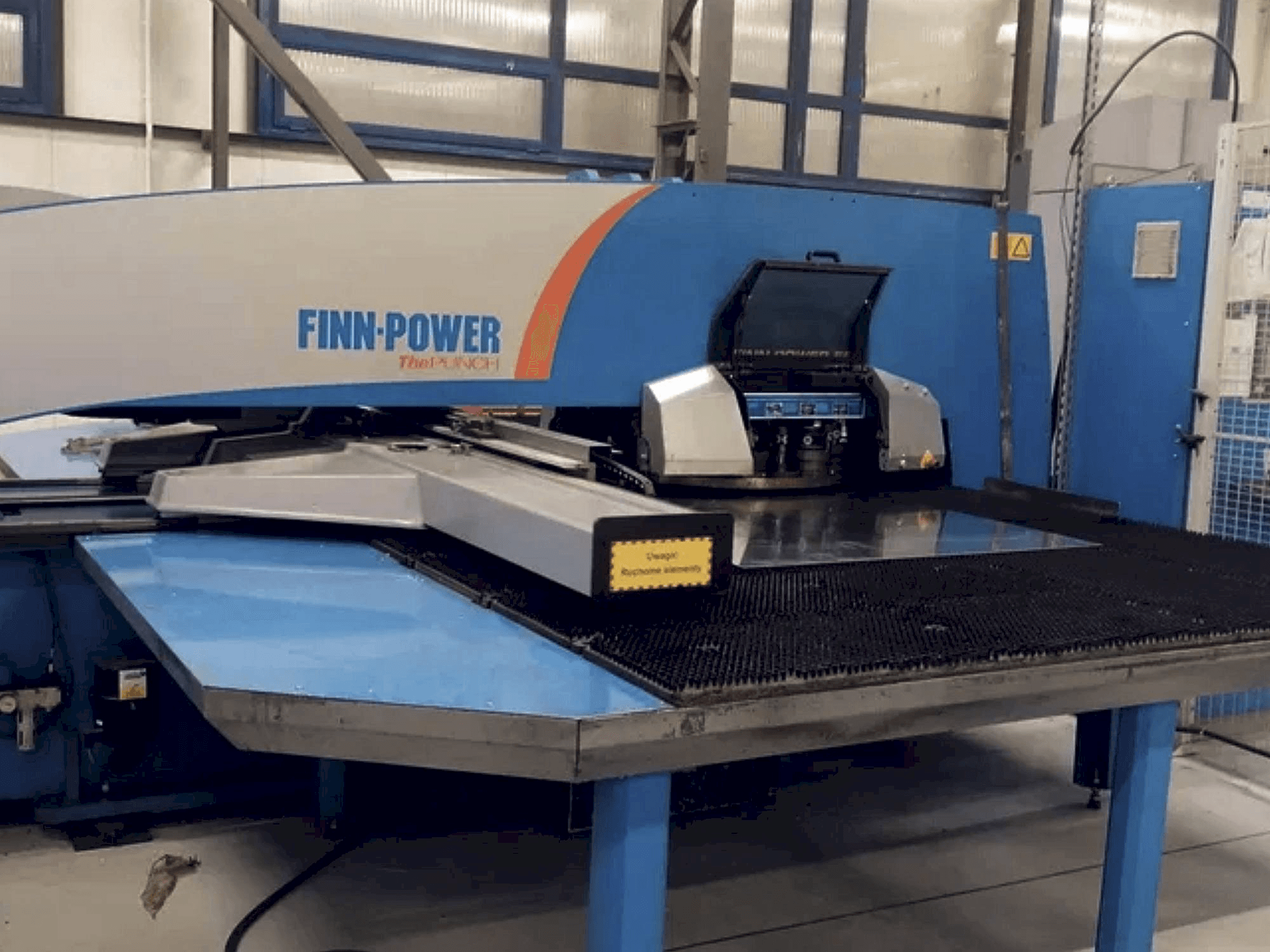

Finn-Power - E5xPL-PUN-FIN-2010-00001

Additional Equipment

• - Third (3rd) clamp
• - 5 indexing tools (size: 2xC, 2xB, 1xD)
• - Punching scrap removal directly to the box next to the machine
• - Foot switch for sheet clamp closing
• - Sheet distortion sensors
• - Automatic individual clamp move
• - Automatic closing clamps clamping
• - 1 station for Multitool 24-8

Additional Information

Machine history

• Material thickness: 8 mm

Machine Benefits

• Technical Machine Benefits:
  • - Sheet size x x y, max. : 2530 mm x 1270 mm ,sheet size x x y, min. : 300 mm x 100 mm ,sheet weight max. : 200 kg
  • - X traverse length: 2584 mm, x traverse axis speed, max. : 90 m/min
  • - Y traverse, length: 1317 mm, y traverse axis speed, max. : 60 m/min
  • - Sheet positioning speed 108 m/min
  • - Marking speed: 1800 1/min
  • - Nibbling speed (1 mm): 700 1/min
  • - Tool rotation 133 rpm
  • - Punching speed 700 hits/min
  • - Punch stroke: servo electric
  • - Stroke depth: numerically adjustable, stroke length: programmable
• Qualitative Machine Benefits:
  • - Ram speed: programmable
  • - Punch diameter max. : 89 mm
  • - Turret rotation 24 r/min
  • - Tools type: thick turret
  • - Tool change time: 1-3 sec

Extra information

• - Machine in good condition.

Payment Terms

• Payment in advance

• Asset Financing
