- ➤ Used Feeler VMP 30 - 2020 - Vertical Machining Center

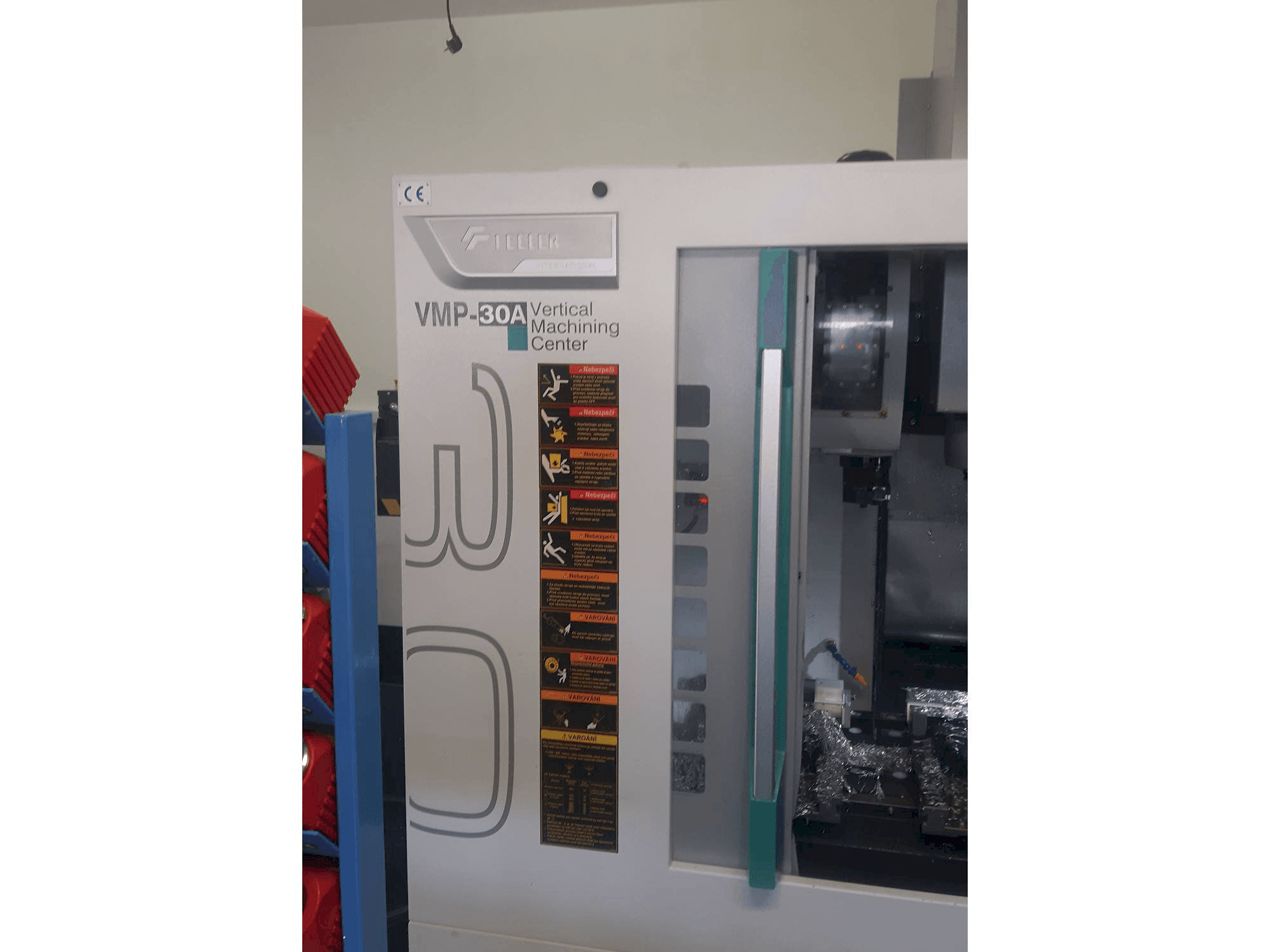

This Feeler VMP 30 Vertical Machining center was manufactured in the year 2020 in Taiwan and has 1100 production hours. It is equipped with a Fanuc Series Oi-MF control unit and has 3 axis. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained.
Overview
- brand: Feeler
- year: 2020
- MODEL: VMP 30A
- production hours: 1100
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Feeler VMP 30A
Control Unit
- Control Brand: FANUC
- Control Model: Series Oi-MF
Dimensions
- Machine Depth: 2255 mm
- Machine Height: 2370 mm
- Machine Weight: 3300 kg
- Table Length: 890 mm
- Table Width: 420 mm
Movement
- Number of Axes: 3
- X-axis Travel: 760 mm
- Y-axis Travel: 420 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Number of Tools: 20
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition!
Technical Machine Benefits
- Distance spindle nose-table 80-590 mm
- Tool change time 2 s
- Spindle motor power (cont. /30 min. ) 7. 5/11 kw
- Work feedrates 36 m/min.
- Rapid feedrate 36 m/min.
- Incl. 2 probes (tool and workpiece)
- Incl. Set of tool holders and 2x vice
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
