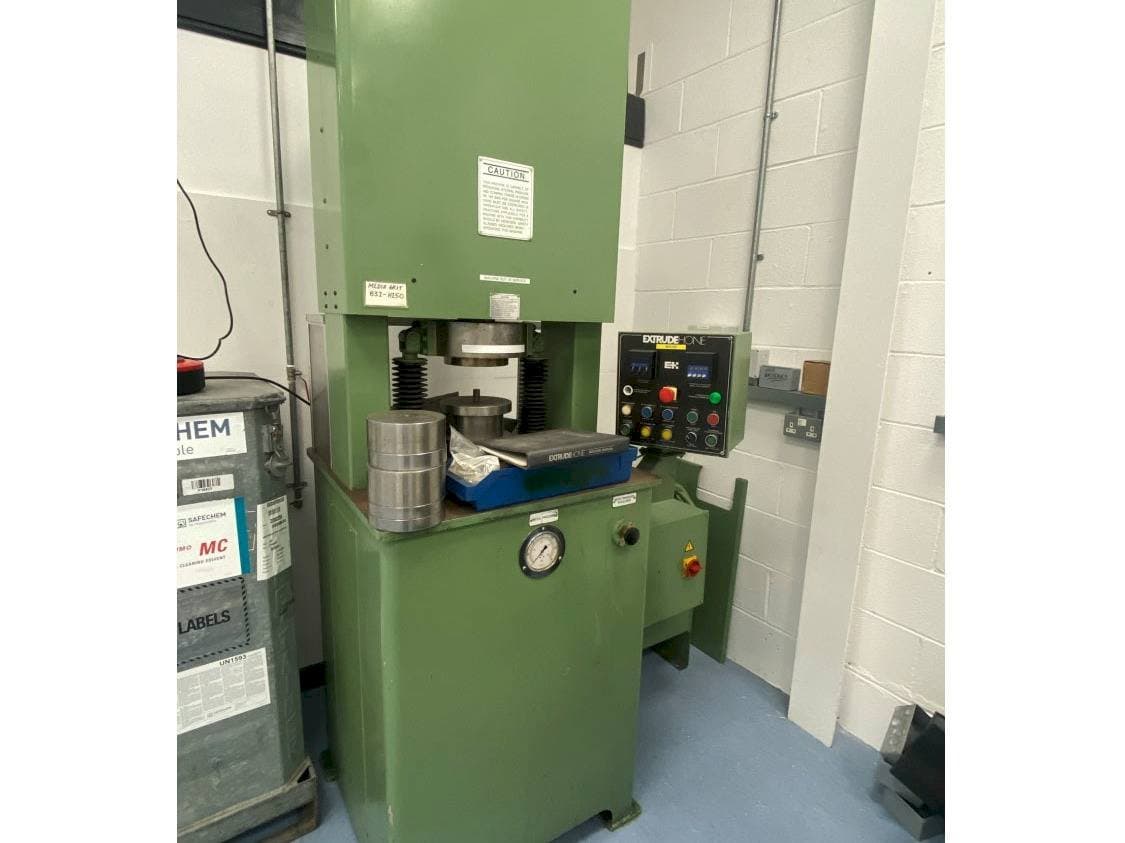

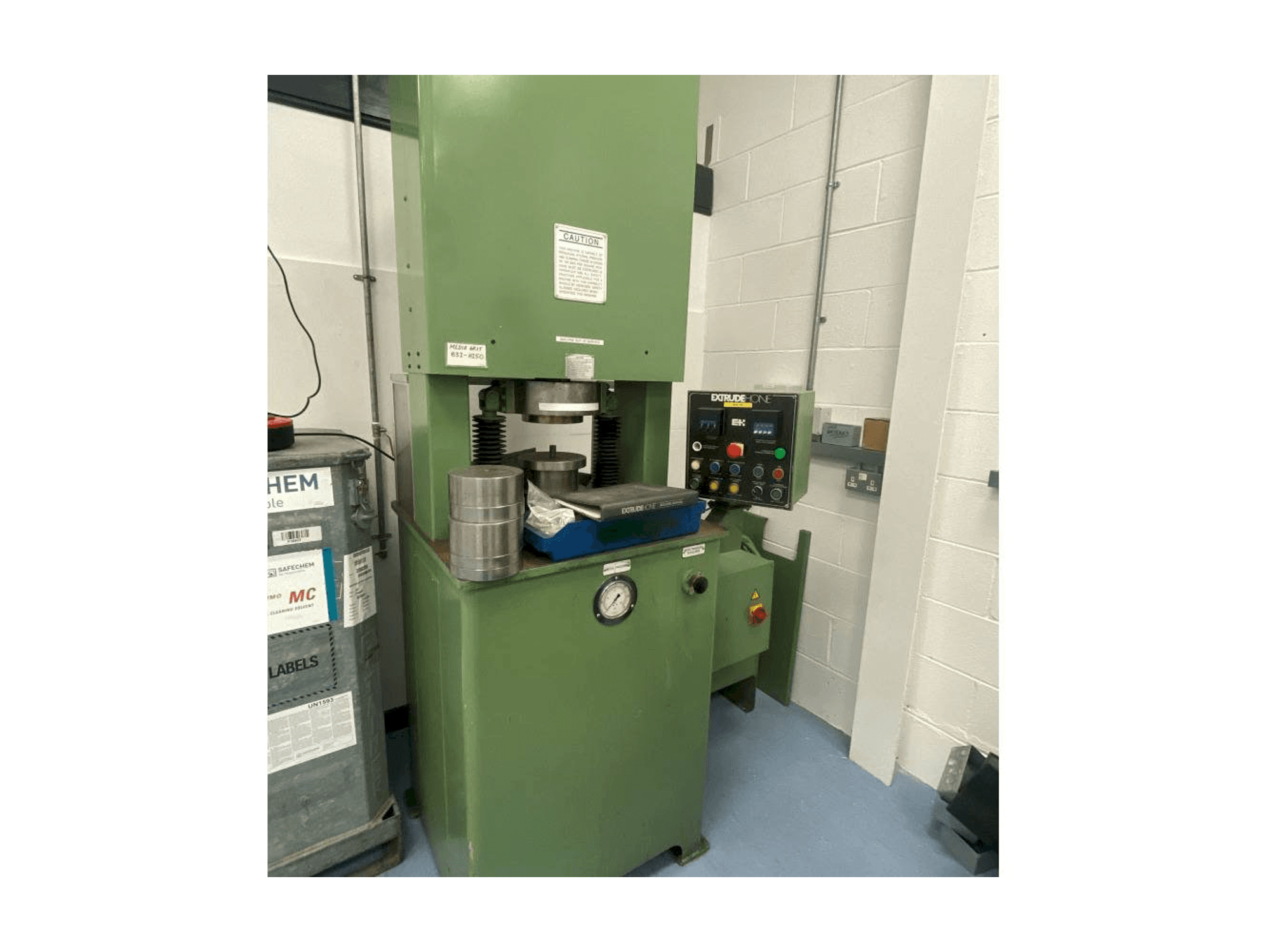

This Extrude Hone Vector Series Grinding machine was manufactured in the year 2006 in the United States. It is equipped with an Extrude Hone control unit and has 2 axis. The machine has a clamping force of 195-260kN.
Overview
- brand: Extrude Hone
- year: 2006
- MODEL: Vector Series
- application type: Honing
- Location: Ireland
- machine type: Horizontal Honing Machine
- availability: Sold
Technical Information - Extrude Hone Vector Series
General Data
- Measurements width: 1016 mm
- Measurements depth: 1016 mm
- Measurements height: 2699 mm
- Machine weight: 1590 kg
Main drive
- Number of axis: 2
Clamping unit
- Clamping force: 195-260 kN
Media
- Main electronic connection: 400 V
Additional Information
- Technical Machine Benefits:
- - Worktable height: 1213mm
- - Column spacing: 711mm
- - Maximum opening: 578mm
- - Hydraulic system
- - Pressure: 24-104 bar
- - Pump capacity: 18. 9l/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
