Euromac - STX FLEX 12 1500/22-2500SI-PUN-EUR-2018-00001

Name: Euromac STX FLEX 12 1500/22-2500
Brand: Euromac
SKU: SI-PUN-EUR-2018-00001
Price: 121150 GBP
Availability: InStock

£ 121,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Euromac STX FLEX 12 1500/22-2500 | For Sale

Show in original language

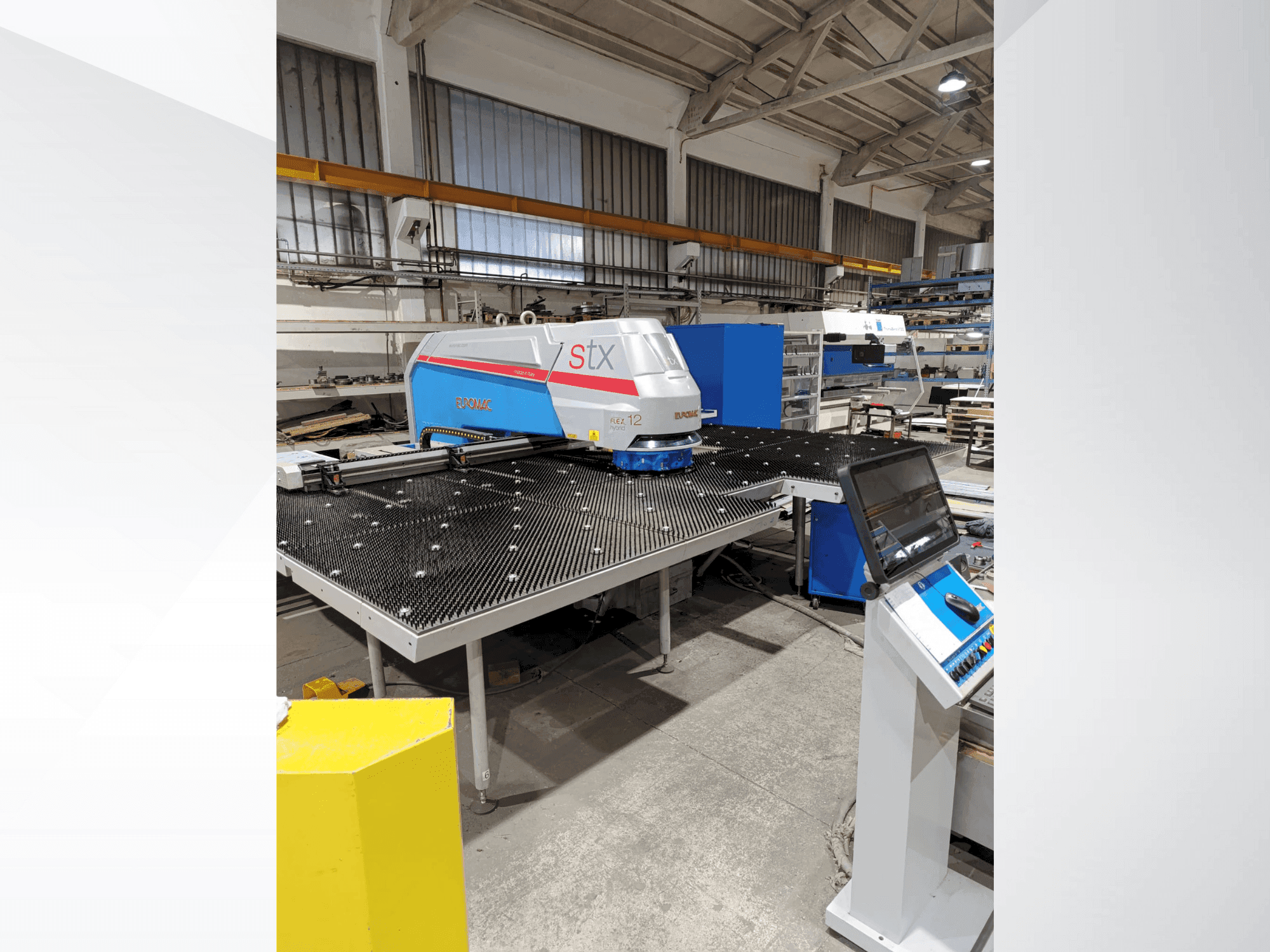

This 4-axis Euromac STX FLEX 12 1500/22-2500 was manufactured in 2018, designed for both punching and bending applications. Ideal for workshops requiring versatile and precise metal forming capabilities. Consider the opportunity to buy this Euromac STX FLEX 12 1500/22-2500 punching and bending machine. Contact us for more information.

Overview

brand: Euromac
year: 2018
MODEL: STX FLEX 12 1500/22-2500
application type: Punching
Location: Slovenia
machine type: Punching and Bending Machine
availability: Immediately

Technical Information - Euromac STX FLEX 12 1500/22-2500

General Data

Measurements width: 4850 mm
Measurements depth: 4850 mm
Machine weight: 9800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic repositioning (mm): up to 10000
- - Max material thickness (mm): 0. 6 - 6. 5 / max. Sheet weight at reduced speed (kg): 180
- - Stroke of y axis with a multitool/single-tool (mm): 1500/22-2500 /stroke of x axis (mm): 2500
- - Max. Number of autoindex stations: 5 / autoindex two-way stations (340°): 3 / autoindex rotation speed (rpm): 174
- - Max. Number of strokes (1/min): at 25 mm pitch: 425 / at 20 mm pitch: 460 / at 1 mm pitch (nibbling): 1080 / marking: 2000
- - Max. Punching force (kn): 220/ punch stroke adjustment range (mm): 0. 1 - 31 punching accuracy (mm): ±0. 05 / accuracy for shape repeatability (mm): ±0. 1 / clamp aperture (mm): 11
- - Tank capacity (liters): 135 / installed power (kw): 8. 5 / average power consumption (kw/h): 4. 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
