Euromac MTX Flex 12 Hybrid Punching Machine

Show in original language

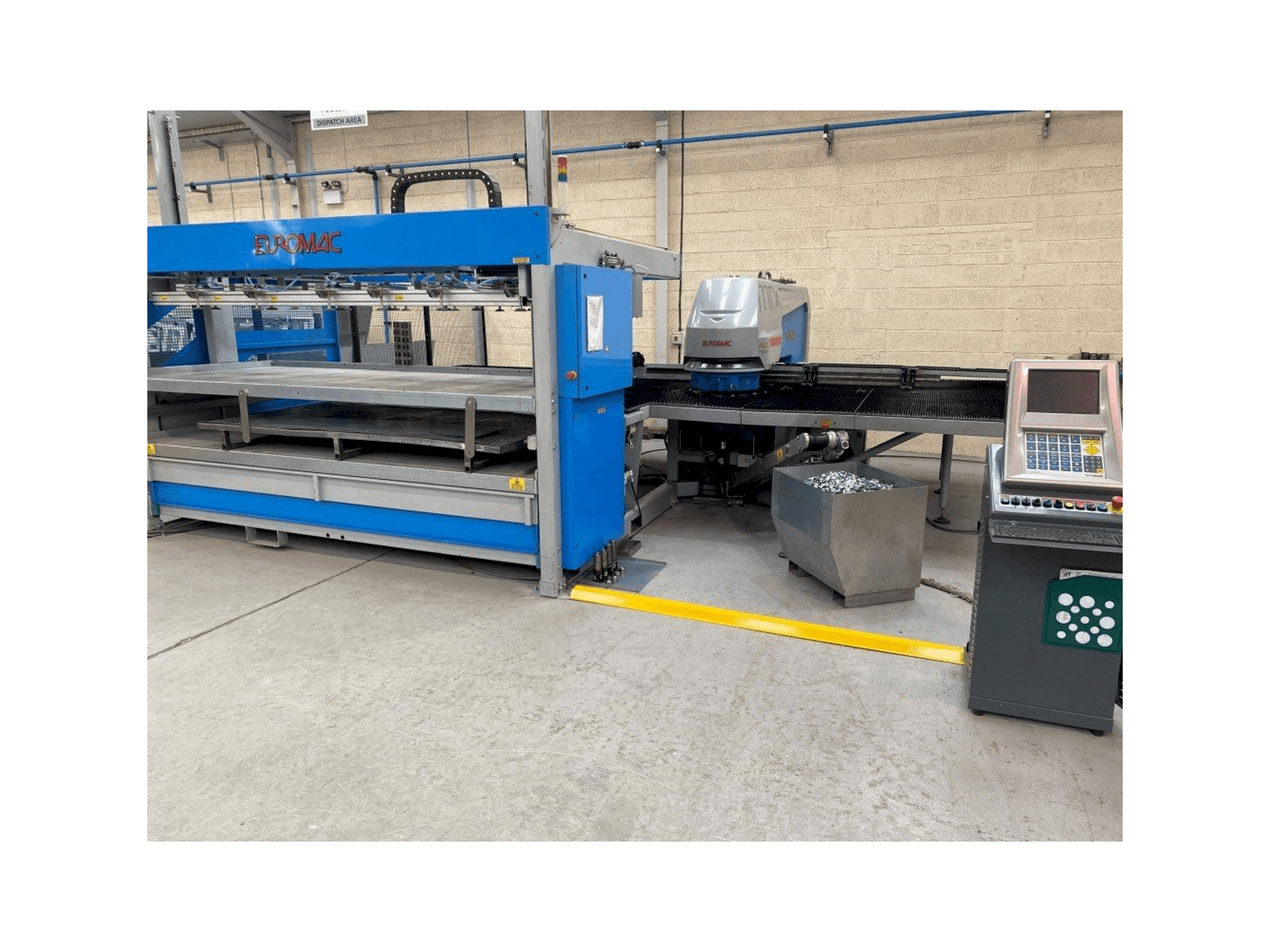

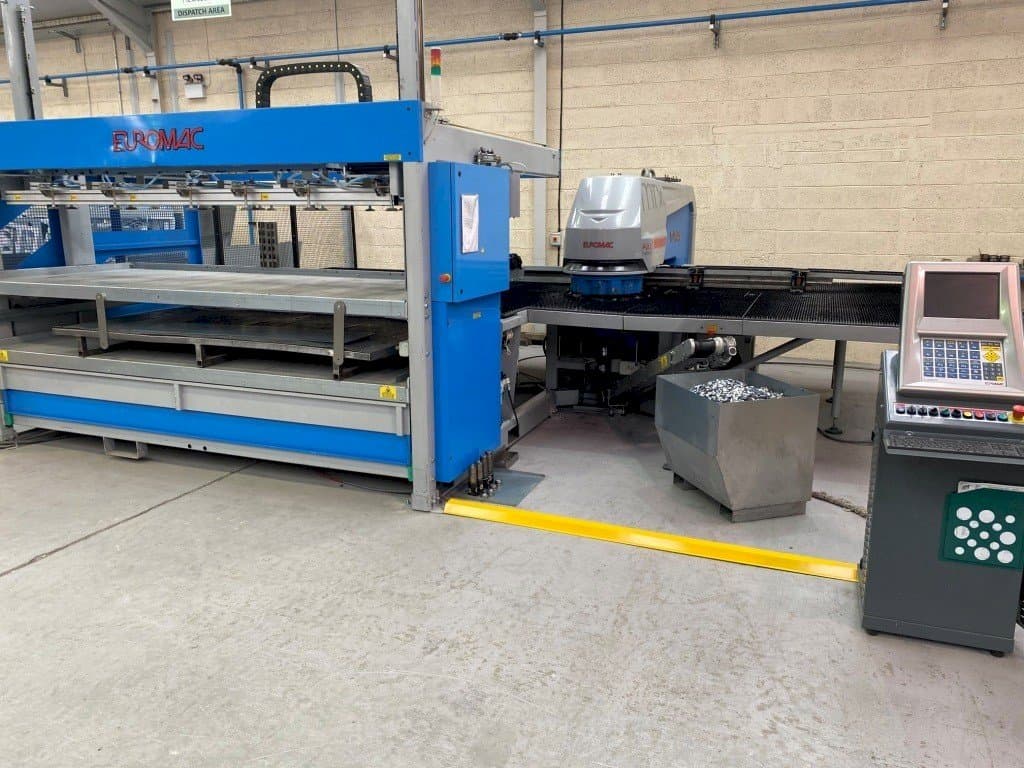

This Euromac MTX Flex 12 Hybrid Punching Machine was manufactured in the year 2014 in Italy. It has been working for only 5500 hours. It is equipped with a control unit of the same brand. This 2 axis machine can operate with a punching force of 300 kN. It includes automatic sheet loading/unloading system.

Overview

brand: Euromac
year: 2014
MODEL: MTX Flex 12 Hybrid
production hours: 5500
application type: Punching
Location: Ireland
machine type: CNC Punch Press
availability: Sold

Technical Information - Euromac MTX Flex 12 Hybrid

General Data

Measurements width: 4840 mm
Measurements depth: 3630 mm
Measurements height: 7300 mm
Machine weight: 2100 kg

Control Unit

CNC main language: English
CNC language customizable: Yes

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6 mm
Number of axis: 2

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Tools

Number of index: 3
Number of stations: 6

Max Material thickness

Steel: 6 mm

Media

Main electronic connection: 400 V
Power consumption: 8,5 kVA
Chip conveyor: Yes

Additional Equipment

- Euromac Automatic Sheet Loading/Unloading System
- Brush Table
- 2 X Automatic Repositioning Clamps
- Scrap Conveyor
- Safety Light Barriers
- Large Selection of Tooling

Additional Information

Machine history

Material type: Mild steel
Material thickness: 2 mm
End product: Electrical industry
Industries: Electrical enclosures

Machine Benefits

Technical Machine Benefits:
- - Automatic sheet loading/unloading system
- - Large selection of tooling
- - 2500mm in x axis
Qualitative Machine Benefits:
- - Machine in excellent condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
