- ERMAKSAN POWER BEND PRO 3100-175 Bending

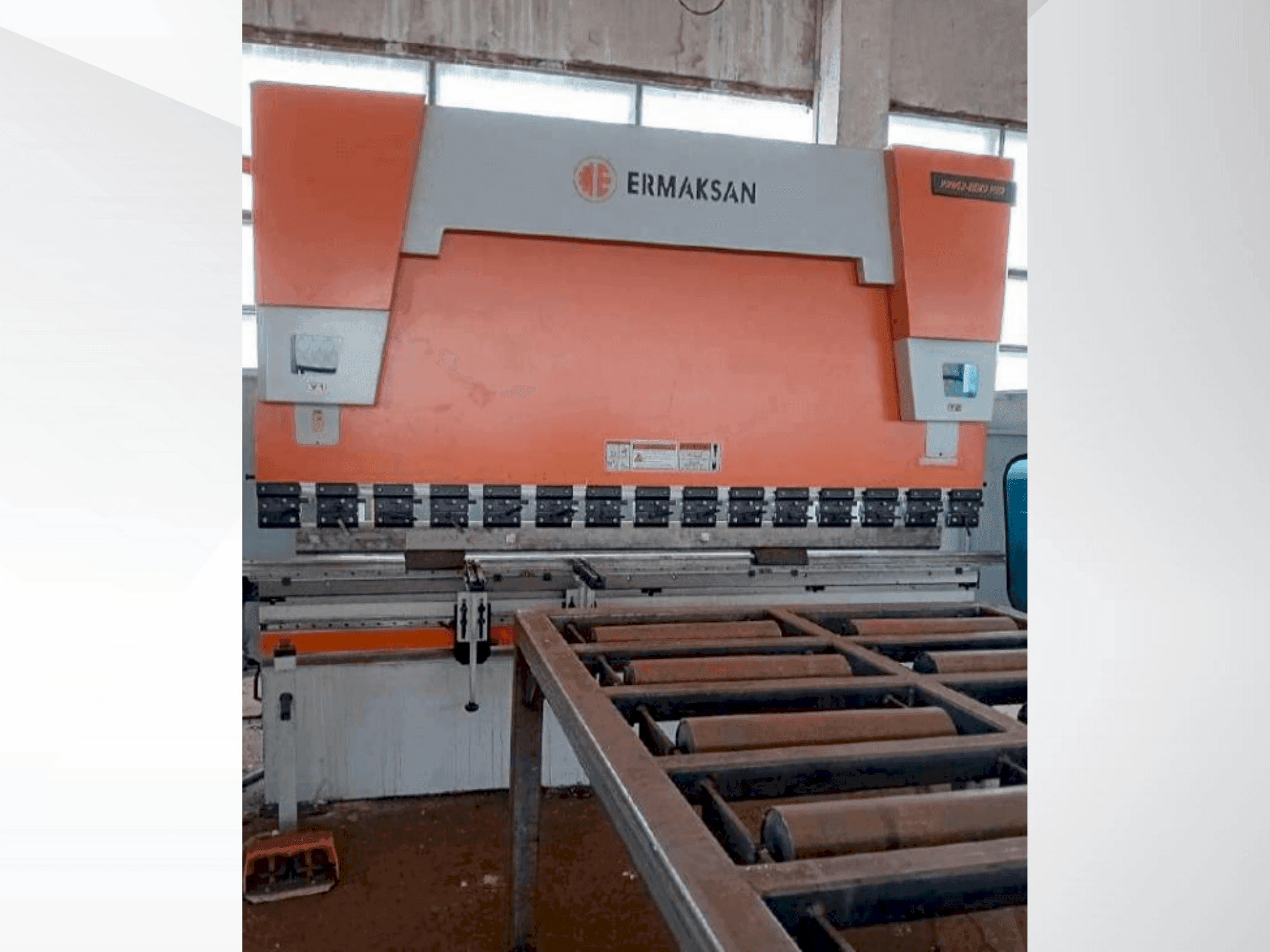

This ERMAKSAN POWER BEND PRO 3100-175 Bending machines machine was manufactured in 2018 in Turkey. The machine has a Cybelec cybtouch 12 PS 2D control panel with touch screen. It is equiped with a high-quality hydraulics HOERBIGER and a hydraulic cylinders are made of high-strength hardened steel and chrome plated, which guarantees their durability and longevity.
Overview
- brand: ERMAKSAN
- year: 2018
- MODEL: POWER BEND PRO 3100-175
- application type: Bending & Punching
- Location: Lithuania
- machine type: Press Brake
- availability: IMMEDIATELY
- control unit brand: CYBELEC
Technical Information - ERMAKSAN POWER BEND PRO 3100-175
General Data
- Measurements width: 2150 mm
- Measurements depth: 4250 mm
- Measurements height: 2800 mm
- Machine weight: 9450 kg
Control Unit
- Brand: CYBELEC
- Model: Cybtouch 12 PS 2D
Main drive
- Bending length: 3100 mm
- Main motor power: 15 kW
Additional Information
- Technical Machine Benefits:
- - Givi or heidenhain bending beam positioning rulers +- 0. 0025 mm
- - Precision x-axis rear mounts: +- 0. 05 mm // x axis 800 mm // x asies speed 500 mm/sec // r axis 350 mm/sek
- - 2 rear supports for positioning sheets // 2 front sheet supports moving along guides
- - System for quick fixation of bending knives // rear light barrier
- - Distance between column 2600 mm // depth 410 mm - height 900 mm
- - Engine power 15 kw
- - Leuze front light barrier, necessary for rapid movement of the press
- - Matrix 4b; b-16-22-35-50, along the entire length
- - Bending knife: ps. 135. 85. R08, along the entire length
- - Matrix 4v; v16-22-35-50 // bbending power 175 tlade: rolleri ps. 135. 85. R08 + extra blade and matrix
- Qualitative Machine Benefits:
- - Cybelec cybtouch 12 ps 2d control panel with touch screen
- - High-quality hydraulics hoerbiger
- - Hydraulic cylinders are made of high-strength hardened steel and chrome plated, which guarantees their durability
- - Siemens electrical components
- - Automatic compensation table (lower table lifting)
- - Mechanical height adjustment of the rear support along the r axis
- - Bending power 175 t // bending length 3100 mm
- - Oil reservoir capacity 200l
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
