ENGEL ES 23050/2500 DUO Injection moulding machine

Show in original language

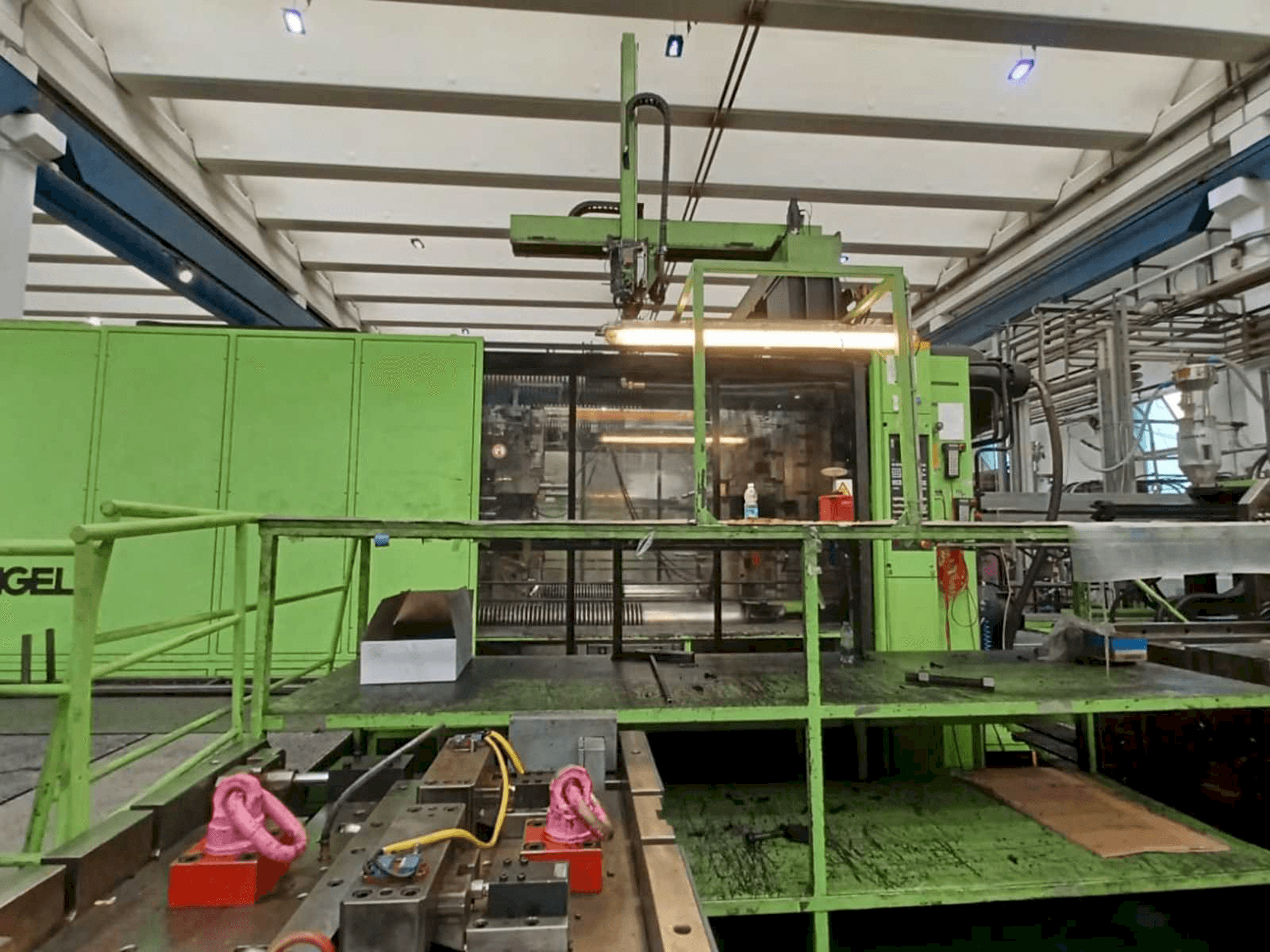

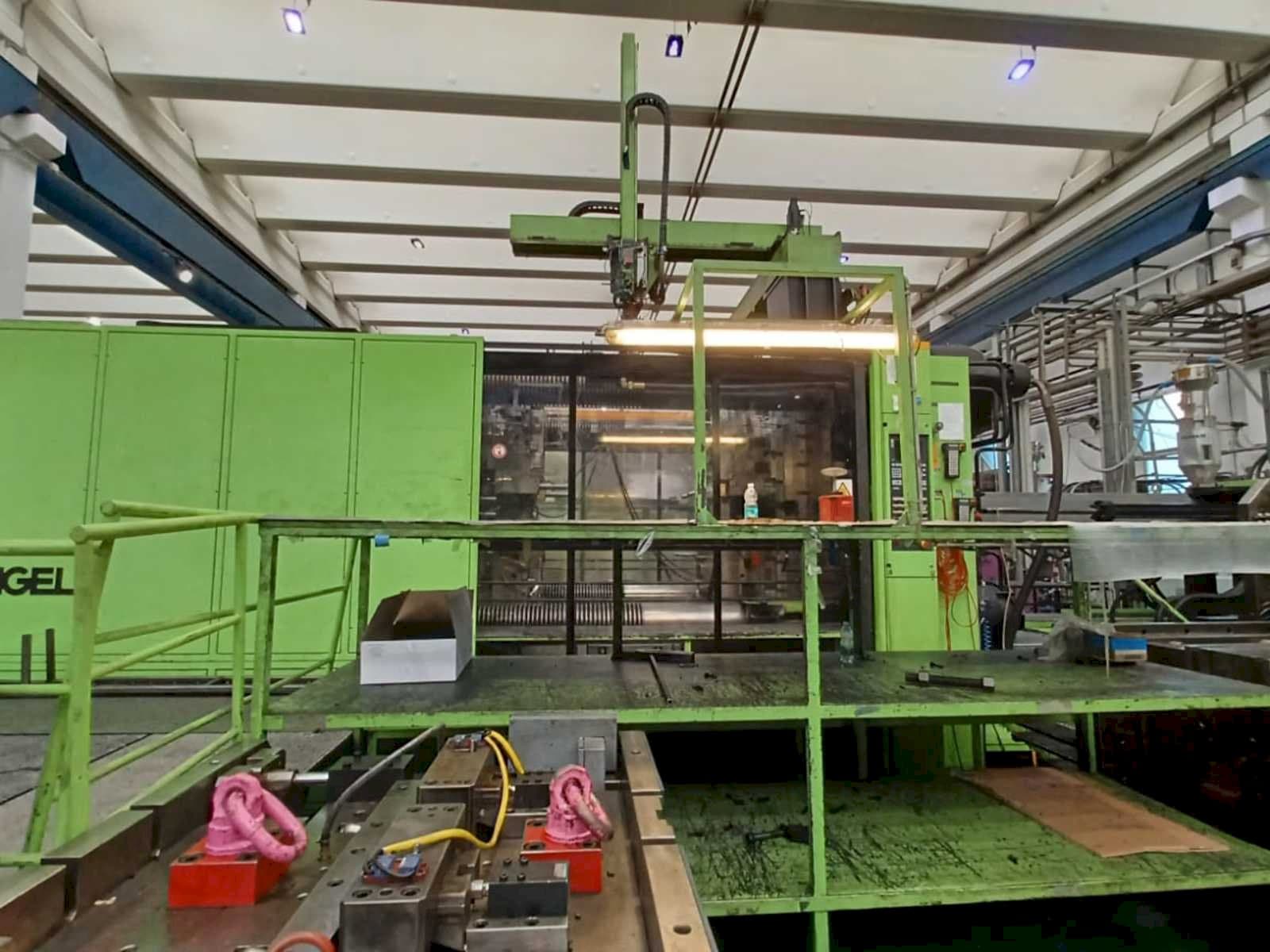

This ENGEL ES 23050/2500 DUO Injection moulding machine was manufactured in the year 1999 and has 91191 production hours. It is equipped with an Engel control unit. The machine has a clamping force of 25000 kN, is in good condition and well maintained.

Overview

brand: Engel
year: 1999
MODEL: ES 23050/2500 DUO
production hours: 91191
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel ES 23050/2500 DUO

General Data

Machine weight: 30000 KG

Control Unit

Brand: ENGEL

Main drive

Distance between bars: 2175 mm x 1750 mm

Injection Unit

Screw diameter: 150 mm

Clamping unit

Clamping force: 25000 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Opening power: 1600 kn
- - Opening lenght: 3100 mm
- - Diameter of the columns: 360 mm
- - Dosing lenght: 720 mm
- - Max injected volume: 12725 cm2
- - Rotational speed of the screw: 85 rpm
- - Specific injection pressure: 1410 bar
- - Heating potence: 120 kw
- - Heat zones: 7
Qualitative Machine Benefits:
- - The robot is included
- - The machine is in very good condition, with all the minor maintenances done by internal service and the most important ones done directly by engel.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
