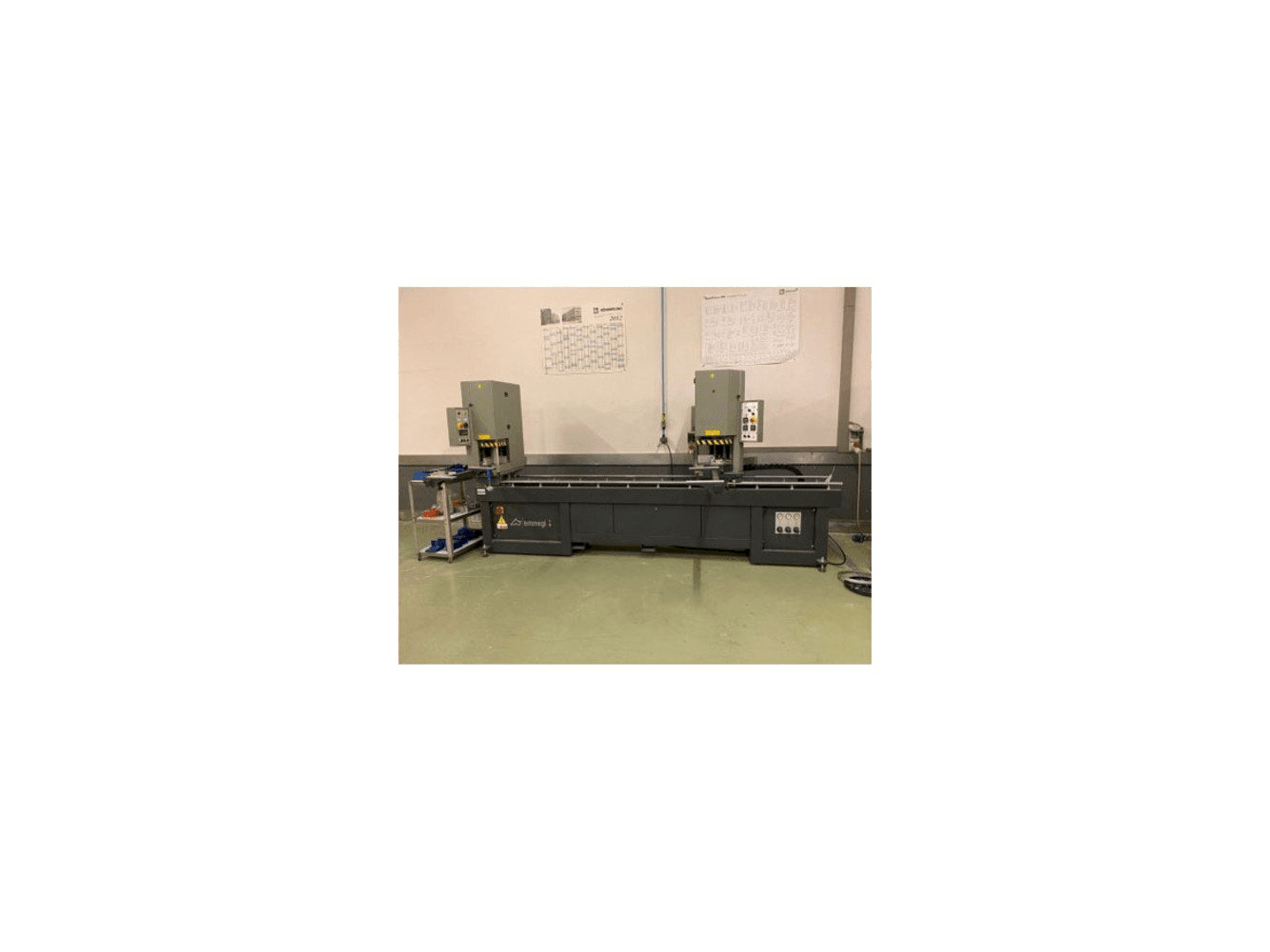

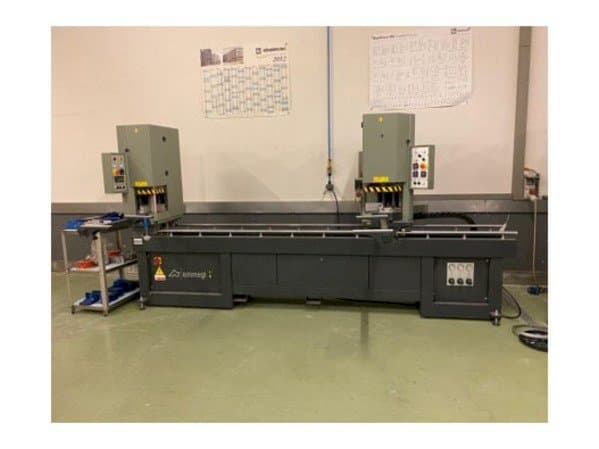

Emmegi FUSION 2LV 3440 automatic cycle inline welding machine

Show in original language

This Emmegi FUSION 2LV 3440 automatic cycle inline welding machine was manufactured in the year 2009 in Italy. The operating cycle is controlled by PLC. The machine has a maximum profile width of 90° welding of 150 mm, and a maximum profile width of 180° welding of 230 mm, is in excellent condition, working, and is complete with accessories.

Overview

brand: Emmegi
year: 2009
MODEL: FUSION 2LV 3440
application type: Other Machine Tools
Location: Switzerland
machine type: Machine Tool
availability: Sold

Technical Information - Emmegi FUSION 2LV 3440

General Data

Measurements width: 1000 mm
Measurements depth: 4000 mm
Measurements height: 1900 mm
Machine weight: 900 kg

Media

Power consumption: 5 kw

Additional Equipment

- Including independent screen and keyboard

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Usable weld (long / short) (mm) 3. 440 / 2. 440
- - Min weld size (mm) 420
- - Plate size on fixed head (length x width x thickness) (mm) 250 x 300 x 13
- - Dimensions of the plate on the moving head (length x width x thickness) (mm) 340 x 300 x 13
- - Maximum profile width - 90° welding (mm) 150
- - Maximum profile width - 180° welding (mm) 230
- - Maximum profile height (standard / without spacer) (mm) 160 / 200
- - Min height of the profile (mm) 40
- - Automatic spacing at the end of welding
- - Welding bead (settable during the configuration phase) (mm) 0. 2 ÷ 2
Qualitative Machine Benefits:
- - Machine in excellent condition, working and complete with accessories
- - Heated curb limiters
- - Welding temperature control (°c) 0 ÷ 260
- - Bead temperature control (°c) 0 ÷ 50
- - Welding time adjustment
- - Setting the cooling time

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
