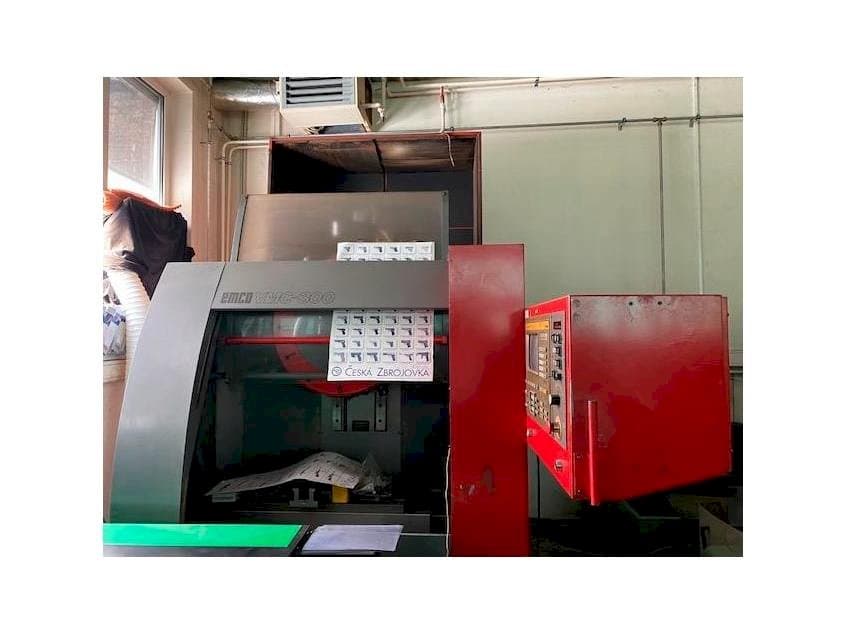

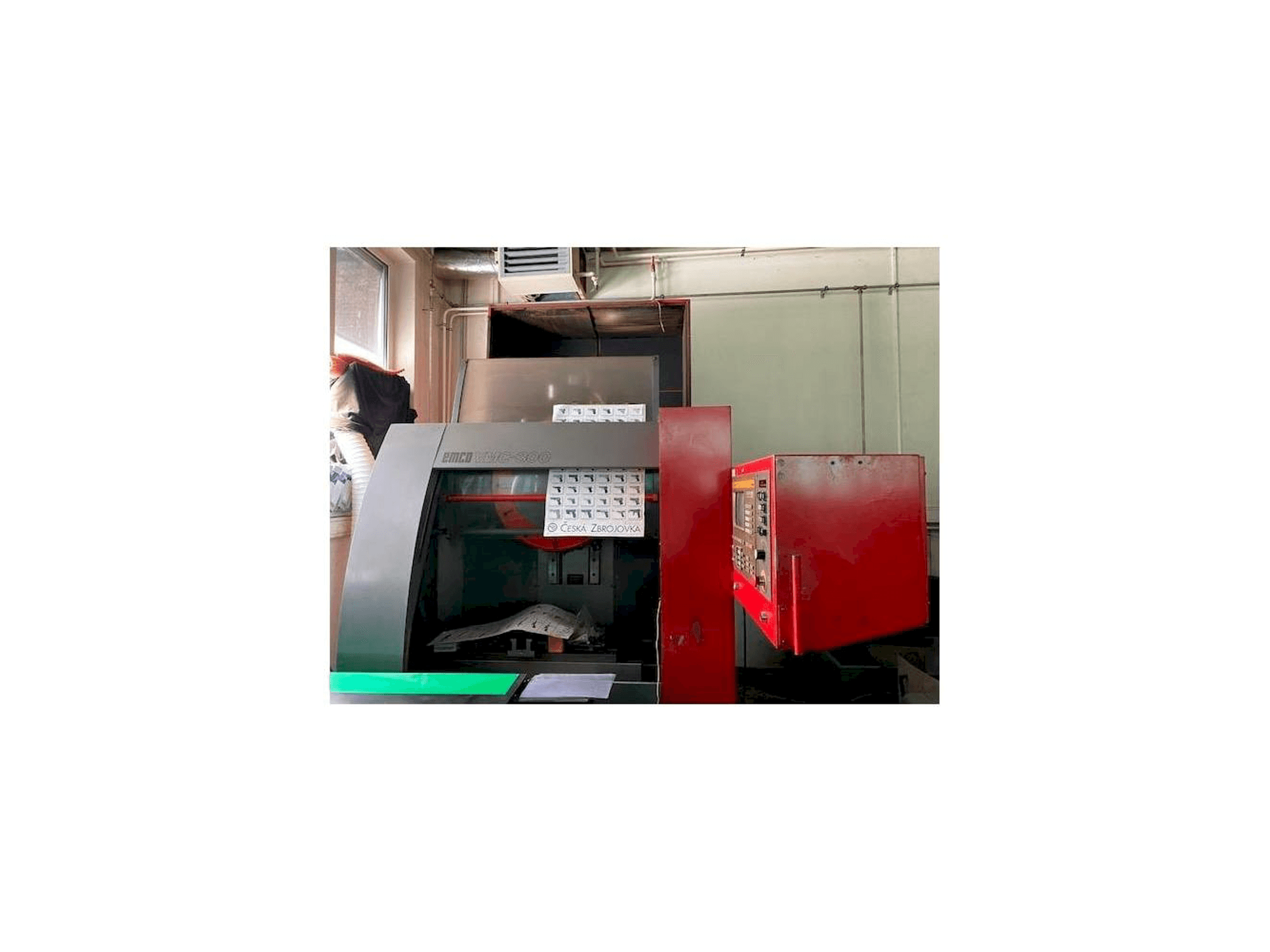

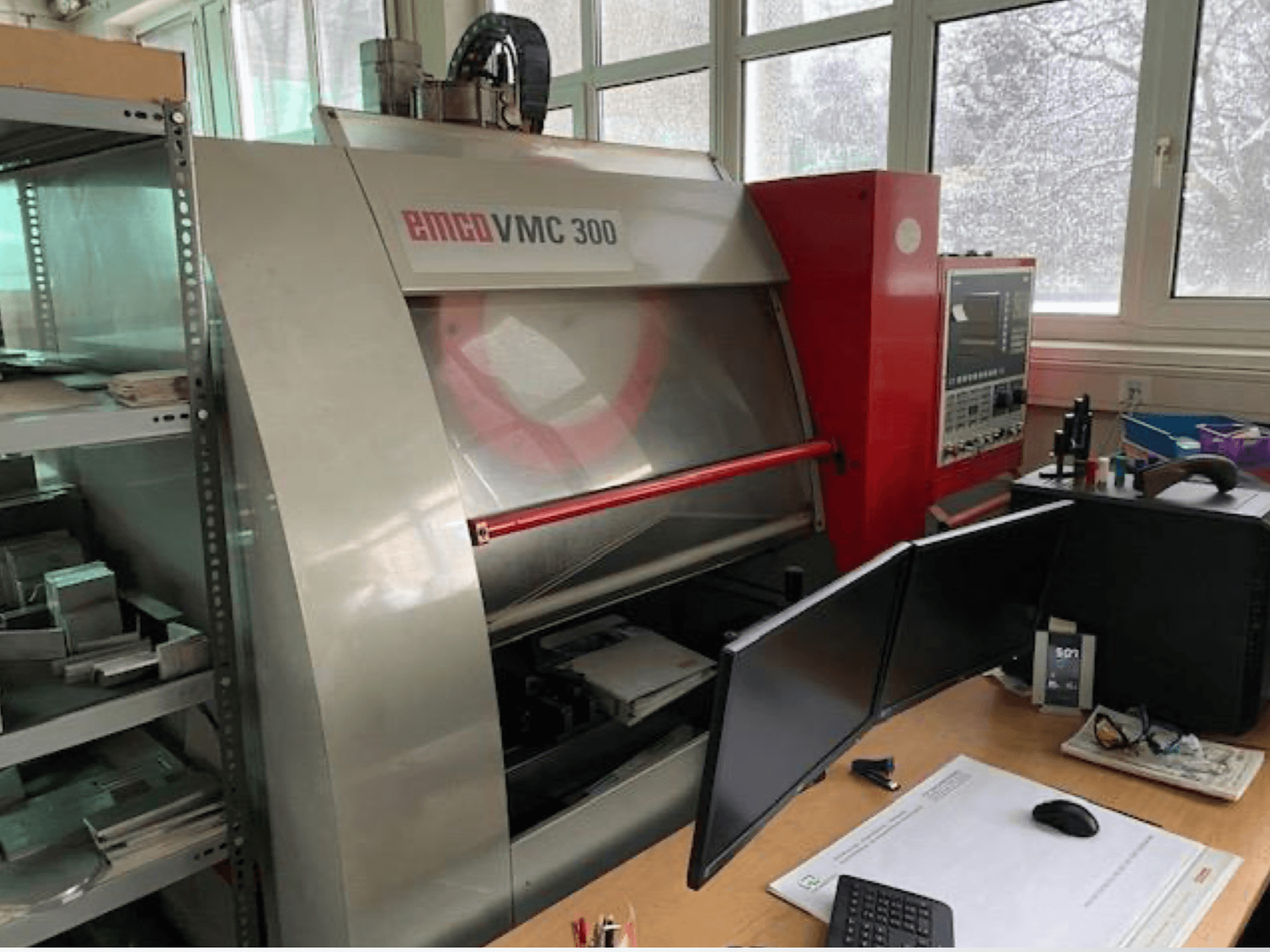

This Emco VMC 300 Vertical Machining center was manufactured in the year 2003 in Austria. It is equipped with a SIEMENS SINUMERIK control unit.
Overview
- brand: EMCO
- year: 2003
- MODEL: VMC 300
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - EMCO VMC 300
General Data
- Measurements width: 2400 mm
- Measurements depth: 2300 mm
- Measurements height: 2450 mm
Control Unit
- Model: SINUMERIK
- Brand: SIEMENS
Main drive
- Spindle speed range: 5000 RPM 1/MIN
- Spindle motor power: 9/11 kW
- Tool taper: SK 40
- Number of axis: 3
Movement
- X-AXIS Movement: 420 MM
- Y-AXIS Movement: 330 MM
- Z-AXIS Movement: 240 MM
Table
- Outer length: 850 mm
- Outer width: 325 mm
- TSlots size: 3 according to DIN 650, 14 mm width, 100 mm spacing
- Table load: 150 kg
Tools
- Number of stations: 12
- Max tool diameter: 100 mm
- Max tool length: 220 mm
Additional Equipment
- - Max Torque: 100 Nm (at 5000 RPM), 78 Nm (at 8000 RPM option)
- - Tool Change Time: T1: 5.8 s, T2: 3.9 s, T3: 3.9 s // Span-to-span Time (VDI 2852): T1: 8.9 s, T2: 7.0 s, T3: 7.0 s
- - Coolant System: Tank capacity 100 liters / Flow rate 10 l/min / Max delivery pressure 3.7 bar / 4 external nozzles
- - Lubrication System: Automatic central lubrication for guideways and ball screw spindle / Grease lubrication for main spindle bearings
- - Pneumatic Connection / System pressure 5 - 10 bar
- - Minimum air flow 750 l/min / Average air consumption 180 l/min
- - Electrical Connection: Power supply 3/PE ~ 400 V 50/60 Hz / Connected load 15 KVA / Main fuse 35 A slow-blow
Additional Information
- Technical Machine Benefits:
- - Qualitative machine benefits:
- - Reliable tool change system with 12 stations
- - Integrated automatic lubrication system for guideways and ball screw spindles
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
