- ➤ Used DMG Sauer Lasertec 40 | Laser engraving & cutting

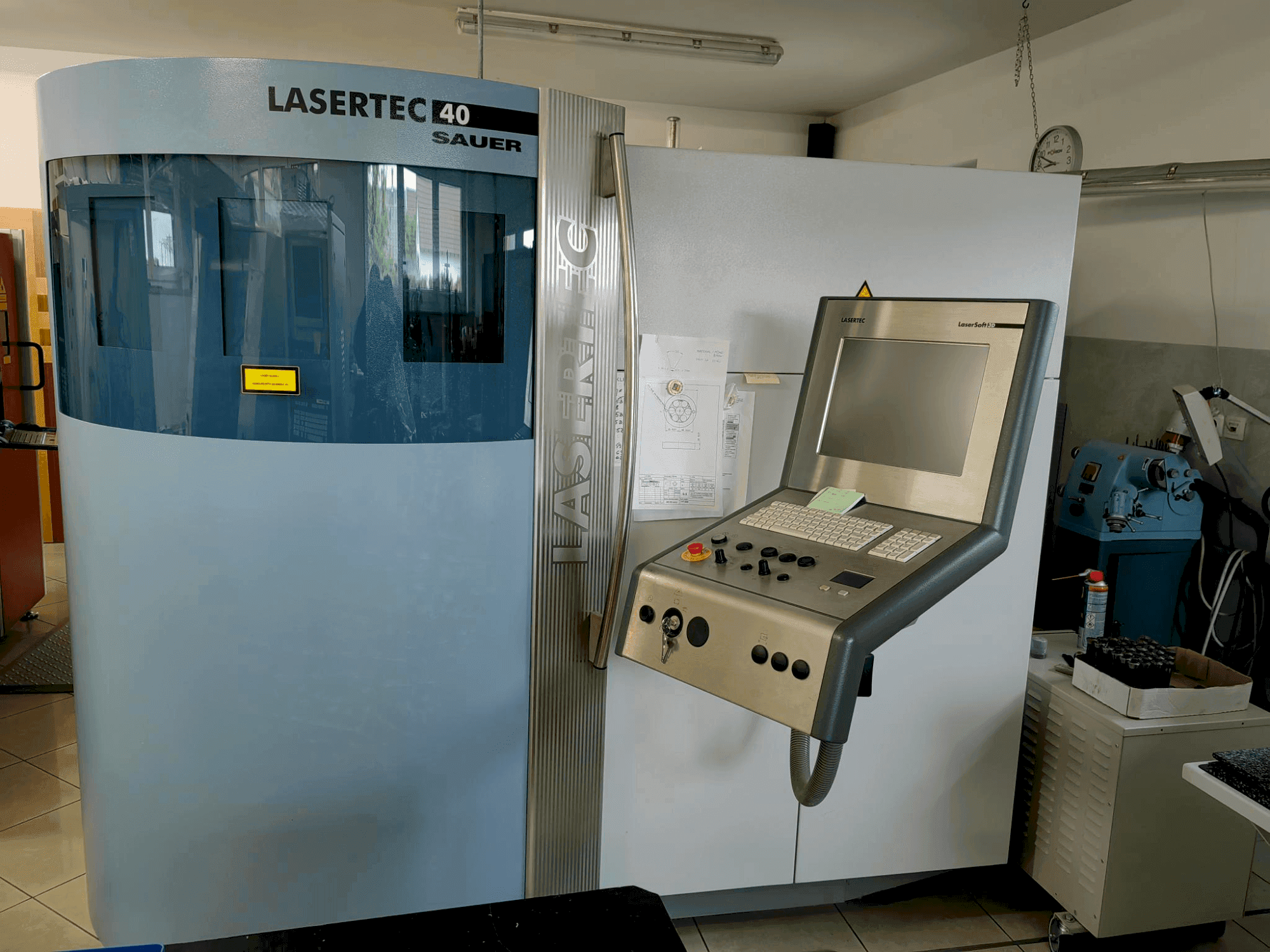

This 4-axis DMG SAUER LASERTEC 40 Laser engraving and cutting machine was manufactured in 2008. It utilizes a Nd:YVO4 laser with a wavelength of 1064 nm, ensuring precise and detailed work. The machine features an acousto-optic Q-Switch for pulse enhancement, contributing to its efficiency and quality. A cooling system using deionized water maintains optimal temperature during operations. Buy this DMG SAUER LASERTEC 40 Laser engraving and cutting machine. For more information about this laser engraving and cutting machine, please reach out to us.
Overview
- brand: DMG
- year: 2008
- MODEL: SAUER LASERTEC 40
- application type: Other Sheet Metal Machinery
- Location: Slovenia
- machine type: Laser Engraving Machine
- availability: Immediately
- control unit brand: BROTHER
Technical Information - DMG SAUER LASERTEC 40
General Data
- Measurements width: 2846 mm
- Measurements depth: 1671 mm
- Measurements height: 2274 mm
- Machine weight: 2250 kg
Control Unit
- Model: TC 22A
- Brand: BROTHER
Main drive
- Number of spindles: 1
- Spindle speed range: 12-20000 1/MIN
- Tool taper: HSK-A40
- Laser type: Nd:YVO4
- Number of axis: 4
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 410 mm
Workpiece
- Workpiece weight: 200 kg
Table
- Outer length: 650 mm
- Outer width: 400 mm
Additional Equipment
- - Maximum tool storage capacity: 18 Maximum tool diameter: 55 mm Maximum tool length: 200 mm Tool changing time: 0.7 sec
- - Machine Specific Data
- - Spindle speed in tapping: 8000 rpm
Additional Information
- Technical Machine Benefits:
- - Distance from table top surface to spindle nose: 200-610 mm
- - Distance from column front to axis of spindle: 294 mm
- - Laser class: 4
- - Wavelength: 1064 nm
- - Pulse enhancement: acousto-optic/her q-switch
- - Cooling medium: deionized water
- - Conductivity: 5-10 µs/cm
- - Feed rates:Rapid traverse: 56,000 mm/min Cutting feedrate: 5-20,000 mm/min Manual feedrate: 50-40,000 mm/min
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
Products related to DMG SAUER LASERTEC 40
CTV 250 (V3)
DMG - Vertical Turning Machine
DMU 50 evo linear
DMG - Vertical Machining Centre
LRS EVO 160W
ORLaser - Laser Welding Machine
CTX 320 linear
DMG - Turn-Mill Centre
Speedmarker 700 SM700HT
Trotec - Laser Marking Machine
SW TOOL OPEN II
ROFIN - Laser Welding Machine

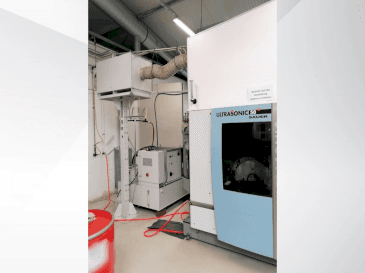

Sauer Ultra sonic 50
DMG - Universal Machining Centre
Speedy 360
Trotec - Laser Engraving Machine

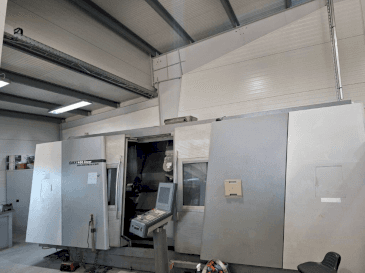

GMX 400l Stange
