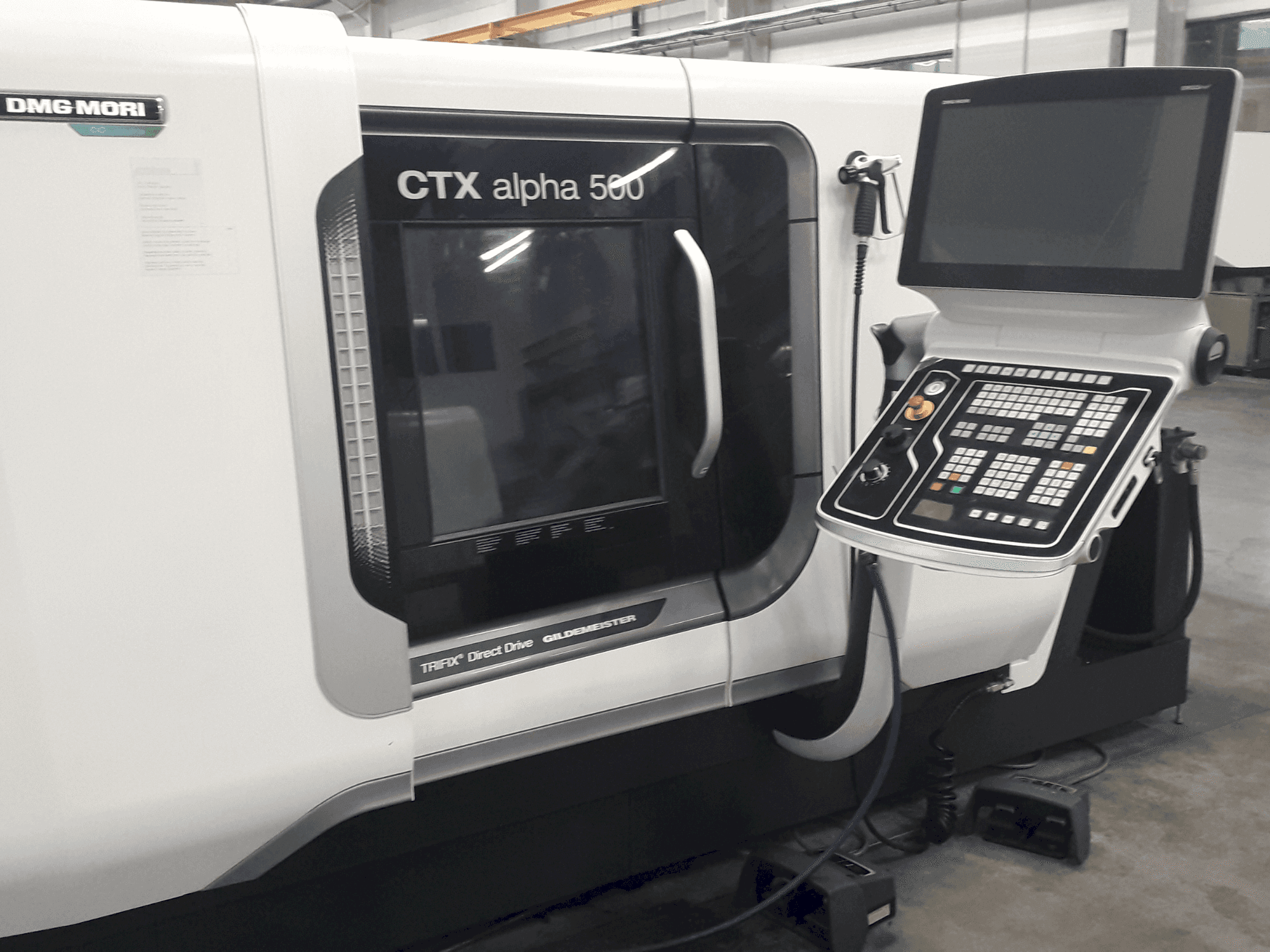

DMG MORI - CTX Alpha 500 V6HU-TUR-DMG-2021-00002

Additional Equipment

• - CELOS Products
• - DMG MORI Service Agent
• - DMG MORI NetService
• - DMG MORI IoT Connector
• - DMG MORI Messenger V2 SERVICE Camera
• - Tail Stock
• - Standard

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Hydraulic cylinder with Ø52 mm through-hole
  • - 12-position sauter turret
  • - Vdi 30 tool mounting (din 69880-30)
  • - Live tool interface (din 5480 standard)
  • - Direct measuring scale on the x-axis
  • - Tool system for turret: trifix® system (din 69880, vdi 3425, din 5480)
  • - Y-axis: ±40 mm travel

Extra information

• - Main Spindle Chuck SMW-Autoblok BBD 170/52 Counter Spindle Chuck SMW-Autoblok BBD 175/52 Counter Spindle Option Programmable tailstock force: Adjustable between 80-300 daN Media Coolant filtration: Dual-cartridge filter (50 μm) Coolant cleaning: External flushing system for spindles Coolant tank with 6-bar pump Automation Bar machining package: Fully hydraulic cylinder Ø52 mm Workpiece catcher with conveyor for parts Ø51 × 185 mm (max 3 kg) 4-color operating mode signal light Bar loader interface compatible with IEMCA, Breuning IRCO, LNS

Payment Terms

• Payment in advance

• Asset Financing
