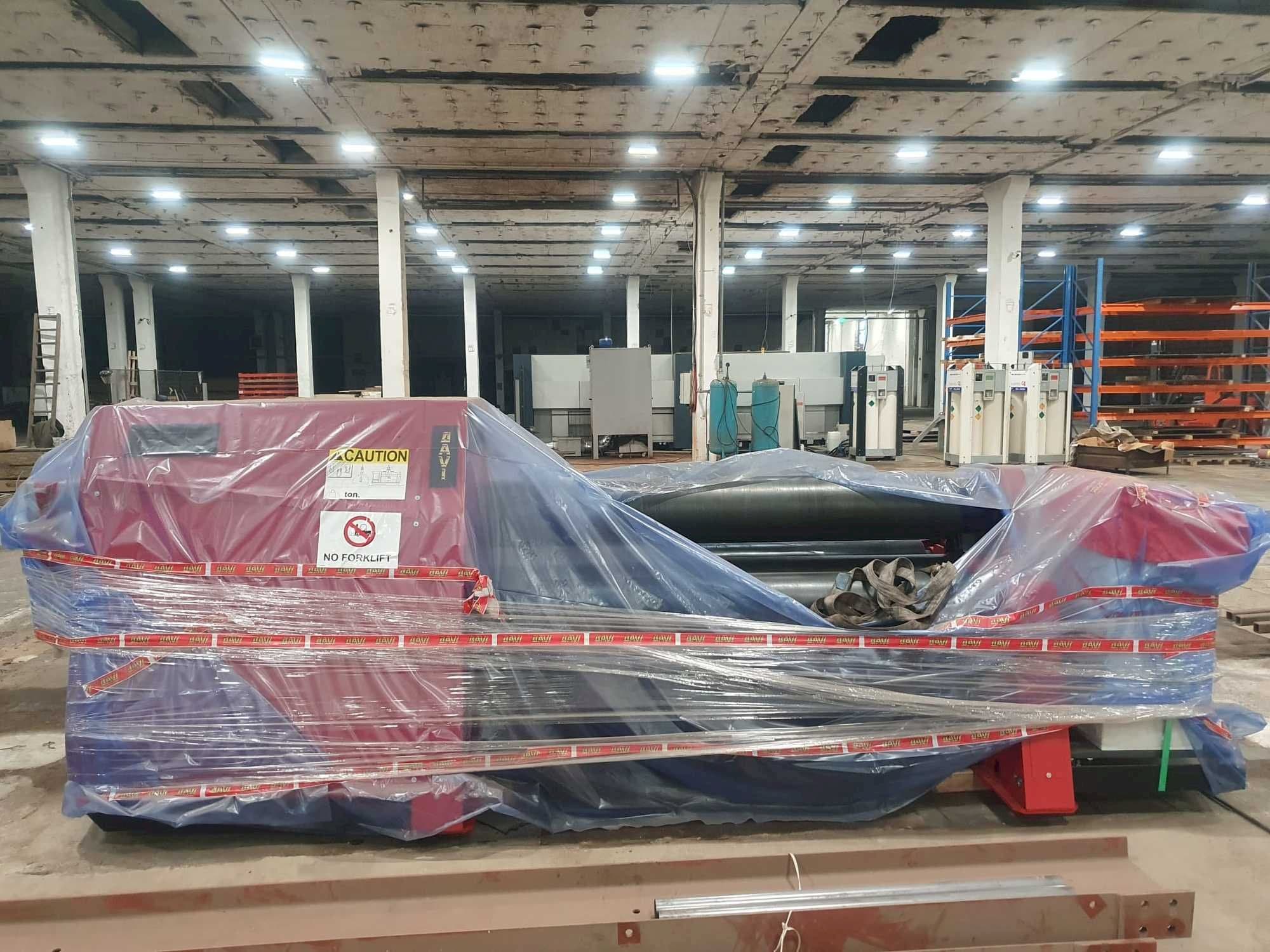

DAVI MCB E20 Hygraulic Plate Roll Bending machine

Show in original language

This DAVI MCB E20 Hygraulic Plate Roll Bending machine was manufactured in the year 2021 in Italy. The machine has a Rolling speed of 6 m/min and a Max material thickness of 26 mm.

Overview

brand: Davi
year: 2021
MODEL: MCB E20
application type: Bending
Location: Latvia
machine type: Roll Bending Machine
availability: Sold

Technical Information - Davi MCB E20

General Data

Measurements width: 3853 mm
Measurements depth: 1600 mm
Measurements height: 1540 mm

Main drive

Pressing force: 6500 kN

Max Material thickness

Steel: 26 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of rolls: 4
- - Full hydraulic plate roll
- - Equipped with the following optional accessories: surface hardened rolls, cone rolling package, emergency safety system, davi 'iroll easy' control
- - The machine is complete with instruction manual
- - Ec declaration of conformity
- - Rolls length / free access 2050 mm.
- - Top roll diameter 290 mm
- - Less deflecting thanks to planetary guide technology.
- - Bottom roll diameter 270 mm
- - Side rolls diameter 210 mm.
Qualitative Machine Benefits:
- - Rolling speed 6 m/min
- - Installed power hp 25 (energy saving technology)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
