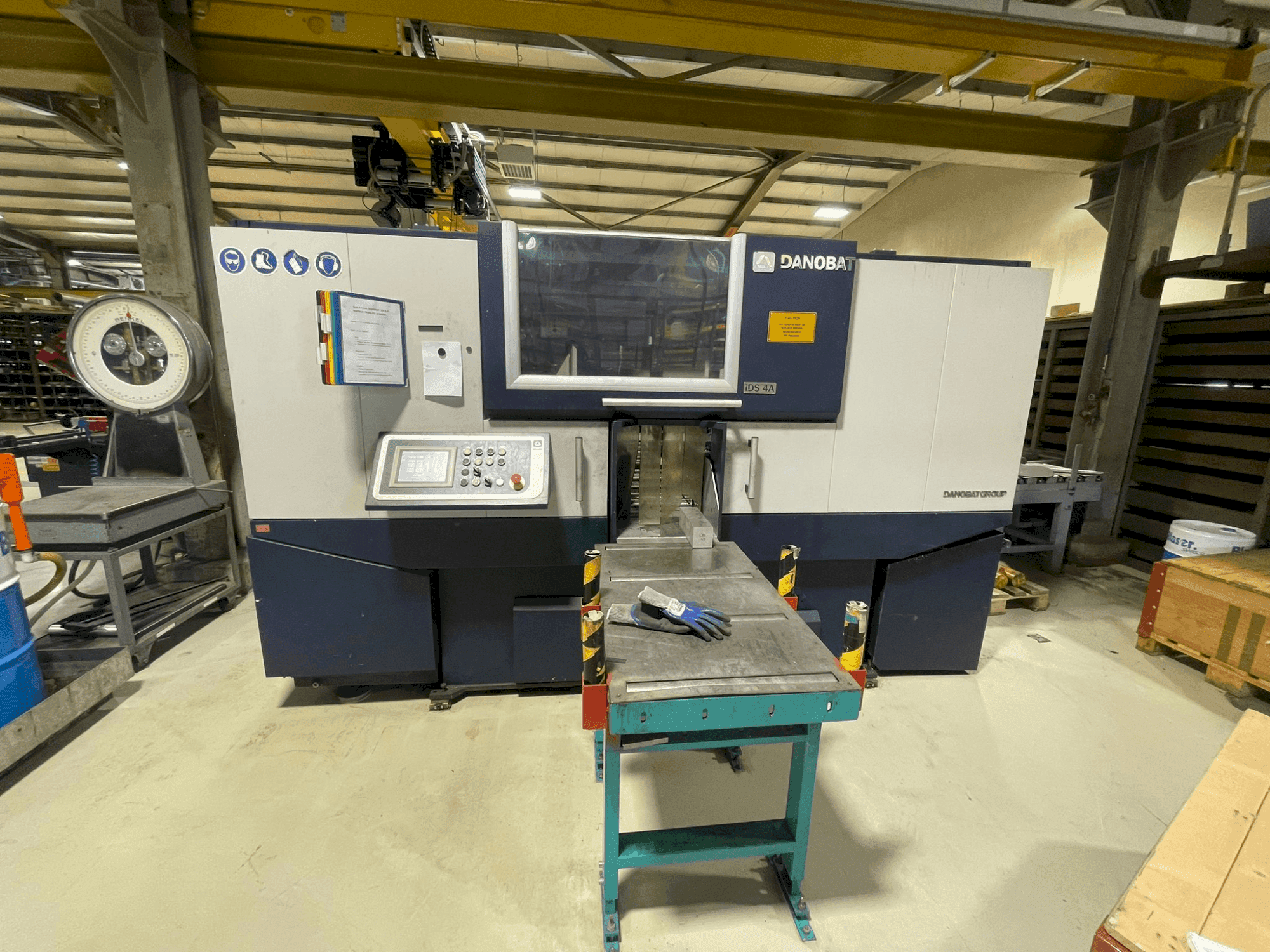

DANOBAT - IDS 4ADE-SAW-DAN-2014-00001

Additional Equipment

• - Automatic blade tensioning
• - Cutting deflection control

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Capacity of circular cut: 420 mm
  • - Capacity of rectangular cut: 420x420 mm
  • - Dimensions of saw blade: 5920x41x1. 3 mm
  • - Downfeed speed control
  • - Laser fast approach
  • - Nc different length
  • - Intelligent cutting system
  • - Power of main motor - blade turn: 5. 5 kw
  • - Total useful power: 8 kw
  • - Automatic feeding system
• Qualitative Machine Benefits:
  • - Height of work table: 800 mm
  • - Capacity of cooling tank: 100 l
  • - Capacity of hydraulic tank: 80 l
  • - Blade speeds: 15-124 m/min
  • - Power of motorized cooling pump: 0. 24 kw
  • - Hydraulic unit power: 1. 8 kw
  • - Power of cleaner brush motor: 0. 12 kw
  • - Power of swarf conveyor: 0. 09 kw

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
