Colgar PI 316/21 Bending Machine

Show in original language

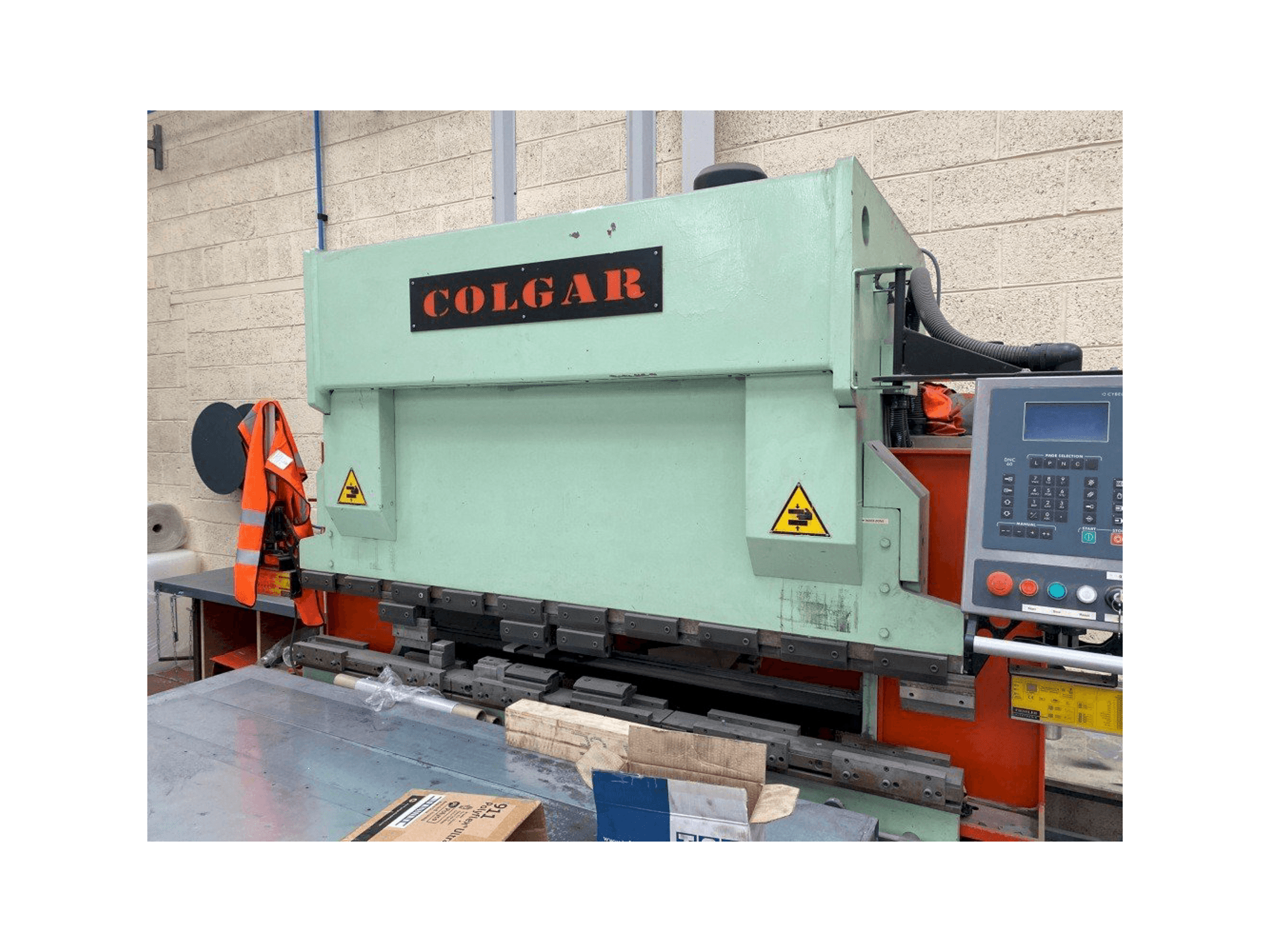

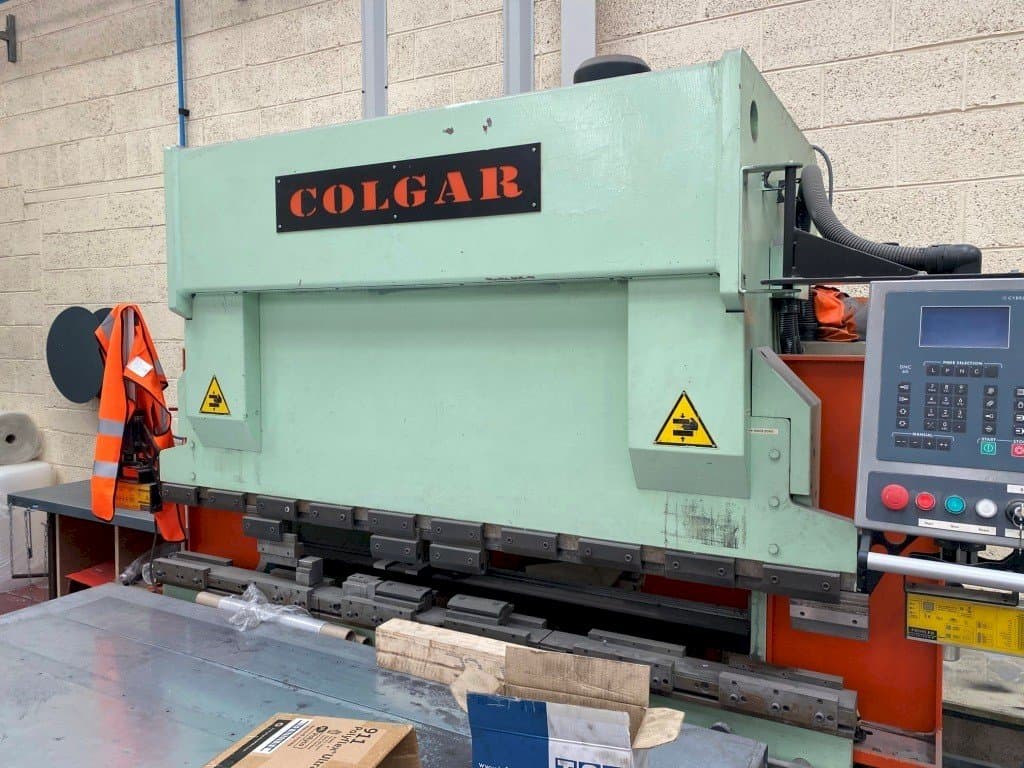

This Colgar PI 316/21 Bending Machine was built in Italy in the year 1999. It is equipped with a Cybelec DNC 60 control unit. This machine can works with a pressing force of 320 kN, and a bending length 2100 mm. It includes a full length of Eurostyle top tool, and a full length of EuroStyle Single Vee bottom tool.

Overview

brand: Colgar
year: 1999
MODEL: PI 316/21
application type: Bending
Location: Ireland
machine type: Hydraulic Press
availability: Sold
control unit brand: CYBELEC

Technical Information - Colgar PI 316/21

General Data

Measurements width: 2500 mm
Measurements depth: 1300 mm
Measurements height: 2150 mm
Machine weight: 2200 kg

Control Unit

Model: DNC 60
CNC main language: English
CNC language customizable: Yes
Brand: CYBELEC

Main drive

Pressing force: 320 kN
Bending length: 2100 mm

Workpiece

Workpiece x: 2100 mm

Max Material thickness

Steel: 5 mm

Media

Main electronic connection: 380 V

Additional Equipment

- Full Length of Eurostyle Top Tool
- Full Length of EuroStyle Single Vee Bottom Tool

Additional Information

Machine history

Material type: Mildsteel
Material thickness: 3 mm
End product: Electrical panels
Industries: Electrical panel builders

Machine Benefits

Technical Machine Benefits:
- - Back gauge with powered x & r axes. Manual z1 & z2 axes
- - 2 x back gauge fingers
- - Footpedal with emergency stop
- - Fiesler light guards
- - Working stroke: 20-100mm
- - Approach speed: 110mm/s
- - Working speed: 5-22mm/s
- - Return speed: 140mm/sec
- - Installed power: 5kw
Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
