BUFFALO - Micromill Challenger MM-1000DE-MIL-BUF-2015-00001

Name: BUFFALO Micromill Challenger MM-1000
Brand: BUFFALO
SKU: DE-MIL-BUF-2015-00001
Price: 19100 GBP
Availability: InStock

£ 19,100

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used BUFFALO Micromill Challenger MM-1000 | Machining

Show in original language

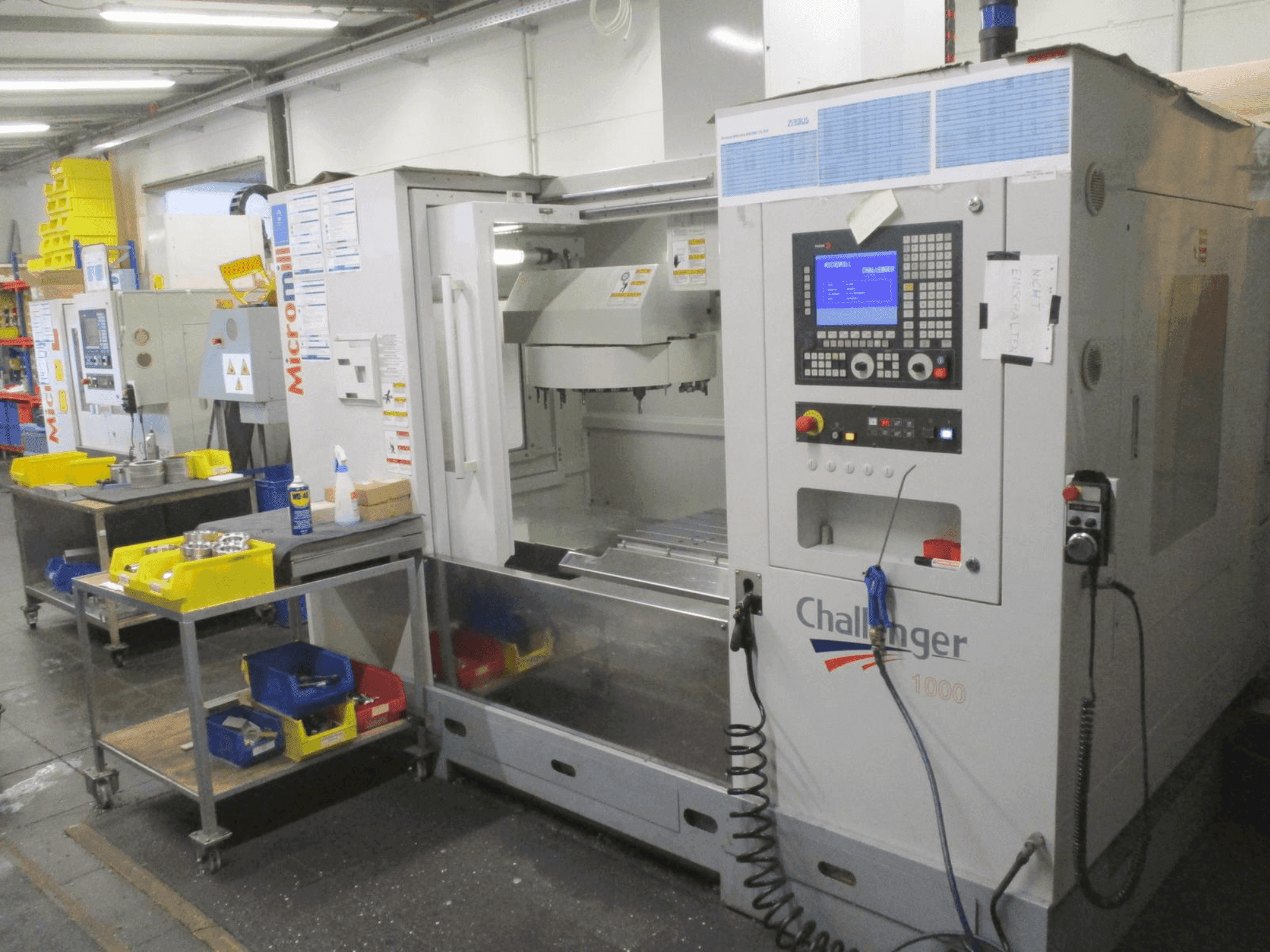

This 4-axis BUFFALO Micromill Challenger MM-1000 was manufactured in 2015. Ideal for precision machining, this vertical machining centre ensures reliable performance. Consider the opportunity to buy this BUFFALO Micromill Challenger MM-1000 vertical machining centre. Contact us for more information.

Overview

brand: BUFFALO
year: 2015
MODEL: Micromill Challenger MM-1000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - BUFFALO Micromill Challenger MM-1000

Main drive

Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 11/15 kW
Tool taper: ISO 40
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Table load: 800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Repeatability: +/-0. 01 mm
- - Positioning accuracy: 0. 01 / 300 mm
- - Cutting feed (x/y/z): 10 / 10 / 10 m/min
- - Dimensions: 1200 x 520 mm
- - Height: 870 mm
- - T-slot: 16 x 100 x 5 mm
- - Spindle drive: belt
- - Spindle center to z-axis cover: 595 mm
- - Distance from spindle nose to rotary table clamping surface: 100-650 mm

Extra information

- Axis Drive X-Axis Ball Screw: Ø40 x P12 x C3; Drive: Direct Y-Axis Ball Screw: Ø40 x P12 x C3; Drive: Direct Z-Axis Ball Screw: Ø40 x P12 x C3; Drive: Direct Guide X-Guide: Linear guide / 35 mm (ball); Distance: 360 mm Y-Guide: Linear guide / 35 mm (ball); Distance: 700 mm Z-Guide: Linear guide / 35 mm (ball); Distance: 400 mm Tools ATC (Automatic Tool Changer)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
