Beyeler RT 125 x 3100 Bending machine

Show in original language

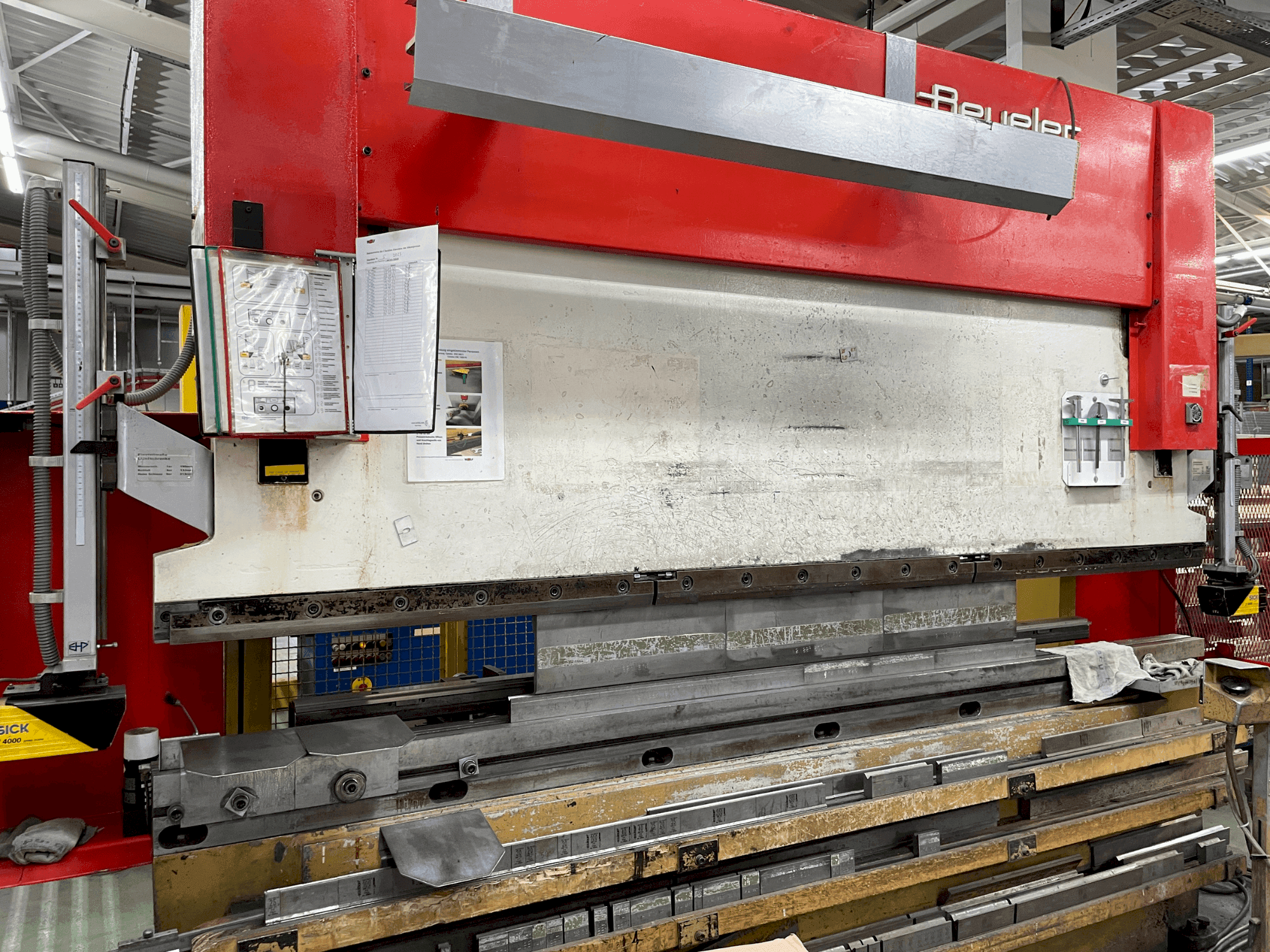

This Beyeler RT 125 x 3100 Bending machine was manufactured in the year 1985 in Switzerland and has 50000 production hours. It is equipped with a DNC70PS control unit and has 2 axis. The machine has a pressing force of 1250 kN and a bending length of 3100 mm.

Overview

brand: BEYELER
year: 1985
MODEL: RT 125 x 3100
production hours: 50000
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold

Technical Information - BEYELER RT 125 x 3100

General Data

Measurements width: 1750 mm
Measurements depth: 3400 mm
Measurements height: 2440 mm
Machine weight: 9500 kg

Main drive

Pressing force: 1250 kN
Bending length: 3100 mm
Stroke: 215 mm
Number of axis: 2

Additional Information

Extra information

- Control system: DNC70PS Working Parameters Pressing force 1250 kN Retraction force 60 kN Working length 3100 mm Distance between uprights 2600 mm Throat depth 305 mm Distance between lower and upper beam 526 mm Stroke 215 mm Distance floor-lower beam 828 mm Tool holder A Machine Parameters number of working cylinders 2 number of crowning cylinders 4 rapid traverse 100 mm/s working speed 7 mm/s retraction speed 90 mm/s holding time of the upper beam 0.1 s main motor power 7.5 kW oil filling 115 liters Backgauge max. adjustment speed 200 mm/s adjustment range 500 mm direct current motor 0.9 kW General Parameters lowering of the bottom beam -- mm floor lowering of the uprights -- mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
