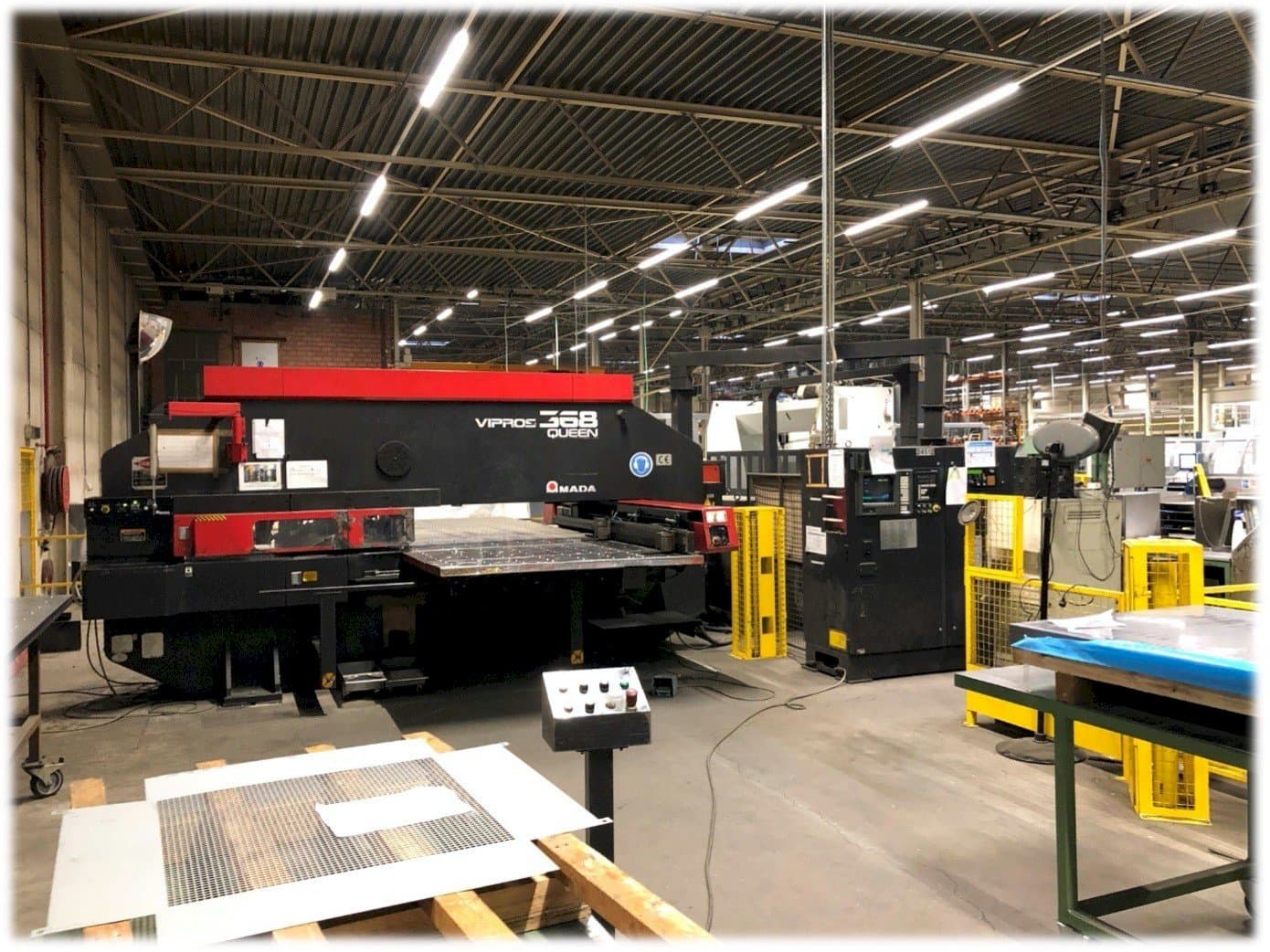

AMADA Vipros 368 Queen Punching Machine

Show in original language

This AMADA Vipros 368 Queen Punching Machine was built in the year 1998 in Japan. It has been working for only 5162 hours. This machine can operate with a punching force of 294 kN.

Overview

brand: AMADA
year: 1998
MODEL: Vipros 368 Queen
production hours: 5162
application type: Bending & Punching
Location: Belgium
machine type: CNC Punch Press
availability: Sold

Technical Information - AMADA Vipros 368 Queen

General Data

Measurements width: 4680 mm
Measurements depth: 4060 mm
Measurements height: 2310 mm
Machine weight: 14000 kg

Main drive

Pressing force: 294 kN

Additional Information

Machine history

Material type: Mild steel
Material thickness: 6. 35 mm

Machine Benefits

Technical Machine Benefits:
- - Press type: servo controlled hydraulic ram
- - Max sheet size: 1525 x 4000mm
- - Max. Material weight: 100kg
- - Axis speed (x, y): 82m/min
- - Turret speed (bi-directional): 30 rpm
- - Punching accuracy: ±0. 1mm
- - Ram stroke length: 40mm
- - Turret: no. Of stations: 45 stations: 24 x a (max. Dia. 12. 7mm), 12 x b (max. Dia. 31. 7mm), 2 x c (max. Dia. 50. 8mm), 1 x d (max. Dia. 88. 9mm), 2 x e (max. Dia. 114. 3mm)
- - Auto indexing: 2 x b (max dia 31. 7mm), 2 x c (max. Dia. 50. 8mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
