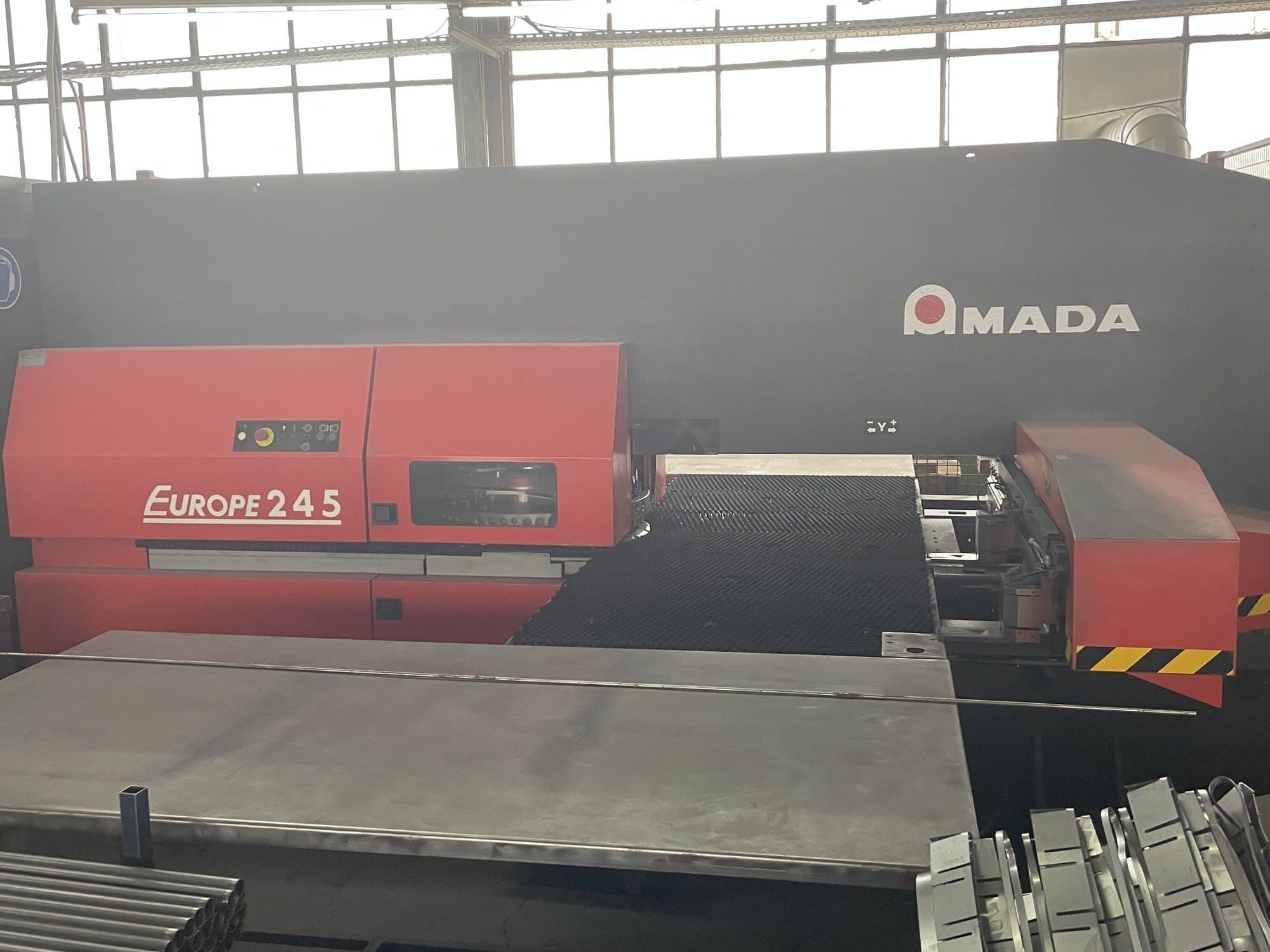

This AMADA Europe 245 Punching machine was manufactured in the year 2001 in France. It is equipped with a FANUC Series 18 i-P control unit. The machine has a punching force of 200 kN.
Overview
- brand: AMADA
- year: 2001
- MODEL: Europe 245
- application type: Bending & Punching
- Location: Germany
- machine type: CNC Punch Press
- availability: Sold
- control unit brand: Fanuc
Technical Information - AMADA Europe 245
General Data
- Machine weight: 10000 kg
Control Unit
- Brand: Fanuc
- Model: Series 18i-P
Main drive
- Punching force: 200 kN
Additional Information
- Technical Machine Benefits:
- - Max stroke: 1290 mm
- - Min separation distance: 1,3 m
- - Witdh guard area: 70 m
- - Max. Punching format without interception device and with head 31 stations : 1020 x 1290 (y-10; y1010 t2xx; y-50; y970 t3xx)
- - Max. Punched sheet size with intercepting device : 1020 x 2540 mm
- - Max. Punched sheet format with intercepting device + 1 turn (optional) : 1500 x 2540 mm
- - Max. Sheet thickness on the brush table : 3 mm
- - Max. Permissible weight on the table : 100 kg
- - Punching accuracy : +-0. 1 mm
- - Positioning accuracy : +-0. 07 mm
- Qualitative Machine Benefits:
- - Number of pneumatic clamps/grippers : 2
- - Number of simultaneously controlled axes : 3: x, y, c
- - Speed of the turret : 25 rpm
- - Number of strokes per minute, distance 25. 4 mm, cylinder stroke 6. 5 mm : 220 strokes/min.
- - Punching stroke, distance 1 mm, cylinder stroke 6. 5 mm : 480 strokes/min.
- - Minimum programmable step size: 0. 001 mm
- - Number of tool stations: 27, 3 of which are rotating
- - Max. Tool diameter : 88. 9 mm
- - Turning stations : 2x1 1/4"; 1x2"
- - Max. Sheet thickness for turning station : 3 mm, lower feed point : 4 programmable points work table : x=600, y=400 memory capacity : 64 (~63 programs) kb graphic display : 10,4" lcd stop time : 295 ms air pressure : 5 kg/cm2 (bar) air volume : 250 nl/mn oil volume : 160 l light curtain (3 beams) : standard in european countries installed power : 27 kw machine dimensions : l=4460 mm, l=2750 mm, h=2130 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
